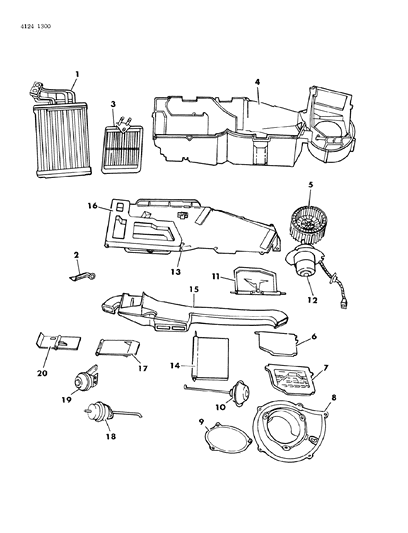

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT H,K
1984 Dodge Caravan Air Conditioner & Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    3503133
    TUBE, A/C Drain, Up to 6-1-84
    • TUBE, A/C Drain, Up to 6-1-84
  • 2
    3848827
    TUBE, A/C Drain, Up to 6-1-84
    • After 6-1-84
  • 4
    3848261
    HOUSING, w/STUD, A/C Evaporator
  • 6
    3848432
    COVER, Heater
  • 7
    3848267
    COVER, A/C Recirc
  • 8
    3848272
    COVER ASSY., A/C Motor
    • COVER ASSY., A/C Motor
  • 8
    3848273
    COVER ASSY., A/C Motor
    • COVER, A/C Motor
  • 10
    3848258
    ACTUATOR, A/C Fresh Air Door
  • 11
    3848370
    DOOR, A/C Fresh Air w/o Seals
  • 12
    4318116
    MOTOR, A/C Blower
  • 13
    3848263
    COVER, A/C Evap
  • 15
    3848257
    DUCT, A/C Heat Distr
  • 16
    3848266
    SEAL, A/C Evap Cover to Ducts
  • 17
    3848226
    DOOR, A/C Mode
  • 18
    3848259
    ACTUATOR, A/C Mode Door
  • 19
    3848260
    ACTUATOR, A/C Defr Door
  • 20
    6031147
    DOOR, Heater, Defr
    • NUT, A/C Defroster and Mode Door Shaft
      RETAINER, A/C Mode Defroster Door Shaft
    $1.55 $1.02
    1
    Add To Cart
  • 20
    3780508
    DOOR, Heater, Defr
    • HOSE, A/C Vacuum (serviced in roll)
    $35.85 $26.71
    1
    Add To Cart
  • 20
    3846756
    DOOR, Heater, Defr
    • SEAL, A/C Evap Coil to Housing Bottom
  • 20
    3847116
    DOOR, Heater, Defr
    • SEAL, A/C Evap Coil Header End
  • 20
    3848151
    DOOR, Heater, Defr
    • SEAL, A/C Evap Coil to Housing Hair Pin End
  • 20
    3848227
    DOOR, Heater, Defr
    • DOOR, Heater, Defr
  • 20
    3848251
    DOOR, Heater, Defr
    • BRACE, A/C Unit Support
  • 20
    3848252
    DOOR, Heater, Defr
    • RESISTOR, A/C Blower Motor, Up to 5-16-84
  • 20
    3848253
    DOOR, Heater, Defr
    • HOSE, A/C Vacuum
  • 20
    3848254
    DOOR, Heater, Defr
    • SEAL, A/C Core Tube to Dash
  • 20
    3848255
    DOOR, Heater, Defr
    • SEAL, A/C Header to Dash
  • 20
    3848838
    DOOR, Heater, Defr
    • SEAL, A/C Evap Coil to Header Tubes to Housing
  • 20
    3848878
    DOOR, Heater, Defr
    • LEVER, A/C Temp Door
  • 20
    3848997
    DOOR, Heater, Defr
    • After 5-16-84
  • 20
    4163735
    DOOR, Heater, Defr
    • SHAFT, A/C Defroster Mode Door
  • 20
    6028944
    DOOR, Heater, Defr
    • RETAINTER, A/C Drain Tube
  • 20 Dodge 6031694
    6031694
    DOOR, Heater, Defr
    • SCREW, w/WASHER, A/C Blower Motor Mounting
    $3.20 $2.19
    1
    Add To Cart
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge Caravan parts. Parts like Air Conditioner & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
