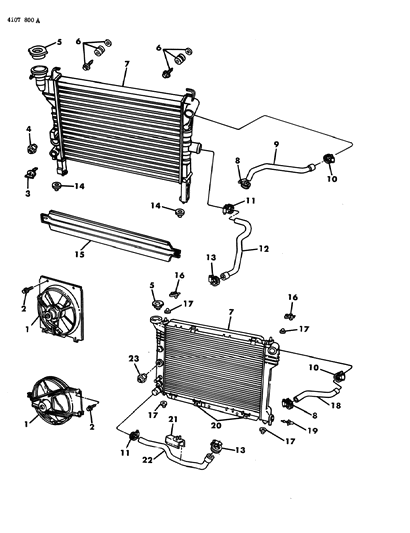

Diagram (1 of 1): COOLING RADIATOR AND RELATED PARTS M,Z

1984 Dodge Charger Radiator & Related Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3747999
FAN, MOTOR & SHROUD ASSY.
SENSOR (consists of:)
1
4240494
FAN, MOTOR & SHROUD ASSY.
- MOTOR (consists of:)
1
4266282
FAN, MOTOR & SHROUD ASSY.
- FAN (consists of:)
1
4266458
FAN, MOTOR & SHROUD ASSY.
- FAN (stamped 4266355 (optional w/4266655) consists of:)
1
4266462
FAN, MOTOR & SHROUD ASSY.
- FAN (consists of:)
1
4318107
FAN, MOTOR & SHROUD ASSY.
- MOTOR (stamped 4266355 (optional w/4266655) consists of:)
1
4318108
FAN, MOTOR & SHROUD ASSY.
- SHROUD (stamped 4266355 (optional w/4266655) consists of:)
1
4318109
FAN, MOTOR & SHROUD ASSY.
- MOTOR (consists of:)
1
4318110
FAN, MOTOR & SHROUD ASSY.
- SHROUD (consists of:)
1
4339437
FAN, MOTOR & SHROUD ASSY.
- SHROUD (consists of:)
1
6500377
FAN, MOTOR & SHROUD ASSY.
- RETAINER (consists of:)
  RETAINER (stamped 4266355 (optional w/4266655) consists of:)

2
6501013
SCREW w/WASHER

3
4266728
DRAINCOCK

4
4221445
SWITCH, Radiator Temp. Fan
SWITCH, Radiator Temp. Fan
4
4221446
SWITCH, Radiator Temp. Fan
- GASKET, Radiator Temp. Fan Switch

5
3781830
CAP, Radiator

6
4266418
ISOLATOR, Upper Mtg.
- Require Quantity: 2

7
4266503
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
stamped 4266503 - 2.2L Eng. w/(S/C - EDE) w/Air Cond. or w/Max. Cooling - Auto. Trans. - up to 12-14-83
stamped 4266503 - 2.2L Eng. w/(S/C - EDE) w/o Air Cond. w/o Max. Cooling - Auto. Trans. - up to 12-14-83
Fitting Vehicle Options: 44, S-24
7
4266526
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
- stamped 4266526 - 2.2L Eng. w/(S/C - EDE) w/Air Cond. or w/Max. Cooling - Man. Trans.
  stamped 4266526 - 2.2L Eng. w/(S/C - EDJ) w/o Air Cond. w/o Max. Cooling - Man. Trans.
- Fitting Vehicle Options: 44, EH-44, HP-24
7
4266527
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
- stamped 4266527 - 2.2L Eng. w/(S/C - EDE) w/Air Cond. or w/Max. Cooling - Auto. Trans. - after 12-14-83
  stamped 4266527 - 2.2L Eng. w/(S/C - EDE) w/o Air Cond. or Max. Cooling - Auto Trans. - after 12-14-83
- Fitting Vehicle Options: S-24
7
4266528
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
- stamped 4266528 - 2.2L Eng. w/(S/C - EDE) w/Air Cond. or w/Max. Cooling - Man. Trans.
  stamped 4266528 - 2.2L Eng. w/(S/C - EDE, EDJ) w/Air Cond. or w/Max. Cooling - Man. Trans.
  stamped 4266528 - 2.2L Eng. w/(S/C - EDJ) - Man. Trans.
  stamped 4266528 - 2.2L Eng. w/(S/C - EDJ) w/Air Cond. or w/Max. Cooling - Man. Trans.
- Fitting Vehicle Options: 44, HP-24,28, S-24, S-28
7
4266532
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
- stamped 4266531 - 2.2L Eng. w/(S/C - EDE) w/o Air Cond. w/o Max. Cooling - Auto. Trans.
  stamped 4266532 - 2.2L Eng. w/(S/C - EDE) w/o Air Cond. w/o Max. Cooling - Man. Trans.
- Fitting Vehicle Options: EHP, S-28
7
4266534
RADIATOR (Includes #'s 3,4,5,6,14,15,16,17,19,20,23)
- stamped 4266534 - 1.6L Eng.

8
6032229
CLAMP, Inlet Hose - Eng. Side

9
4266345
HOSE, Inlet
1.6L Eng. (H0061309)
9
4266346
HOSE, Inlet
- 2.2L Eng. (H0061284)
9
H0061284
HOSE, Inlet
- Mopar V-Line Alternative Part
9
H0061309
HOSE, Inlet
- Mopar V-Line Alternative Part

10
3683824
CLAMP, Inlet Hose - Rad. Side

11

2448763
CLAMP, Outlet Hose - Rad. Side
$4.75 $3.23
1
Add To Cart

12
4266723
HOSE, Outlet
1.6L Eng. (H0061310)
12
4266739
HOSE, Outlet
- 2.2L Eng. (H0061283)
12
H0061283
HOSE, Outlet
- Mopar V-Line Alternative Part
12
H0061310
HOSE, Outlet
- Mopar V-Line Alternative Part

13
6032277
CLAMP, Outlet Hose - Eng. Side
- Replaced By: 55037660AA
$12.75 $8.78
1
Add To Cart

14
4266419
ISOLATOR, Lower Mtg.
- Require Quantity: 2

15
4266173
SHIELD, Radiator Lower Air - Man. Trans.

16
4140566
BRACKET, Radiator Upper Mtg.
Right
16
4140567
BRACKET, Radiator Upper Mtg.
- Left

17
4140427
ISOLATOR, Radiator Mtg.
- Require Quantity: 4

18
4266346
HOSE, Inlet (H0061284)
HOSE, Inlet (H0061284)
18
H0061284
HOSE, Inlet (H0061284)
- Mopar V-Line Alternative Part

19
1686198
DRAINCOCK

20
4140538
CLIP, Spring - Bottom Shroud Mtg.
Require Quantity: 2
20
4266212
CLIP, Spring - Bottom Shroud Mtg.
- CLIP, Spring - Bottom Shroud Mtg.
- Require Quantity: 2

21
4140849
CLIP, Outlet Hose

22
4266262
HOSE, Outlet 2.2L Eng. (H0061154)
HOSE, Outlet 2.2L Eng. (H0061154)
22
H0061154
HOSE, Outlet 2.2L Eng. (H0061154)
- Mopar V-Line Alternative Part

23
5209923
SWITCH, Radiator Temp. Fan
SWITCH, Radiator Temp. Fan
23
6031903
SWITCH, Radiator Temp. Fan
- BUSHING, Fan Switch

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge Charger parts. Parts like Radiator & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
