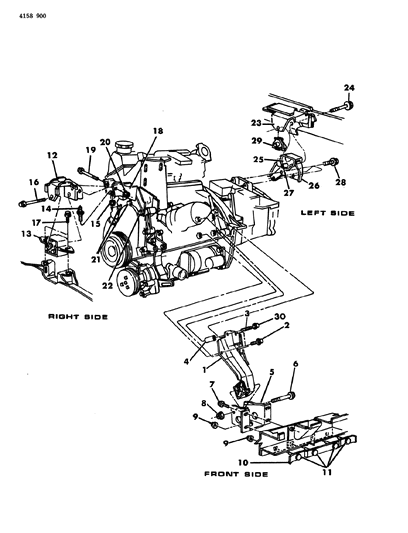

Diagram (1 of 1): ENGINE, 4 CYLINDER ENGINE MOUTINGS 4 CYLINDER ENG. 1.6 L, M,Z
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4269354
INSULATOR, Engine Support Front
2
6500157SCREW W/WASHER, Front Engine Support To Block
3
6500825
STUD, Front Engine Support To Block
4
4273526SPACER, Front Engine Support To Block- SPACER, Engine Support Bracket
4
6032258SPACER, Front Engine Support To Block- SPACER, Front Engine Support To Block
5
4270120
BRACKET, Front Side Rail Front Crossmember Engine Mounting Front
6
4271953
SCREW w/Washer, Bracket to Insulater Engine Front Support
7
6500535SCREW w/Washer, Bracket to Front Side Rail Crossmember Reinforcement
8
6100053
NUT, Bracket to Insulator Eng. Front Support Screw
10
4296258
TIE PLATE, Front Crossmember
11
6500233SCREW, Front Crossmember Tie Plate
12
4295264
BRACKET, Eng. Support Insulator, Right
14
4295274
STUD, Eng. Support Insulator Bracket to Eng. Mounting, Right and Power Strg. Pump Mounting Bracket
15
6500164
NUT, Eng. Bracket Right and Power Strg. Pump Bracket Stud
16
6500839
SCREW w/Washer, Eng. Support Insulater and Bracket, Right
17
6500555SCREW w/Washer, Bushing to Side Rail Bracket, Right
18
4273203
BRACKET, Eng. Mounting Right and Power Strg. Pump Mounting
19
6500983
BOLT, Bracket to Bracket Right and Power Strg. Pump Mounting Bracket
20
6100519
NUT, Bracket Right and Power Strg. Pump Mounting Bracket Bolt
21
6500192SCREW w/Washer, Bracket Mounting
22
4273522
SCREW w/Washer, Bracket Mounting
24
6500840
SCREW w/Washer, Insulator to Frame Side Rail Bracket, Left
25
4295237
BUSHING, Eng. Support Insulator Left
26
4295254BRACKET, Eng. Support Insulator Left, w/Man. Trans. 26
4295256BRACKET, Eng. Support Insulator Left, w/Man. Trans.- BRACKET, Eng. Support Insulator Left, w/Man. Trans.
28
6500495SCREW w/Washer, Eng. Support Insulator Bracket to Trans. Case, Left
29
6500833
NUT, Bushing to Insulator Bracket Screw
30
6100053
NUT w/Washer, Front Eng. Support Bracket to Eng. Block Stud
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge Charger parts. Parts like Engine Mooting are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
