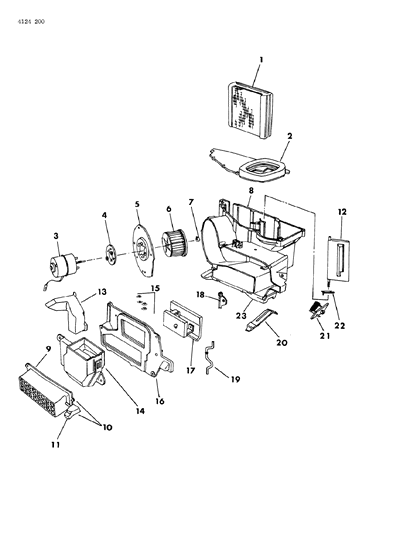

Diagram (1 of 1): HEATER AND AIR CONDITIONING HEATER UNIT M,Z
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4240448HeaterCORE and SEAL PACKAGE, Heater
3
4057933MOTOR, Heater Blower 3
4274936MOTOR, Heater Blower
4
2484429HeaterGASKET, Heater Mlower Motor Mtg.
6
5210001HeaterWHEEL, Heater Blower Motor
9
5210169HeaterDUCT, Heater Air Handling
10
5210168HeaterDUCT, Knob and Door Heater Air Handling
11
5210188HeaterKNOB, Heater Door Vent Control
12
5210140HeaterDOOR and SEAL, Heater Temp
13
5210251HeaterDUCT, Heater Outlet, Left
14
5210040HeaterADAPTER, Heater Deforster Duct
15
6006065HeaterWASHER, Heater Blower Motor Mounting
17
5210215HeaterDOOR and SEAL, Heater Mode
21
5210365HeaterRESISTOR, Heater Blower Motor
23
5210193HeaterDUCT, Heater Distribution
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge Charger parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
