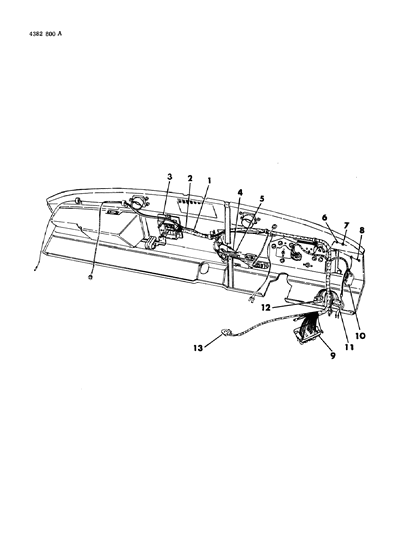

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING D 1,2,3,4,5,6,7,8
1984 Dodge D150 Instrument Panel Wiring Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4114733
    WIRING, Instrument Panel
    • BRACKET, Door Lock Wiring
  • 1
    4162482
    WIRING, Instrument Panel
    • Door Locks
  • 1
    4162984
    WIRING, Instrument Panel
    • Air Conditioning and Heater, 1984
  • 1
    4162988
    WIRING, Instrument Panel
    • Snow Fiter
    • Fitting Vehicle Options: D 5,8
  • 1
    4162993
    WIRING, Instrument Panel
    • Deluxe Heater (Bi-Level) 1984
  • 1
    4162996
    WIRING, Instrument Panel
    • Heater Control Blower Switch, 1984
  • 1
    4163086
    WIRING, Instrument Panel
    • 1984
  • 1
    4163279
    WIRING, Instrument Panel
    • 1985
  • 1
    4163280
    WIRING, Instrument Panel
    • 1985
  • 1
    4163281
    WIRING, Instrument Panel
    • 1985
  • 1
    4163284
    WIRING, Instrument Panel
    • Snow Fiter
    • Fitting Vehicle Options: Exc. D 5,8
  • 1
    4362178
    WIRING, Instrument Panel
    • Up to 1-21-85
  • 1
    4362269
    WIRING, Instrument Panel
    • After 1-21-85
  • 3
    4162124
    BLOCK, Fuse
  • 4
    274020
    BULB
    • Require Quantity: 2
  • 7
    120614
    NUT
    • Require Quantity: 2
  • 9
    2958775
    CONNECTOR
  • 10
    2258102
    INSULATOR, H/Lamp Switch
    • INSULATOR, H/Lamp Switch
  • 10
    2983409
    INSULATOR, H/Lamp Switch
    • TERMINAL, Ignition Switch
    • Require Quantity: 8
  • 12
    2983403
    INSULATOR
  • 13
    106653
    INSULATOR, Dimmer Switch
    • 20 Amp. SFE (FUSE, Glass Type)
  • 13
    1540427
    INSULATOR, Dimmer Switch
    • CIRCUIT BREAKER (FUSE, Blade Type)
  • 13
    1881938
    INSULATOR, Dimmer Switch
    • SWITCH, Foot Dimmer (FUSE, Blade Type)
  • 13
    2932834
    INSULATOR, Dimmer Switch
    • RELAY w/BRACKET, Electric Window (FUSE, Blade Type)
  • 13
    3513696
    INSULATOR, Dimmer Switch
    • INSULATOR, Dimmer Switch
  • 13
    3746516
    INSULATOR, Dimmer Switch
    • SOCKET, Seat Belt Warning Indicator Lamp
  • 13
    3837161
    INSULATOR, Dimmer Switch
    • FLASHER, Turn Signal and Emergency Warning, 2 Lamp
  • 13
    4049059
    INSULATOR, Dimmer Switch
    • BUZZER (FUSE, Blade Type)
  • 13
    4124757
    INSULATOR, Dimmer Switch
    • TERMINAL and INSULATOR PACKAGE
  • 13
    6101131
    INSULATOR, Dimmer Switch
    • 3 Amp. (FUSE, Blade Type)
  • 13
    6101133
    INSULATOR, Dimmer Switch
    • 5 Amp. (FUSE, Blade Type)
  • 13
    Dodge 6101135
    6101135
    INSULATOR, Dimmer Switch
    • 10 Amp. (FUSE, Blade Type)
  • 13
    Dodge 6101136
    6101136
    INSULATOR, Dimmer Switch
    • 15 Amp. (FUSE, Blade Type)
  • 13
    Dodge 6101137
    6101137
    INSULATOR, Dimmer Switch
    • 20 Amp. (FUSE, Blade Type)
  • 13
    6101138
    INSULATOR, Dimmer Switch
    • 25 Amp. (FUSE, Blade Type)
  • 13
    6101139
    INSULATOR, Dimmer Switch
    • 30 Amp. (FUSE, Blade Type)
  • 13
    9426331
    INSULATOR, Dimmer Switch
    • 30 Amp. AGC (FUSE, Glass Type)
  • 13
    9426868
    INSULATOR, Dimmer Switch
    • 5 Amp. (FUSE, Glass Type)
