Axle, Front fit your 1984 Dodge D150
Currently shopping for
1984 Dodge D150
Change VehicleCategories Close X
Currently selected
Front Suspension & Drive
Other Categories
Automatic Transmission
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Sheet Metal Except Doors
Brakes, Parking
Brakes, Service
Clutch
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Engine
Frame & Bumpers
Fuel
Heater & Air Conditioning
Manual Transmission
Propeller Shaft And Universal Joint
Rear Axle
Rear Suspension
Steering
Wheels
Wiper & Washers And Cylinder & Keys
Parts Questions
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

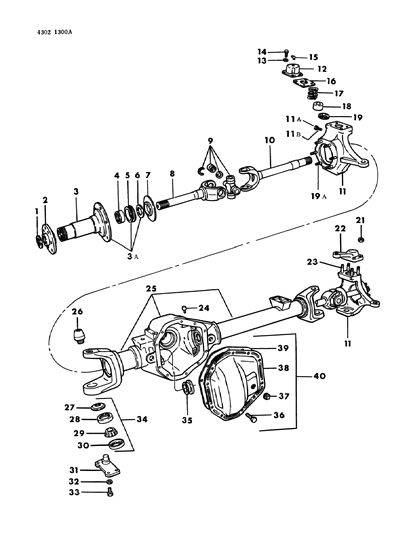

- 1.FRT.SUSPENSION & DRIVE AXLE, FRONT - 1984 SPICER 44F-BJ,3500 LB. D5,6,7,8
- 2.FRT.SUSPENSION & DRIVE AXLE, FRONT SPICER 60-4500 LB. D7
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 16030766
RING, Drive Flange Retaining- Require Quantity: 2
- 23894148
FLANGE, Drive Shaft- Require Quantity: 2
- 2 &
$7.80 $6.751
- 3
- 3 &3634269
NUT, Knuckle Socket, Upper- Require Quantity: 2
- 44137283
BEARING, Refer To Item 43-In 4086641 Kit
- 6
- 6 &3634268
RING, Socket Adjusting
- 7
- 83894165
SHAFT, Front Axle Drive-Outer- Require Quantity: 2
- 83898449
VENT, Axle Breather
- 93837585
CROSS PACKAGE, Frt. Axle Drive Shaft- Require Quantity: 2
- 94210962
HOUSING & TUBE- HOUSING & TUBE
- Fitting Vehicle Options: D6,7
- 94213215
HOUSING & TUBE- HOUSING & TUBE
- Fitting Vehicle Options: D5,8
- 10
- 103894167
SHAFT, Frt. Axle Drive-Inner Right- SHAFT, Frt. Axle Drive-Inner Left
- 113894122
KNUCKLE, Front Axle Steering-Right- KNUCKLE, Front Axle Steering-Right
- 113894123
KNUCKLE, Front Axle Steering-Right- KNUCKLE, Front Axle Steering-Left
- 11A3634979
SCREW, Steering Knuckle Stop- Require Quantity: 2
- 123894140
CAP, w/o Arm, Upper
- 133894142
LOCKWASHER, Upper Cap Screw- Require Quantity: 4
- 13 &3634270
NUT, Knuckle Arm Stud- Require Quantity: 2
- 143894961
SCREW, Upper Cap-Right- Require Quantity: 4
- 14 &3634278
STUD, Knuckle Arm- Require Quantity: 2
- 153894130
FITTING, Grease- Require Quantity: 4
- 15 &3634277
ADAPTER, Knuckle Arm Stud- Require Quantity: 2
- 16
- 173894136
SPRING, King Pin Compression- SPRING, King Pin Compression
- Require Quantity: 2
- Package Quantity: 1
- 174115852
SPRING, King Pin Compression- RETAINER, King Pin Compression Spring
- Require Quantity: 2
- 183898449
BREATHER, Diff. Carrier Cover
- 183894137
BUSHING, King Pin Upper- Require Quantity: 2
- 19
- 19A4032086
BOLT, Front Axle Steering Knuckle- Require Quantity: 12
- 20 &
$5.90 $3.971
- 211795574
NUT, Upper Cap Arm Stud- Require Quantity: 4
- 223894129
ARM & CAP, Strg. Knuckle-Upper
- 22 &3634266
RETAINER, Socket, Lower- Require Quantity: 2
- 23 &4210520
KNUCKLE, Strg. Right, (Serviced In Item D)- KNUCKLE, Steering, Right
- Fitting Vehicle Options: D6,7
- 23 &4219002
KNUCKLE, Strg. Right, (Serviced In Item D)- KNUCKLE w/STUD, Steering, Left
- Fitting Vehicle Options: D6,7
- 23 &4219003
KNUCKLE, Strg. Right, (Serviced In Item D)- KNUCKLE w/STUD, Steering, Left
- Fitting Vehicle Options: D5,8
- 243893992
SHAFT, Drive-Inner-Right- SHAFT, Drive-Inner-Right
- Fitting Vehicle Options: D6,7
- 243893993
SHAFT, Drive-Inner-Right- SHAFT, Drive-Inner-Left
- Fitting Vehicle Options: D6,7
- 24
- 244210957
SHAFT, Drive-Inner-Right- SHAFT, Drive-Inner-Left
- Fitting Vehicle Options: D5,8
- 243898449
VENT, Front Axle Hsg. Breather
- 253744918
CROSS PACKAGE, U/Joint
- 253894110
HOUSING AND TUBE
- 26
$23.34 $18.341
- 264210959
SLINGER, Drive Shaft- Require Quantity: 2
- 27
- 284210530
SEAL, Spindle Oil- Require Quantity: 2
- 293732174
SPACER, Bearing Spindle- Require Quantity: 2
- 303894147
SEAL, Lower - In Item 34
- 31
- 313865307
SPINDLE, Frt. Wheel-(Spindle Only)- Require Quantity: 12
- 314210524
SPINDLE, Frt. Wheel-(Spindle Only)- SPINDLE, Frt. Wheel-(Spindle Only)
- 31
4210527
SPINDLE, Frt. Wheel-(Spindle Only)- NUT,Spindle & Splash Shield to Knuckle Bolt
- Require Quantity: 12
- Package Quantity: 1
- 314210528
SPINDLE, Frt. Wheel-(Spindle Only)- WASHER,Spindle & Splash Shield to Knuckle Bolt
- Require Quantity: 12
- 323894142
LOCKWASHER, Lower Cap Screw- Require Quantity: 12
- 321791668
NUT, Tie Rod Socket- Require Quantity: 2
- 33$44.60 $33.181
- 333894141
SCREW, Lower Cap- Require Quantity: 12
- 34
- 344210963
SPINDLE ASSY., Frt. Wheel Bearing- SPINDLE ASSY., Frt. Wheel Bearing
- Fitting Vehicle Options: D5,6,7,8
- 344219121
SPINDLE ASSY., Frt. Wheel Bearing- SPINDLE KIT, Frt.Wheel Brg. (BEARING, Needle (1))
- 353894121
SEAL, Drive Shaft Oil, Inner- SEAL, Drive Shaft Oil, Outer
- Require Quantity: 2
- Package Quantity: 1
- 353894131
SEAL, Drive Shaft Oil, Inner- SEAL, Drive Shaft Oil, Inner
- Require Quantity: 2
- Package Quantity: 1
- 36
- 393634985
GASKET, Diff. Cover
- 404219104
COVER KIT, Differential Carrier
- A
- B3894977
ARM KIT, Steering Knuckle
- C4210964
COVER KIT, Diff. Carrier
- D4210535
KNUCKLE KIT, Steering - Right (Comp. Not Avail.)- KNUCKLE KIT, Steering - Right (Comp. Not Avail.)
- Fitting Vehicle Options: D6,7
- D4210965
KNUCKLE KIT, Steering - Right (Comp. Not Avail.)- KNUCKLE KIT, Steering - Right (Comp. Not Avail.)
- Fitting Vehicle Options: D5,8
- D4210966
KNUCKLE KIT, Steering - Right (Comp. Not Avail.)- KNUCKLE KIT, Steering - Left (Comp. Not Avail.)
- Fitting Vehicle Options: D5,8
- D4219043
KNUCKLE KIT, Steering - Right (Comp. Not Avail.)- KNUCKLE KIT, Steering - Left (Comp. Not Avail.)
- Fitting Vehicle Options: D6,7
- 4086640
SPINDLE KIT, Wheel Bearing- SPINDLE KIT, Wheel Bearing
- 4086641
SPINDLE KIT, Wheel Bearing- BEARING AND SEAL KIT, Front Wheel (3894121 SEAL, Drive Shaft Oil (1))
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge D150 parts. Parts like Axle, Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
