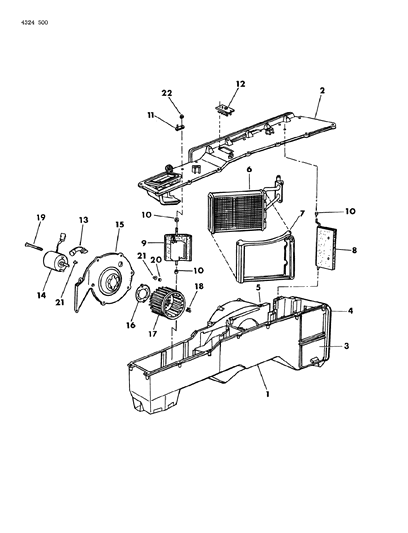

Diagram (1 of 1): HEATER AND AIR CONDITIONING HEATER UNIT D MODELS
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4163654Cover w/Seal, 1984 2
4163659Cover w/Seal, 1984- SEAL, Heater Cover to Housing Inbrd.
2
4163661Cover w/Seal, 1984- SEAL, Heater Cover to Housing Outbrd.
2
4163691Cover w/Seal, 1984- SEAL, Htr. Cover to Hsg. Frt.
2
4261109Cover w/Seal, 1984 2
4261110Cover w/Seal, 1984- COVER, Heater Housing, Part., 1985
4
4163653
Seal,Housing to side cowl
5
4163652
Seal,Housing to side dash
6
4163667Heater Core- SEAL, Heater Core Tube to Housing
6
8
4163673Door w/seal,air blend 8
4163681Door w/seal,air blend- Door w/Seal, Heater Mode Mld.
9
4163680
DEFLECTOR Mode Door
4114087Lever w/pin,mode door 11
4163714Lever w/pin,mode door- LEVER, Htr. Shut off Door
12
4163688Resister, Heater, 1984 12
4261050Resister, Heater, 1984
14
4163690Motor, Blower- SEAL, Htr. Mtr. Back Plate to Hsg.
15
4163663
Plate, Blower Mounting
16
2485429
Adapter, Blower Motor
21
4055018
INSULATOR, Heater Motor
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge D150 parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
