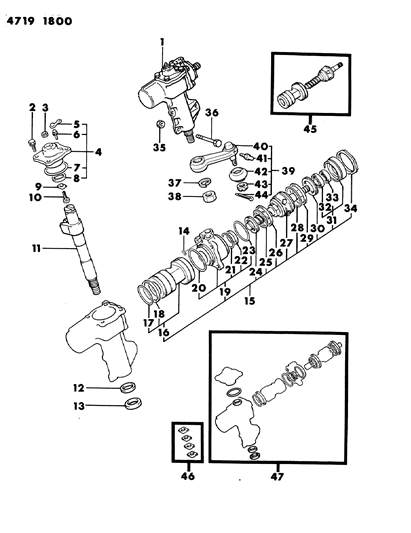

Diagram (1 of 1): STEERING GEAR BOX, POWER STEERING 27 4WD - POWER RAM

1984 Dodge Ram 50 Gear Box, Power Steering Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MB192981
BOX ASSY., Power Steering (Up to Approx. 4-15-84)
BOX ASSY., Power Steering (Up to Approx. 4-15-84)
1
MB351201
BOX ASSY., Power Steering (Up to Approx. 4-15-84)
- (After 4-15-84)

2
MB166072
BOLT, w/Washer
- Require Quantity: 8

3
MF431862
NUT, Large (10)

4
MB243820
COVER ASSY., Side (Up To Approx. 4-15-84)
COVER ASSY., Side (Up To Approx. 4-15-84)
4
MB351212
COVER ASSY., Side (Up To Approx. 4-15-84)
- (After 4-15-84)

5
MB076193
CAP, Bleeder

6
MB076192
PLUG, Bleeder

7
MB243822
O-RING

8
MB166083
U-PACKING (Up To Approx. 4-15-84)
U-PACKING (Up To Approx. 4-15-84)
8
MB350907
U-PACKING (Up To Approx. 4-15-84)
- (After 4-15-84)

10
MB243819
BOLT, Adjusting

11
MB243818
SHAFT, Cross (Up To Approx. 4-15-84)
SHAFT, Cross (Up To Approx. 4-15-84)
11
MB351209
SHAFT, Cross (Up To Approx. 4-15-84)
- (After 4-15-84)

12
MB166083
GASKET (Up To Approx. 4-15-84)
GASKET (Up To Approx. 4-15-84)
12
MB350907
GASKET (Up To Approx. 4-15-84)
- (After 4-15-84)

13
MB166084
SEAL, Dust (Up To Approx. 4-15-84)
SEAL, Dust (Up To Approx. 4-15-84)
13
MB350906
SEAL, Dust (Up To Approx. 4-15-84)
- (After 4-15-84)

15
MB243850
SCREW UNIT, Acme

19
MB243813
HOUSING ASSY., Valve

24
MB166113
BEARING, Thrust Needle

28
MB166101
O-RING

29
MB166102
RING, Seal

30
MB166112
BEARING, Thrust Needle

31
MB166092
COVER ASSY., Top

32
MB166193
BEARING, Ball

33
MB166194
OIL SEAL

34
MB166114
NUT, Lock

35
MS440002
NUT, Self Locking (10)
- Require Quantity: 3
- Package Quantity: 1
$2.95 $2.02
1
Add To Cart

36
MB166732
BOLT, Gear Box
- Require Quantity: 2

37
MF450411
WASHER, Spring (20)

38
MF430847
NUT, Jam (20)

39
MB241168
PITMAN ARM KIT (Up To Approx. 4-15-84) (Hole Dia. 1 1/16")
PITMAN ARM KIT (Up To Approx. 4-15-84) (Hole Dia. 1 1/16")
39
MB351165
PITMAN ARM KIT (Up To Approx. 4-15-84) (Hole Dia. 1 1/16")
- (After 4-15-84)(Hole Dia. 1 3/16")

41
MF524001
NIPPLE, Grease (6)
$1.38 $0.84
1
Add To Cart

42
MA123304
COVER, Dust Tie Rod End

43
MB243020
NUT, Slotted (12)
$4.39 $2.69
1
Add To Cart

44
MF472069
PIN, Split (3x25)

45
MB243851
SCREW KIT, Acme

46
MB185512
SPACER SET, Adjusting

47
MB243832
SEAL KIT, Gear Box (Up To Approx. 4-15-84)
SEAL KIT, Gear Box (Up To Approx. 4-15-84)
47
MB351216
SEAL KIT, Gear Box (Up To Approx. 4-15-84)
- (After 4-15-84)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge Ram 50 parts. Parts like Gear Box, Power Steering are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: , 4 Cyl 2.4L. Transmission: 4-Speed Manual Transmission, Automatic Transmission, Manual Transmission.
