2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

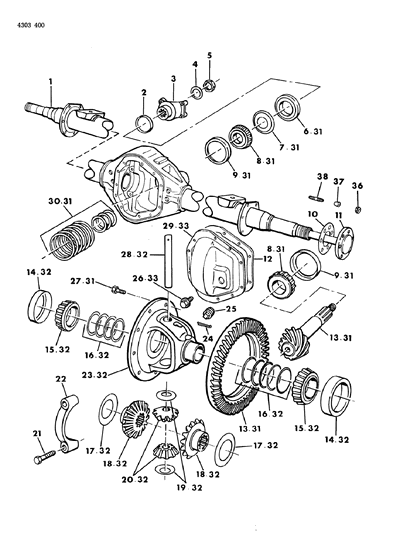

- 1.REAR AXLE AXLE, REAR (WITH TRAC-LOK) SPICER-60-5500,5800,6200 LB. D-1,2,3,6,7 B-3

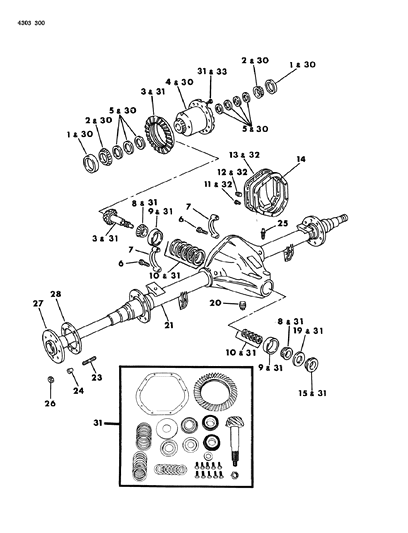

- 2.REAR AXLE AXLE, REAR (WITHOUT TRAC-LOK) SPICER-60-5500,5800,6200 LB. D-12367-B3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1$19.82 $15.341
- 1$0.00
- 14137786
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/5500 Lb. Axle After 9/1/83
- Fitting Vehicle Options: D
- 14137787
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/4.10 Ratio After 4/2/84
w/5500 Lb. Axle w/3.54 Ratio 1985 - Fitting Vehicle Options: B3
- 14137790
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/5800 Lb. Axle After 9/1/83
- Fitting Vehicle Options: D
- 14213204
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/6200 Lb. Axle, H.D.
- Fitting Vehicle Options: B3
- 14213205
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/4.10 Ratio Up to 4/2/84
w/5500 Lb. Axle w/3.54 Ratio 1984
w/5500 Lb. w/Offset Diff.& Single Wheels - Fitting Vehicle Options: B3
- 14213209
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83
- Fitting Vehicle Options: D
- 14213212
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/6200 Lb. Axle, H.D.
- Fitting Vehicle Options: D
- 14269133
HOUSING, Rear Axle w/5500 Lb. Up to 9/1/83- w/5800 Lb. Axle Up to 9/1/83
- Fitting Vehicle Options: D
- 2$42.69 $33.041
- 32952469
GEAR & PINION SET, 3.55 Ratio- SLINGER, Rr. Axle Drive Pinion
- 33893660
GEAR & PINION SET, 3.55 Ratio- GEAR & PINION SET, 3.55 Ratio
- Fitting Vehicle Options: B3
- 43893661
DIFFERENTIAL, (Consists of CASE, GEARS, PINIONS, DISCS and PLATES)
- 51795152
SHIM, .003- SHIM, .003
- 51795153
SHIM, .003- .005
- 64137283
SEAL, Drive Pinion Oil- SEAL, Drive Pinion Oil
- 64137768
SEAL, Drive Pinion Oil- SPACER, Pinion Bearing (Not Shown)
- 71795193
SLINGER, Pinion Oil Seal, Outer
- 8$45.88 $35.501
- 8
- 8$45.88 $35.501
- 8
- 91327847
CUP, Drive Pinion, Front- CUP, Drive Pinion, Rear
Rear
- CUP, Drive Pinion, Rear
- 9
- 102909288
GASKET,Drive Shaft-5500 Lb.Axle- w/6200 Lb.Axle
- Require Quantity: 2
- 104032759
GASKET,Drive Shaft-5500 Lb.Axle- GASKET,Drive Shaft-5500 Lb.Axle
- Fitting Vehicle Options: D-267-B3
- Require Quantity: 2
- 101795185
SHIM, Front Bearing, .003- SHIM, Front Bearing, .003
- 101795186
SHIM, Front Bearing, .003- Front Bearing, .005
- 101922314
SHIM, Front Bearing, .003- Rear Bearing, .003
- 101922315
SHIM, Front Bearing, .003- Rear Bearing, .005
- 11
- 114036682
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/5500 Lb. Axle w/Offset Diff. & Single Wheels, Right
- Fitting Vehicle Options: B3
- 114036683
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/5500 Lb. Axle w/Offset Diff. & Single Wheels, Left
- Fitting Vehicle Options: B3
- 114036684
SHAFT, Drive w/5500 & 5800 Lb. Axle- SHAFT, Drive w/5500 & 5800 Lb. Axle
- Fitting Vehicle Options: D
- Require Quantity: 2
- 114089284
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/6200 Lb.Axle, w/3.73,4.10 Ratio, Right
- Fitting Vehicle Options: B3
- 114089285
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/6200 Lb.Axle, w/3.73,4.10 Ratio, Left
- Fitting Vehicle Options: B3
- 123634985
GASKET,Cover
- 12
$12.20 $8.231 - 124031945
PLUG, Cover (Rubber)- PLUG, Cover (Rubber)
- 132952469
GEAR & PINION SET,(Only), 3.54 to 1 Ratio- SLINGER, Rr. Axle Drive Pinion
- Fitting Vehicle Options: All
- 133732949
GEAR & PINION SET,(Only), 3.54 to 1 Ratio- BAFFLE, Pinion Bearing w/4500# Frt. Axle
- Fitting Vehicle Options: D
- 133893660
GEAR & PINION SET,(Only), 3.54 to 1 Ratio- GEAR & PINION SET,(Only), 3.54 to 1 Ratio
- Fitting Vehicle Options: All
- 14$19.82 $15.341
- 143634985
GASKET, Cover
- 15$42.69 $33.041
- 151795193
SLINGER, Pinion Oil Seal Outer - 154137768
SLINGER, Pinion Oil Seal Outer
- 161795152
SHIM, .003- SHIM, .003
- 161795153
SHIM, .003- .005
- 17
- 18
- 194137283
SEAL, Drive Pinion Oil
- 19
$6.25 $4.141
- 20
- 214137786
HOUSING, Rear Axle, w/5500 Lb.- After 9/1/83
- Fitting Vehicle Options: D
- 214137787
HOUSING, Rear Axle, w/5500 Lb.- w/5500 Lb. Axle 1985
- Fitting Vehicle Options: B3
- 214137790
HOUSING, Rear Axle, w/5500 Lb.- w/5800 Lb. Axle, After 9/1/83
- Fitting Vehicle Options: D
- 214213204
HOUSING, Rear Axle, w/5500 Lb.- w/6200 Lb. Axle, H.D.
- Fitting Vehicle Options: B3
- 214213205
HOUSING, Rear Axle, w/5500 Lb.- w/5500 Lb. Axle 1984
- Fitting Vehicle Options: B3
- 214213209
HOUSING, Rear Axle, w/5500 Lb.- Up to 9/1/83
- Fitting Vehicle Options: D
- 214269133
HOUSING, Rear Axle, w/5500 Lb.- w/5800 Lb. Axle, Up to 9/1/83
- Fitting Vehicle Options: D
- 234089282
CASE,3.54,4.10 Ratio
- 230112210
STUD, 6200 lb. Axle, Budd Wheel- Fitting Vehicle Options: D2,3
- Require Quantity: 16
- 23
6031062
STUD, 6200 lb. Axle, Budd Wheel- Require Quantity: 16
- 24
- 249432419
PIN, Lock
- 25$0.00
- 25$12.20 $8.231
- 254031945
PLUG, Filler (Metal)- (Rubber)
- 26
- 26
- 271795170
SCREW, Drive Gear- Require Quantity: 12
- 274036682
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/5500 Lb. w/Single Wheel & Offset Diff., Right
- Fitting Vehicle Options: B3
- 274036683
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/5500 Lb. w/Single Wheel & Offset Diff., Left
- Fitting Vehicle Options: B3
- 274036684
SHAFT, Drive w/5500 & 5800 Lb. Axle- SHAFT, Drive w/5500 & 5800 Lb. Axle
- Fitting Vehicle Options: D
- Require Quantity: 2
- 274089284
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/6200 Lb. H.D., Right
- Fitting Vehicle Options: B3
- Require Quantity: 2
- 274089285
SHAFT, Drive w/5500 & 5800 Lb. Axle- w/6200 Lb. H.D., Left
- Fitting Vehicle Options: B3
- Require Quantity: 2
- 282909288
GASKET, Drive Shaft-5500 Lb. Axle- w/6200 Lb.Axle
- Require Quantity: 2
- 284032759
GASKET, Drive Shaft-5500 Lb. Axle- GASKET, Drive Shaft-5500 Lb. Axle
- Require Quantity: 2
- 28
$53.15 $36.151
- 304115854
CASE ASSY. KIT, Diff., w/3.55 & 4.10 Ratio- CASE KIT, Diff., w/3.55, 3.73 & 4.10 Ratio
w/3.55 & 4.10 Ratio
- 304137751
CASE ASSY. KIT, Diff., w/3.55 & 4.10 Ratio- w/3.55 & 4.10 Ratio 1985
w/4.10 Ratio After 9/1/83
- 301795185
SHIM, Frt. Bearing Adjusting,.003- SHIM, Frt. Bearing Adjusting,.003
- 301795186
SHIM, Frt. Bearing Adjusting,.003- .005
- 301922314
SHIM, Frt. Bearing Adjusting,.003- SHIM, Rr. Bearing Adjusting,.003
- 301922315
SHIM, Frt. Bearing Adjusting,.003- .005
- 313893660
GEAR & PINION KIT, w/3.55 Ratio 1984 - 313894117
GEAR & PINION KIT, w/3.55 Ratio 1984- Fitting Vehicle Options: B, D
- 314137752
GEAR & PINION KIT, w/3.55 Ratio 1984- KIT GEAR & PINION, w/3.55 Ratio
w/3.55 Ratio 1985 - Fitting Vehicle Options: B,D
- 314137775
GEAR & PINION KIT, w/3.55 Ratio 1984- w/4.10 Ratio
w/4.10 Ratio 1985
w/4.10 Ratio After 9/1/83 - Fitting Vehicle Options: B, B,D, D
- 313893660
GEAR & PINNION KIT, Drive Gear - 313894117
GEAR & PINNION KIT, Drive Gear - 314137775
GEAR & PINNION KIT, Drive Gear- 4.10 Ratio After 9/1/83 (Consists Of Gear & Pinion Set,Shims,Bearings,Seals,Slinger & Baffle.)
- 314167288
GEAR & PINNION KIT, Drive Gear- 3.73 Ratio (Consists Of Gear & Pinion Set,Shims,Bearings,Seals,Slinger & Baffle.)
- 324219104
COVER KIT, Diff. Carrier
- 323894162
DIFFERENTIAL CASE ASSY.KIT,3.54,3.73,4.10 Ratio- DIFFERENTIAL CASE ASSY.KIT,3.54,3.73,4.10 Ratio
- Fitting Vehicle Options: All
- 324137778
DIFFERENTIAL CASE ASSY.KIT,3.54,3.73,4.10 Ratio- SHIM KIT, Differential & Pinion w/5500,5800 Lb. Axle, After 9/1/83
- Fitting Vehicle Options: D
- 334219104
COVER KIT, Diff. Carrier
- 331795170
SCREW, Drive Gear- SCREW, Drive Gear
- Require Quantity: 12
- 333894652
SCREW, Drive Gear- w/3.55 & 4.10 Ratio 1985 (SHIM KIT, Differential Adjuster)
w/4.10 Ratio After 9/1/83 (SHIM KIT, Differential Adjuster) - Fitting Vehicle Options: B, D
- 334137778
SCREW, Drive Gear- w/3.55 & 4.10 Ratio 1985 (SHIM KIT, Differential and Pinion)
w/4.10 Ratio After 9/1/83 (SHIM KIT, Differential and Pinion) - Fitting Vehicle Options: B, D
- 334210801
SCREW, Drive Gear- DISC and PLATE KIT, Limited Slip Differential
- 344089282
DIFFERENTIAL CASE KIT, 3.54 & 4.10 Ratio
- 36
- 37
- 380112210
STUD, Drive Shaft w/6200 Lb. Axle- STUD, Drive Shaft w/6200 Lb. Axle
- Require Quantity: 16
- 386031062
STUD, Drive Shaft w/6200 Lb. Axle- w/5500 Lb. Axle-Dura Lok Type
- Require Quantity: 16
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Dodge Ram Van parts. Parts like Axle, Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
