3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

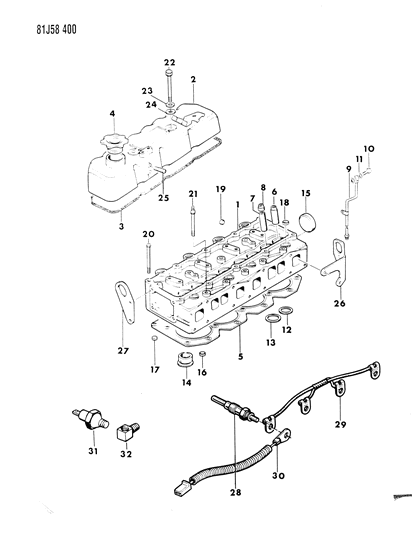

- 1.ENGINE, 4 CYLINDER CYLINDER HEAD 1981-85 ISUZU DIESEL, EXPORT CJ-5,6,7,8
- 2.ENGINE, 4 CYLINDER CYLINDER HEAD 1983-86 AMC FOUR CYLINDER CJ-7,8, SCRAMBLER
- 3.ENGINE, 6 CYLINDER CYLINDER HEAD CJ-5,6,7,8, SCRAMBLER
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 183500254
HEAD, Engine Cylinder- 1983
- 183500675
HEAD, Engine Cylinder- 1984-85
- 183501395
HEAD, Engine Cylinder- 1984-85: B, Coded "591" "715"
- 183501396
HEAD, Engine Cylinder- 1984-85: B, EXPORT, Coded "593" or "721"
- 183501411
HEAD, Engine Cylinder- 1983-85: EXPORT, Australian Design Rules, Non-Regulated Markets
- 183501899
HEAD, Engine Cylinder- 1984: B, VAM, Built in Mexico, Engine Build Code "M"
- 183502372
HEAD, Engine Cylinder- 1986: Coded "591" or "715"
- 183502373
HEAD, Engine Cylinder- 1986: EXPORT, Coded "593" or "721"
- 183502487
HEAD, Engine Cylinder- 1986
- 183502488
HEAD, Engine Cylinder- 1986: EXPORT, Non-Regulated Markets
- 1J8060161
HEAD, Engine Cylinder- Up to Engine Serial #563644
- 1J8060616
HEAD, Engine Cylinder- After Engine Serial #563644
- 1J8133010
HEAD, Engine Cylinder- 1981
- 1J8133892
HEAD, Engine Cylinder- 1982
- 1J8134505
HEAD, Engine Cylinder- 1982-84: A, VAM. Built in Mexico, Engine Build Code "M"
- 1J8134764
HEAD, Engine Cylinder- 1983-84: A, Coded "591" or "715"
- 1J8134765
HEAD, Engine Cylinder- 1983-84: A, EXPORT, Coded "593" or "721"
- 2J8060168
COVER, Cylinder Head
- 2
- 2
- 3J8060169
GASKET, Cylinder Head Cover
- 3
- 4J8060205
CAP
- 4
- 4
- 5J8060165
GASKET- Up to Engine Serial #563644
- 5J8060631
GASKET- After Engine Serial #563644
- 5
- 6
- 6J8060203
GUIDE- Up to Engine Serial #563644
- Require Quantity: 4
- 6J8060617
GUIDE- After Engine Serial #563644
- Require Quantity: 4
- 6J4003917
STUD- Require Quantity: 2
- 7
- 733002419
GASKET- 1986
- 7
- 7J8060204
GUIDE- Up to Engine Serial #563644
- Require Quantity: 4
- 7J8060617
GUIDE- After Engine Serial #563644
- Require Quantity: 4
- 8
- 8J4006595
BOLT, Stud- 1981-82: 7/16"
- 8J4006955
BOLT, Stud- 1983-85: 7/16"
- 8
- 8J8060245
SEAL- Up To Engine Serial #563644, (Intake Valve)
- Require Quantity: 4
- 8J8060620
SEAL- After Engine Serial #563644, (Valve Stem)
- Require Quantity: 8
- 9J4007170
BOLT- 1983-85
- 933002393
COVER, Cylinder Head- B
- 933003691
COVER, Cylinder Head- C
- 9J3237808
COVER, Cylinder Head- A
- 9J8060276
TUBE
- 10J8060141
BOLT
- 10J4006955
BOLT, Stud- 1983-85
- Require Quantity: 4
- 10
- 10
- 11J3242121
COVER, Cylinder Head
- 11J8060155
GASKET- Require Quantity: 2
- 11J4006926
NUT, A,B- Require Quantity: 2
- 12S9432476
BOLT- A
- Require Quantity: 2
- 12S9432476
BOLT- B
- Require Quantity: 5
- 12S9432476
BOLT- BOLT
- Require Quantity: 8
- 12J8060204
INSERT- Up to Engine Serial #563644
- Require Quantity: 4
- 12J8060679
INSERT- After Engine Serial #563644
- Require Quantity: 4
- 13J4007144
BOLT, Stud- Require Quantity: 3
- 13J8053050
GASKET PACKAGE
- 13J8060202
INSERT- Up tp Engine Serial #563644
- Require Quantity: 4
- 13J8060618
INSERT- After Engine Serial #563644
- Require Quantity: 4
- 14J8060167
CHAMBER, Precombustion- Require Quantity: 8
- 14J3237765
GROMMET- .72" Inside Diameter
- 14
- 15
- 15
- 15J8060162
PLUG
- 16
- 16J3237765
GROMMET- Require Quantity: 2
- 16J8060589
PLUG- Require Quantity: 4
- 17J8060134
PLUG- Require Quantity: 4
- 17J4003917
STUD- Require Quantity: 2
- 18$19.351
- 18J4007199
NUT, Retainer- B
- Require Quantity: 2
- 18J8060163
PLUG- Require Quantity: 5
- 19
- 19
- 19J8060164
PLUG- Require Quantity: 4
- 20J8060613
BOLT- Require Quantity: 18
- 21J8060055
BOLT, Stud- Up to Engine Serial #563644
- 21J8060614
BOLT, Stud- After Engine Serial #563644
- 22J8060630
BOLT- Require Quantity: 2
- 23J8060171
WASHER- Require Quantity: 2
- 24J8060172
SEAL- Require Quantity: 2
- 25J8060170
FITTING
- 26J8060210
BRACKET
- 27J8060209
BRACKET
- 28J8060564
GLOWPLUG- Require Quantity: 4
- 29J8060416
BAR
- 3056032504
HARNESS, Glowplug- Require Quantity: 2
- 31J3142856
SWITCH
- 32
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Jeep Wrangler parts. Parts like Cylinder Head are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.9L Diesel, 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
