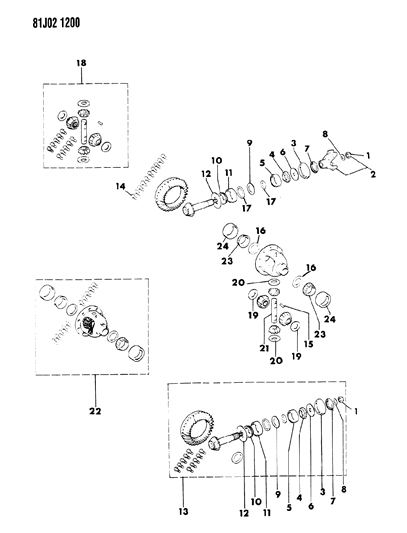

Diagram (1 of 1): FRONT SUSPENSION & DRIVE DIFFERENTIAL, FRONT AXLE CJ-5,6,7,8, SCRAMBLER

1984 Jeep Wrangler Differential - Front Axle Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J0801367
NUT

2
83503388
YOKE, Pinion
1986: Without Dust Slinger on Yoke
$156.00 $103.01
1
Add To Cart
2
J8133241
YOKE, Pinion
- 1981-86: With Dust Slinger on Yoke

3
83503390
SEAL, Pinion
1986: Without Dust Slinger on Yoke
Replaced By: 4746772
$48.10 $32.14
1
Add To Cart
3
J0998092
SEAL, Pinion
- 1981-86: With Dust Slinger on Yoke
$14.50 $11.40
1
Add To Cart

4
J0052878
CONE, Bearing

5
J0052879
CUP, Bearing
$47.50 $32.96
1
Add To Cart

6
J0636566
SLINGER, Dust

7
J0636568
SHIELD, Dust

8
J0636570
WASHER

9
J0934937
BAFFLE

10
J3156066
CONE, Bearing

11
J3156065
CUP, Bearing

12
J0916372
SLINGER, Oil

13
J0945345
GEAR PACKAGE, Front Axle Ring and Pinion
3.73 Ratio
13
J8126494
GEAR PACKAGE, Front Axle Ring and Pinion
- 4.09 Ratio
13
J8126518
GEAR PACKAGE, Front Axle Ring and Pinion
- 3.54 Ratio
13
J8132601
GEAR PACKAGE, Front Axle Ring and Pinion
- 3.31 Ratio
13
J8133063
GEAR PACKAGE, Front Axle Ring and Pinion
- 2.72 Ratio
13
J8134385
GEAR PACKAGE, Front Axle Ring and Pinion
- 4.56 Ratio

14
J0649454
BOLT
- Require Quantity: 10
- Package Quantity: 1

15
J0636360
PIN

16
J8126506
SHIM PACKAGE (8), Case
- Replaced By: 4720863
$24.35 $21.66
1
Add To Cart

17
J8126503
SHIM PACKAGE (14), Pinion
- Replaced By: 83500192

18
J8126497
GEAR PACKAGE, Front Axle Differential

19
J8120832
WASHER
- Require Quantity: 2
- Package Quantity: 1

20
J8120831
WASHER
- Require Quantity: 2
- Package Quantity: 1

21
J8120833
SHAFT

22
J8126495
CASE, Front Axle Differential
4.09 or 4.56 Ratios
22
J8126513
CASE, Front Axle Differential
- 2.72, 3.31, 3.54 or 3.73 Ratios

23
J3156052
CONE, Bearing
- Require Quantity: 2

24
J3171166
CUP, Bearing
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1984 Jeep Wrangler parts. Parts like Differential - Front Axle are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.9L Diesel, 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
