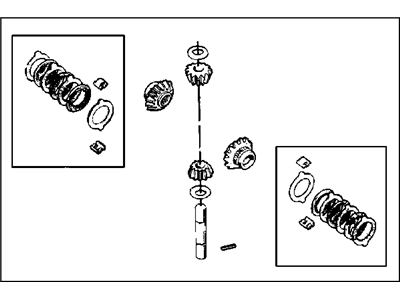

Diagram (1 of 1): REAR AXLE DIFERENTIAL AND GEARS, REAR AXLE DANA MODEL 44, LOCKING CJ-7,8, SCRAMBLER

1984 Jeep Wrangler Differential And Gears, Rear Axle Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J0801367
NUT, Pinion

2
83503388
YOKE, Pinion
Without Dust Slinger on Yoke
$156.00 $103.01
1
Add To Cart
2
J8133241
YOKE, Pinion
- With Dust Slinger on Yoke

3
83503390
SEAL, Pinion
Without Dust Slinger on Yoke
Replaced By: 4746772
$48.10 $32.14
1
Add To Cart
3
J0998092
SEAL, Pinion
- With Dust Slinger on Yoke
$14.50 $11.40
1
Add To Cart

4
J0052878
CONE, Bearing

5
J0052879
CUP, Bearing
$47.50 $32.96
1
Add To Cart

6
J0636566
Slinger

7
J8129221
SHIM PACKAGE (15), Pinion

8
J0052877
CUP, Bearing

9
J0807266
CONE, Bearing
$51.20 $44.47
1
Add To Cart

10
83503087
GEAR SET, Rear Axle Ring and Pinion
4.56 Ratio
10
J8129217
GEAR SET, Rear Axle Ring and Pinion
- 3.54 Ratio
10
J8129225
GEAR SET, Rear Axle Ring and Pinion
- 4.09 Ratio
10
J8134219
GEAR SET, Rear Axle Ring and Pinion
- 3.31 Ratio
10
J8134222
GEAR SET, Rear Axle Ring and Pinion
- 2.72 Ratio

11
J0649454
BOLT
- Require Quantity: 10
- Package Quantity: 1

12
J8129218
CASE ASSEMBLY, Differential
2.72, 3.31, 3.54 Ratios
12
J8129232
CASE ASSEMBLY, Differential
- 4.09, 4.56 Ratios

13
83505432
GEAR SET, Differential
Cross Shaft Secured by a Roll Pin
13
J8129220
GEAR SET, Differential
- Cross Shaft secured by two Retaining Rings

14
J0994345
DISC PACKAGE, Differential

15
J8129222
SHIM PACKAGE (8), Case
$132.00 $103.35
1
Add To Cart

16
J8124071
BEARING PACKAGE

17
J0645790
WASHER, Pinion Gear
- Require Quantity: 2

18
83503070
RING, Snap
- Require Quantity: 2

19
J8993317
SEALER
- Replaced By: 5010884AD
$13.65 $9.36
1
Add To Cart

20
J0636570
WASHER

21
83503069
SHAFT, Secured by two Retaining Rings
$58.70 $39.78
1
Add To Cart

22
J0636360
PIN, Cross Shaft

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1984 Jeep Wrangler parts. Parts like Differential And Gears, Rear Axle are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.9L Diesel, 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
