5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

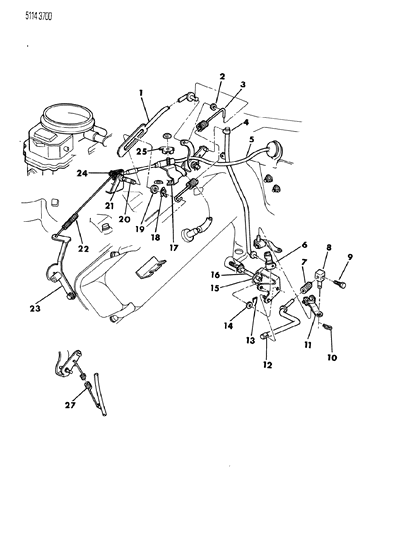

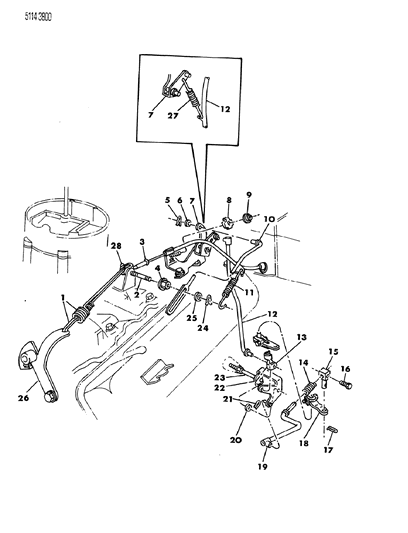

- 1.FUEL THROTTLE CONTROL W/1.6 LITER ENGINE
- 2.FUEL THROTTLE CONTROL W/318 - 2BBL - F,G,B
- 3.FUEL THROTTLE CONTROL W/318 - 4BBL ENGINE - F,G,B
- 4.FUEL THROTTLE CONTROLS - T.B.I
- 5.FUEL THROTTLE CONTROLS - TURBO CHARGER (EXCEPT Z)
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4268846
BRACKET, Throttle Spring Mounting
1
4287530CABLE, Throttle Control 1
4287531CABLE, Throttle Control
2
4300982
BRACKET, Trans. Cable Mounting
2
5214346
BRACKET, Trans. Cable Mounting
2
4287503CABLE, Auto Trans. 2
4288076CABLE, Auto Trans.
3
4275990
BRACKET, Throttle Control Mounting
3
4027355
CABLE, Throttle Control
4
4288067
CABLE, Throttle Control
5
4268811CABLE, Auto Trans. 5
4288077CABLE, Auto Trans.
5
5
6500716SCREW and WASHER, Bracket Attaching
6
4268807BRACKET, Cable Mounting 6
4268831BRACKET, Cable Mounting
7
4287969
BRACKET, Cable Mounting
7
6031628
CLIP, Throttle Control Cable
7
4306153SPRING, Accel. Pedal Return 7
4306154SPRING, Accel. Pedal Return
8
5240826
LEVER, Throttle Control
9
5240826
LEVER, Auto Trans. Throttle Control
9
10
4300982BRACKET, Auto Trans. Cable Mounting 10
5214346BRACKET, Auto Trans. Cable Mounting
10
6031511
CLIP, Auto Trans. Lever
6500136
SCREW and WASHER, Auto Trans. Cable Mounting
11
4288190SPRING, Accel Pedal Return 11
4306152SPRING, Accel Pedal Return
17
3870670
BRACKET, Cable Mounting
27
2536847SPRING, Linkage Assist 27
3870666SPRING, Linkage Assist 27
4041545SPRING, Linkage Assist 27
4041546SPRING, Linkage Assist 27
4041547SPRING, Linkage Assist- LEVER, Fast Idle Adjusting
28
2536847CLIP, Throttle Control 28
4041545CLIP, Throttle Control 28
4041546CLIP, Throttle Control 28
4041547CLIP, Throttle Control- LEVER, Fast Idle Adjusting
28
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985
Chrysler Fifth Avenue parts. Parts like Throttle Control are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
