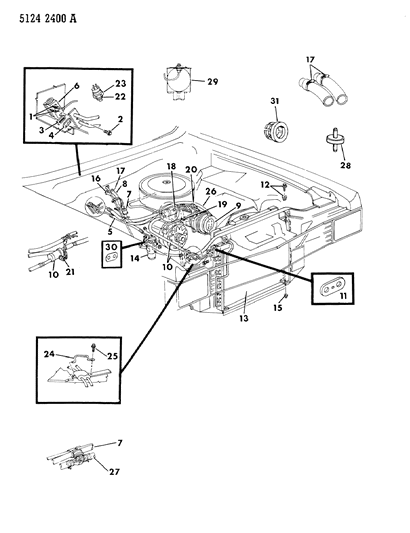

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONER AND HEATER B,F,G
1985 Chrysler Fifth Avenue Plumbing - A/C & Heater Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    6100314
    SCREW, A/C Suction & Liquid Line Mtg.
  • 4
    3846834
    GASKET, A/C Suction & Liquid Line to H-Valve
  • 5
    3847169
    LINE, A/C Suction & Liquid
  • 8
    1315466
    HOSE, A/C, Heater 5/8" I,D. 50Ft. Roll
  • 9
    4176059
    COMPRESSOR, A/C w/318 Engine
  • 10
    3848694
    LINE, A/C Discharge & Liquid
  • 12
    3502915
    GROMMET & SPACER, A/C Condenser Mtg.
    • Require Quantity: 2
  • 14
    3847830
    FILTER DRIER, w/Bracket A/C
  • 15
    0120375
    NUT w/CONED WA., Condenser Mtg.
    • Require Quantity: 2
  • 16
    4041604
    CLAMP, A/C, Heater Hose to Pump
  • 18
    3848585
    CAP, A/C Discharge Liquid Line Check Valve
  • 19
    1779258
    NIPPLE, A/C, Heater Hose Eng. 1.70" Lg., 3/8" Thd.
  • 20
    3847081
    GASKET, A/C Discharge Line Flange Mtg.
  • 21
    3848674
    SWITCH, A/C High Pressure Cut-Off
  • 23
    5210377
    SWITCH, A/C Low Pressure Cut Off
  • 24
    3846509
    CLIP, A/C Discharge & Liquid Line Mtg.
  • 26
    1315466
    HOSE, A/C, Heater 5/8" I.D. x 50Ft. Roll
  • 27
  • 27
    1315466
    HOSE, A/C, Heater Valve to Core (Preformed) 29" Lg.
    • HOSE, A/C, Heater Valve to Core (Preformed) 29" Lg.
  • 27
    3849077
    HOSE, A/C, Heater Valve to Core (Preformed) 29" Lg.
    • HOSE, A/C, Heater Valve to Core, Silicone 5/8 I.D. 13" Long
  • 27
    3849079
    HOSE, A/C, Heater Valve to Core (Preformed) 29" Lg.
    • HOSE, A/C, Heater Core to Pump, Silicone, 5/8 I.D. 46" Long
  • 28
    3846304
    MOUNT, A/C Condenser Mtg.
    • Require Quantity: 2
  • 29
    4205830
    SWITCH & LUBE PKG., A/C Suction Line Temp Sensing or Cycling
    • Require Quantity: 2
  • 30
    3847083
    GASKET, A/C Suction & Liquid Line Mtg. to Drier
  • 31 Chrysler 6015756
    6015756
    PILOT, A/C Suction Line Mtg. (Plastic)
    • STRAP, A/C or A.T.C. Vacuum Hose Support
    • Fitting Vehicle Options: B,G
    • Replaced By: 4641780
    $0.45 $0.29
    1
    Add To Cart
  • 31
    3780794
    PILOT, A/C Suction Line Mtg. (Plastic)
    • HOSE, Control Vacuum .073/.081 I.D. 50Ft. Roll
    • Fitting Vehicle Options: All
  • 31
    3847147
    PILOT, A/C Suction Line Mtg. (Plastic)
    • Discharge Line Mtg. (Plastic)
      PILOT, A/C Suction Line Mtg. (Plastic)
    • Fitting Vehicle Options: All
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Chrysler Fifth Avenue parts. Parts like Plumbing - A/C & Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
