3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

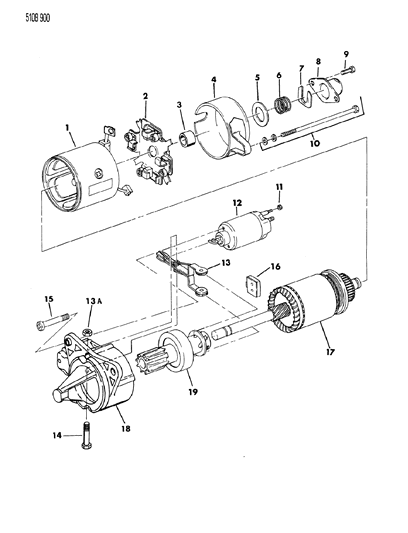

- 1.ELECTRICAL STARTER COMPONENTS 2.2 ENGINE 5213045 & 5213450
- 2.ELECTRICAL STARTER COMPONENTS 2.2 ENGINE CHRYSLER NO. 5213190 (NIPPONDENSO)
- 3.ELECTRICAL STARTER COMPONENTS 2.6 ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
3
MD604318
ARMATURE ASSEMBLY
5
5213317
SEAL, (Serv.in 5206640 Armature Brake Pkg.)
7
5213396
SCREW, Bearing Cover
9
MD604327
CAP, Terminal (Rubber)
12
MD604320
HOUSING, Sub Assy.
13
5213873
LEVER, Shifting Fork
13A
5206646
NUT, Shifting Fork Lever
14
5213391
NUT, Fork Shift Lever
14
5206643
PIN, Fork Shift Lever
16
MD604319
CLUTCH SUB ASSEMBLY
19
MD604321
SWITCH, Magnetic (Solenoid)
20
5206628
PIN, Shift Fork Lever
21
23
5206616
NUT, Connecting Terminal
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985
Chrysler LeBaron Base parts. Parts like Starter Components are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: Automatic Transmission.
