5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

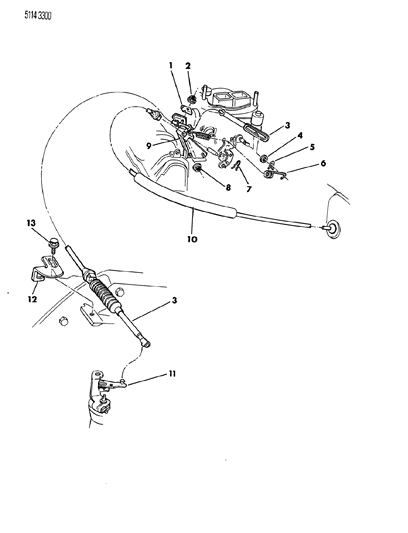

  • 1.FUEL THROTTLE CONTROL - P,D,C,V,E,T,H,K W/2.2 LITER ENGINE
    1985 Chrysler LeBaron Throttle Control Diagram 1
  • 2.FUEL THROTTLE CONTROL - P,D,C,V,E,T,H,K W/2.6 LITER ENGINE
    1985 Chrysler LeBaron Throttle Control Diagram 2
  • 3.FUEL THROTTLE CONTROL W/1.6 LITER ENGINE
    1985 Chrysler LeBaron Throttle Control Diagram 3
  • 4.FUEL THROTTLE CONTROLS - T.B.I
    1985 Chrysler LeBaron Throttle Control Diagram 4
  • 5.FUEL THROTTLE CONTROLS - TURBO CHARGER (EXCEPT Z)
    1985 Chrysler LeBaron Throttle Control Diagram 5
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4268846
    BRACKET, Throttle Spring Mounting
  • 1
    4287530
    CABLE, Throttle Control
    • CABLE, Throttle Control
  • 1
    4287531
    CABLE, Throttle Control
    • CABLE, Throttle Control
  • 1
    2402210
    CLIP, Auto Trans. Cable Mounting
  • 2
    4300982
    BRACKET, Trans. Cable Mounting
  • 2
    5214346
    BRACKET, Trans. Cable Mounting
  • 2
    4287503
    CABLE, Auto Trans.
  • 2
    4288076
    CABLE, Auto Trans.
  • 2
    4288069
    CABLE, Throttle Control
    • Fitting Vehicle Options: H,K
  • 2
    4288191
    CABLE, Throttle Control
  • 2
    120375
    NUT w/WASHER
  • 2
    4306152
    SPRING
  • 3
    4275990
    BRACKET, Throttle Control Mounting
  • 3
    4275912
    CABLE, Auto Trans.
  • 3
    4288082
    CABLE, Auto Trans.
  • 3
    5240826
    LEVER, Throttle Control
  • 3
    4241555
    RETAINER, Cable
  • 3
    6500716
    SCREW, w/WASHER
  • 4
    4306251
    BRACKET
    • after 5-20-85
  • 4
    5214344
    BRACKET
    • up to 5-20-85
  • 4
    4288067
    CABLE, Throttle Control
  • 4
    6031628
    CLIP
    • Require Quantity: 2
  • 4
    4241555
    RETAINER
  • 5
    4287514
    CABLE, Auto Trans
  • 5
    4288080
    CABLE, Auto Trans
  • 5
    4268811
    CABLE, Auto Trans.
  • 5
    4288077
    CABLE, Auto Trans.
  • 5
    6031511
    CLIP, Carburetor Lever Stud Auto Trans.
  • 5
    6500716
    SCREW and WASHER, Bracket Attaching
    • Require Quantity: 2
  • 6
    MD025438
    BRACKET
  • 6
    4268807
    BRACKET, Cable Mounting
    • BRACKET, Cable Mounting
  • 6
    4268831
    BRACKET, Cable Mounting
    • BRACKET, Cable Mounting
  • 6
    4288188
    SPRING, Accel. Pedel Return
    • w/Auto Trans.
  • 6
    4306152
    SPRING, Accel. Pedel Return
    • w/Manual Trans.
  • 7
    6031628
    CLIP, Throttle Control Cable
  • 7
    4306153
    SPRING, Accel. Pedal Return
    • w/ Auto Trans
  • 7
    4306154
    SPRING, Accel. Pedal Return
    • w/ Manual Trans
  • 7
    4288189
    SPRING, Accelerator Return
  • 8
    5240826
    LEVER, Throttle Control
  • 8
    Chrysler 6500136
    6500136
    SCREW, w/WASHER
  • 9
    4287740
    BRACKET, Cable Mounting
  • 9
    5240826
    LEVER, Auto Trans. Throttle Control
  • 10
    4300982
    BRACKET, Auto Trans. Cable Mounting
    • after 5-20-85
  • 10
    5214346
    BRACKET, Auto Trans. Cable Mounting
    • up to 5-20-85
  • 10
    4287531
    CABLE, Throttle Control
    • CABLE, Throttle Control
  • 10
    4288068
    CABLE, Throttle Control
    • Fitting Vehicle Options: H,K
  • 10
    6031511
    CLIP, Auto Trans. Lever
  • 10
    6031511
    CLIP, Carb Lever Stud
  • 11
    5240826
    LEVER, Auto Trans. Throttle Control
  • 11
    2264706
    PIN, Throttle Control Cable
  • 11
    Chrysler 6500136
    6500136
    SCREW and WASHER, Auto Trans. Cable Mounting
  • 11
    4288190
    SPRING, Accel Pedal Return
    • w/Auto Trans.
  • 11
    4306152
    SPRING, Accel Pedal Return
    • w/Manual Trans.
  • 12
    4300982
    BRACKET, Auto Trans. Cable Mounting
  • 12
    5214346
    BRACKET, Auto Trans. Cable Mounting
  • 12
    5214081
    BRACKET, Throttle Control Cable
  • 12
    MD606949
    BRACKET, Throttle Control Cable
  • 13
    5214081
    SCREW w/WASHER
    • SPRING, Auto Trans. Cable
  • 13
    Chrysler 6500136
    6500136
    SCREW w/WASHER
    • SCREW w/WASHER
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Chrysler LeBaron Base parts. Parts like Throttle Control are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: Automatic Transmission.
