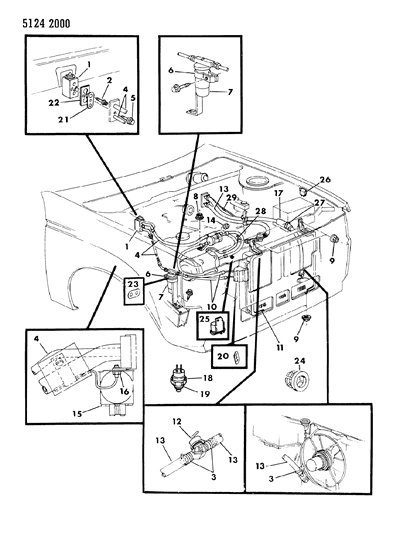

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONER AND HEATER M,Z,P,D,V,C,J,E,T, C,V-24

1985 Chrysler LeBaron Plumbing - A/C & Heater Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4176999
VALVE, A/C Expansion, H-Type

2
6032572
SCREW, A/C Expansion Valve Mtg.
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036623AA

3
2448770
CLAMP, A/C Hose
- Require Quantity: 6
- Package Quantity: 1
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

4
3847576
LINE, A/C Suction & Liquid
VALVE, A/C Suction & Discharge Check Line
Fitting Vehicle Options: All
4
3848522
LINE, A/C Suction & Liquid
- CLIP, A/C Suction & Discharge
- Fitting Vehicle Options: Exc. M,Z
4
3848785
LINE, A/C Suction & Liquid
- BRACKET, A/C Suction Line Support
- Fitting Vehicle Options: Exc. M,Z
4
3848940
LINE, A/C Suction & Liquid
- LINE, A/C Suction & Liquid
- Fitting Vehicle Options: M,Z
4
3848943
LINE, A/C Suction & Liquid
- w/2.2 Engine
- Fitting Vehicle Options: Exc. M,Z
4
3849014
LINE, A/C Suction & Liquid
- w/2.6 Engine
- Fitting Vehicle Options: PDVCJET

5
6100314
SCREW, A/C Suction & Liquid Line Mtg.
A/C Disch. & Liquid Line Mtg. to Condenser
5
6500827
SCREW, A/C Suction & Liquid Line Mtg.
- SCREW, A/C Suction & Liquid Line Mtg.

6
5210409
BRACKET, A/C Filter Drier Mtg.

7
3848217
FILLER DRIER, A/C
FILLER DRIER, w/Brkt. A/C
Fitting Vehicle Options: Exc. M,Z
7
3848784
FILLER DRIER, A/C
- FILLER DRIER, w/Brkt. A/C Complete
- Fitting Vehicle Options: Exc. M,Z
7
5210438
FILLER DRIER, A/C
- FILLER DRIER, A/C
- Fitting Vehicle Options: M,Z

8

6100047
NUT w/WASHER
$8.70 $5.90
1
Add To Cart

9
6500284
NUT w/WASHER

10
3848677
LINE, A/C Discharge & Liquid w/2.2 Eng.
w/2.6 Engine
Fitting Vehicle Options: PDCVJET
10
3848941
LINE, A/C Discharge & Liquid w/2.2 Eng.
- LINE, A/C Discharge & Liquid w/2.2 Eng.
- Fitting Vehicle Options: M,Z
10
3848944
LINE, A/C Discharge & Liquid w/2.2 Eng.
- w/2.2 Engine
- Fitting Vehicle Options: Exc. M,Z

11
3848530
CONDENSER, A/C
Fitting Vehicle Options: Exc. M,Z
11
5210420
CONDENSER, A/C
- CONDENSER, A/C
- Fitting Vehicle Options: M,Z

12
3848114
VALVE, A/C Water
After 10-22-84
Fitting Vehicle Options: M,Z
12
3848136
VALVE, A/C Water
- VALVE, A/C Water
  VALVE, A/C Water (4 Port) w/2.2L Eng.
- Fitting Vehicle Options: M,Z
12
3848307
VALVE, A/C Water
- VALVE, A/C Water Htr. (4 Port) w/2.2 Eng., Up to 1-28-85
- Fitting Vehicle Options: Exc. M,Z
12
3848460
VALVE, A/C Water
- VALVE, A/C Water Htr. (4 Port) w/2.2 L Turbo Eng.
- Fitting Vehicle Options: Exc. M,Z,H,K
12
3849086
VALVE, A/C Water
- VALVE, A/C Water (4 Port) w/Turbo Eng., Up to 10-22-84
- Fitting Vehicle Options: M,Z
12
3849199
VALVE, A/C Water
- After 1-28-85
- Fitting Vehicle Options: Exc. M,Z
12
4240422
VALVE, A/C Water
- w/2.6L Eng.
- Fitting Vehicle Options: PDVCJET

13
1315466
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
HOSE, A/C, Htr. Valve to Core w/1.6L Eng.
Fitting Vehicle Options: All, M,Z
13
3780794
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, Control Vacuum .073/.081 I.D. 50 Ft. Roll
- Fitting Vehicle Options: All
13
3847825
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C Heater Core to Pump
- Fitting Vehicle Options: PDVCJET
13
3847924
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C, Htr. Eng. to Valve w/2.2L Eng.
- Fitting Vehicle Options: PDVCJET
13
3848333
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C, Heater Eng. to Valve w/2.2L Eng., Up to 1-2-85
- Fitting Vehicle Options: Exc. M,Z
13
3848355
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C, Htr. Valve to Core w/2.2L Eng. (Silicone H.D.)
- Fitting Vehicle Options: P,D
13
3848356
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C Heater Core to Pump (Silicon H.D) 2.6L Eng.
- Fitting Vehicle Options: P,D
13
3848357
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C, Htr. Eng. to Valve w/2.6L Eng. (Silicone H.D.)
- Fitting Vehicle Options: P,D
13
3848461
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE & TUBE, A/C, Heater Eng. to Valve w/2.2L Turbo Eng.
- Fitting Vehicle Options: All
13
3848467
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE, A/C Heater Eng. to Valve, w/2.2L Eng. Hi-Perfr.
- Fitting Vehicle Options: M,Z
13
3849047
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- HOSE & TUBE, A/C, Htr. Eng. to Valve w/2.2L Turbo Eng., Up to 10-22-84
  w/2.2L Turbo Eng., After 10-22-84
- Fitting Vehicle Options: 24, M,Z
13
3849069
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- CLIP, A/C, Htr. Hose Mtg. w/Single Booster
  CLIP, A/C, Htr. Hose Mtg. w/Tandem Booster
- Fitting Vehicle Options: All
13
3849169
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- w/2.2L Turbo Eng., After 10-22-84
- Fitting Vehicle Options: 44
13
3849202
HOSE, A/C, Heater, 5/8" I.D. 50 Ft. Roll
- After 1-2-85
- Fitting Vehicle Options: Exc. M,Z

14
3848021
CAP, A/C Discharge & Liquid Line Check Valve
CAP, A/C Suction Liquid Line Check Valve
Fitting Vehicle Options: PDVCJET
14
3848585
CAP, A/C Discharge & Liquid Line Check Valve
- CAP, A/C Discharge & Liquid Line Check Valve
- Fitting Vehicle Options: All

15
4339411
SWITCH & LUBE PKG., A/C Suction Line Temp. Sensing or Cycling

17
5210322
SLEEVE, A/C, Heater Hose

18
3848674
SWITCH, A/C Low Pressure Cut-Off
SWITCH, A/C High Pressure Cut-Off
18
4304721
SWITCH, A/C Low Pressure Cut-Off
- WIRING ASSY., A/C High Pressure Cut Out Switch Jumper, w/2.6L Eng.
18
5210377
SWITCH, A/C Low Pressure Cut-Off
- SWITCH, A/C Low Pressure Cut-Off

19
3441105
SEAL, A/C Receiver Drier Low Pressure Cut-Off

20
3846835
GASKET, A/C Discharge & Liquid Line Plate to Condenser
$25.01 $19.35
1
Add To Cart

21
3846834
GASKET, A/C Suction & Liquid Line to H-Valve

22
3846836
GASKET, A/C Evaporator Valve Mtg. Alumn.
$5.00 $3.41
1
Add To Cart

23
3847083
GASKET, A/C Suction & Liquid Line Mtg. to Drier

24
3847147
PILOT, A/C Suction Line Mtg. Plastic
PILOT, A/C Suction Line Mtg. Plastic
Fitting Vehicle Options: All
24
3848356
PILOT, A/C Suction Line Mtg. Plastic
- HOSE, A/C, Htr. Core to Pump (Silicone H.D.) 2.6L Eng.
- Fitting Vehicle Options: P,D
24
3848461
PILOT, A/C Suction Line Mtg. Plastic
- HOSE & TUBE, A/C, Htr. Eng. to Valve w/2.2 Turbo Eng.
- Fitting Vehicle Options: All

25
4221656
RELAY, A/C Clutch Cut-Out

26
4221576
RELAY, A/C Clutch Cut-Out

27
6015945
STRAP, A/C Suction & Liquid Mtg. to Filter Drier
- Replaced By: 68046310AA
$6.65 $4.50
1
Add To Cart

28
3848948
WASHER, A/C, Htr. Tube Flare w/2.2L Turbo Eng.

29
2837876
CONNECTOR, Vacuum Hose In-Line

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1985 Chrysler LeBaron Base parts. Parts like Plumbing - A/C & Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: Automatic Transmission.
