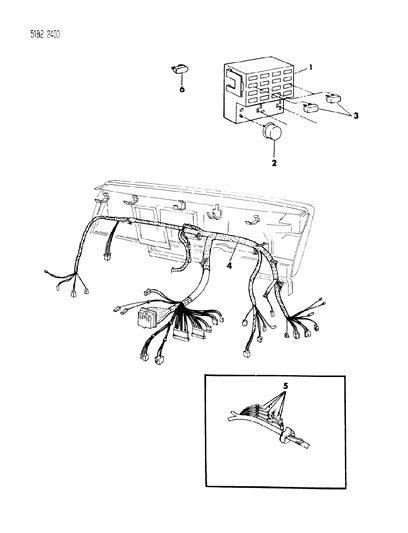

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING H,K

1985 Dodge Caravan Instrument Panel Wiring Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4124258
MODULE, Fuse Block
1 Way
1
4124752
MODULE, Fuse Block
- TERMINAL, Buss Bar, 3 Way
1
4221730
MODULE, Fuse Block
- BUZZER, Key, H/Lamp and Seat Belt Warning
1
4304001
MODULE, Fuse Block
- BRACKET, Fuse Block Mtg.
1
4304499
MODULE, Fuse Block
- MODULE, Fuse Block
1
4312627
MODULE, Fuse Block
- CONTROL, Chimes

2
2932877
FLASHER, Hazard Warning
FLASHER, Hazard Warning
2
3837161
FLASHER, Hazard Warning
- Turn Signal, 2 Lamp
2
3837162
FLASHER, Hazard Warning
- Turn Signal, 3 Lamp

3
4186377
BREAKER, Circuit
6 Amp.
3
4186379
BREAKER, Circuit
- 30 Amp.

4
4274091
WIRING, Instrument Panel
w/Air and Heayed Backlite
4
4274161
WIRING, Instrument Panel
- DIODE and MOLD, Repair Pkg.
4
4304869
WIRING, Instrument Panel
- Spotlite, Lower
4
4304870
WIRING, Instrument Panel
- Spotlite, Upper
4
4331472
WIRING, Instrument Panel
- w/o Light Pkg.
4
4331473
WIRING, Instrument Panel
- w/Light Pkg.
4
4331681
WIRING, Instrument Panel
- w/o Light Pkg. (Low Line Options)
4
4331757
WIRING, Instrument Panel
- w/Van Conversion
4
4331782
WIRING, Instrument Panel
- w/Light Pkg. (Hi Line Options)

5
4026092
CABLE, Fusible Link (25 Ft. Roll)
No. 10 Green
5
4026093
CABLE, Fusible Link (25 Ft. Roll)
- No. 12 Black
5
4026094
CABLE, Fusible Link (25 Ft. Roll)
- No. 14 Red
5
4026095
CABLE, Fusible Link (25 Ft. Roll)
- No. 16 Blue
5
4026096
CABLE, Fusible Link (25 Ft. Roll)
- No. 18 Grey
5
4131507
CABLE, Fusible Link (25 Ft. Roll)
- No. 20 Orange

6
6101131
FUSES
3 Amp.
6
6101132
FUSES
- 4 Amp.
6
6101133
FUSES
- 5 Amp.
6
6101135
FUSES
- 10 Amp.
6
6101137
FUSES
- 20 Amp.
6
6101138
FUSES
- 25 Amp.
6
6101139
FUSES
- 30 Amp.

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1985 Dodge Caravan parts. Parts like Instrument Panel Wiring are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
