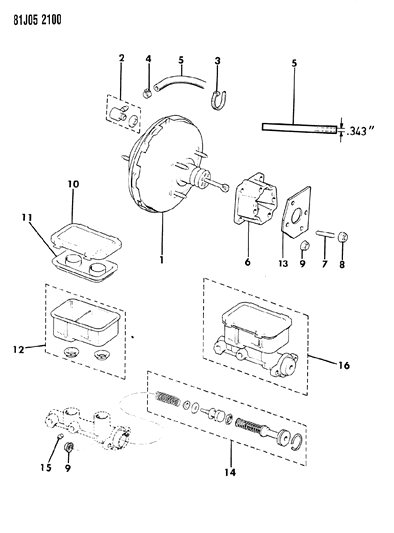

Diagram (1 of 1): BRAKE, SERVICE BOOSTER AND MASTER CYLINDER SJ CHEROKEE, SJ WAGONEER J10, J20

1985 Jeep Grand Wagoneer Booster & Master Cylinder Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83500986
BOOSTER, Brake
1983-86: After Vehicle No. 066476
1984-86: EXPORT
Unit is 5.70" Thick
Fitting Vehicle Options: 15,16,17,18, 25,26, 27
1
J8133309
BOOSTER, Brake
- Unit is 3.93" Thick
- Fitting Vehicle Options: 15,16,17,18, 25,26
1
J8133310
BOOSTER, Brake
- 1981-83: EXPORT
  1981-83: Up to Vehicle No. 066476
- Fitting Vehicle Options: 27

2
J8125991
VALVE, Check

3
J3223227
STRAP
- Replaced By: 4641780
$0.45 $0.29
1
Add To Cart

4
J3203076
CLAMP
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

5
J8125883
HOSE, Vacuum

6
J5359059
SPACER, Brake Booster
Eight Cylinder
Six Cylinder, Right Hand Drive
6
J5363039
SPACER, Brake Booster
- Six Cylinder, 1.93" Thick
6
J5363040
SPACER, Brake Booster
- Six Cylinder, .093" Thick

7
J4006485
STUD
- Require Quantity: 4

8
J4006653
NUT
- Require Quantity: 4

9
J4200301
NUT
- Require Quantity: 6

10
J8133319
COVER

11
J8133318
GASKET

12
J8133321
RESERVOIR

13
J5363040
SPACER

14
J8133317
REPAIR PACKAGE, Master Cylinder

15
J8128300
SEAT
- Require Quantity: 2

16
J8133316
CYLINDER, Brake Master

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1985 Jeep Grand Wagoneer parts. Parts like Booster & Master Cylinder are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
