Alternator fit your 1986 Chrysler Conquest
Currently shopping for
1986 Chrysler Conquest
Change VehicleCategories Close X
Currently selected
Electrical
Other Categories
Automatic Transmission
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Miscellaneous
Body - Sheet Metal Except Doors
Brakes, Service
Clutch
Cooling
Electrical - Instrument Panel And Consoles
Engine
Exhaust
Frame & Bumpers
Fuel
Interior Trim
Steering
Parts Questions

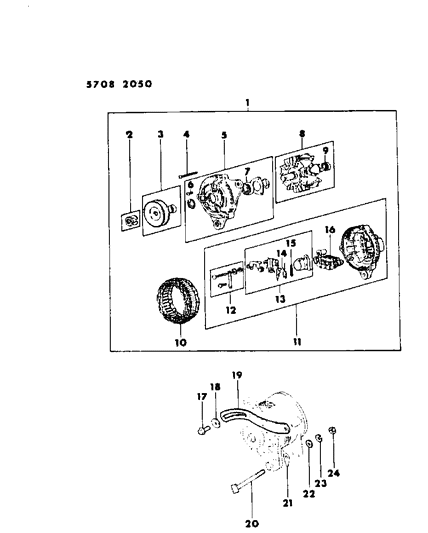

Diagram (1 of 1): ELECTRICAL ALTERNATOR F ENGINE CONQUEST
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1MD086048
ALTERNATOR, Up to 11-85- ALTERNATOR, Up to 11-85
- 1MD106508
ALTERNATOR, Up to 11-85- Aft. 11-85
- 2MM502340
NUT SET
- 3MD607819
PULLEY, w/MD086048- PULLEY, w/MD086048
- 3MD611373
PULLEY, w/MD086048- w/MD106058
- 4MD607212
SCREW SET, w/MD086048- SCREW SET, w/MD086048
- 4MD607963
SCREW SET, w/MD086048- w/MD106508
- 5MD607821
BRACKET, Front, w/MD086048
- 6MD602938
SCREW SET, w/MD086048- SCREW SET, w/MD086048
- 6MD611034
SCREW SET, w/MD086048- w/MD106508
- 7MD607200
BEARING, Front, w/MD086048- BEARING, Front, w/MD086048
- 7MD611247
BEARING, Front, w/MD086048- w/MD106508
- 8MD607816
ROTOR, w/MD086048- ROTOR, w/MD086048
- 8MD611273
ROTOR, w/MD086048- w/MD106508
- 9MD602002
BEARING, Rear, w/MD086048- BEARING, Rear, w/MD086048
- 9MD611150
BEARING, Rear, w/MD086048- w/MD106508
- 10MD607515
STATOR, w/MD086048- STATOR, w/MD086048
- 10MD611272
STATOR, w/MD086048- w/MD106508
- 11MD607817
BRACKET, Rear, w/MD086048- BRACKET, Rear, w/MD086048
- 11MD611306
BRACKET, Rear, w/MD086048- w/MD106508
- 12MD607569
TERMINAL SET, w/MD086048- TERMINAL SET, w/MD086048
- 12MD607829
TERMINAL SET, w/MD086048- w/MD106508
- 13MD607372
IC REGULATOR, w/MD086048- IC REGULATOR, w/MD086048
- 13MD611032
IC REGULATOR, w/MD086048- w/MD106508
- 14MD607373
BRUSH, w/MD086048- BRUSH, w/MD086048
- 14MD611035
BRUSH, w/MD086048- w/MD106508
- 15MD602227
SPRING, Brush
- 16MD607818
RECTIFIER, w/MD086048- RECTIFIER, w/MD086048
- 16MD611307
RECTIFIER, w/MD086048- w/MD106508
- 17
$1.10 $0.741
- 18
- 19MD027751
BRACE, Alt.
- 21MD001517
SHIM
- 22
$1.35 $0.911
- 23
$0.25 $0.171
- 24MD001516
NUT
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Conquest parts. Parts like Alternator are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options.
