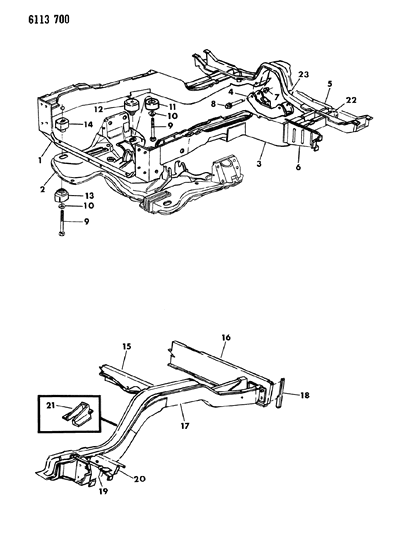

Diagram (1 of 1): FRAME & BUMPERS FRAME M BODY

1986 Chrysler Fifth Avenue Frame Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4296620
CROSSMEMBER, Front Side Rail, Front

2
4322172
CROSSMEMBER, Frt. Suspension Comp.

3
4129898
RAIL, w/Reinforcement, Front Side, Right
RAIL, w/Reinforcement, Front Side, Right
3
4129899
RAIL, w/Reinforcement, Front Side, Right
- RAIL, w/Reinforcement, Front Side, Left

4
4001797
CROSSMEMBER, Frame Trans. Mtg.

5
4296617
CROSSMEMBER, Front Side Rail, Rear

6
4314640
REINFORCEMENT, Frt. Side Rail to Side Sill, Inner, Right
REINFORCEMENT, Frt. Side Rail to Side Sill, Inner, Right
6
4314641
REINFORCEMENT, Frt. Side Rail to Side Sill, Inner, Right
- REINFORCEMENT, Frt. Side Rail to Side Sill, Inner, Left

7
152344
NUT, Std.
- Require Quantity: 2
- Package Quantity: 1
$6.25 $4.91
1
Add To Cart

8
6029550
BOLT, Std.
- Require Quantity: 2

9
6031150
BOLT, Body Hold Down
- Require Quantity: 4

10
4001701
WASHER, Body Hold Down
- Require Quantity: 4

11
4001552
ISOLATOR, Rr. Lwr. Cushion
- Require Quantity: 2

12
4001554
ISOLATOR, Rr. Upr. Cushion
- Require Quantity: 2

13
4001596
ISOLATOR, Frt. Lwr. Cushion
- Require Quantity: 2

14
4001595
ISOLATOR, Frt. Upr. Cushion
- Require Quantity: 2

15
4314665
CROSSMEMBER, Rr. Shock Abs.

16
4314663
CROSSMEMBER, Rr. Floor Pan Rr.

17
4325152
RAIL, Floor Pan Rear Side, Right
RAIL, Floor Pan Rear Side, Right
17
4325153
RAIL, Floor Pan Rear Side, Right
- RAIL, Floor Pan Rear Side, Left

18
4015634
REINFORCEMENT, Rr. Floor Pan Rr. C/Member, w/H.D.Sevice Pkg.
- Require Quantity: 2

19
4325148
SUPPORT, w/Gusset Ctr. Flr. Pan Rr. Susp. Frt. Hgr. Brkt., Right
SUPPORT, w/Gusset Ctr. Flr. Pan Rr. Susp. Frt. Hgr. Brkt., Right
19
4325149
SUPPORT, w/Gusset Ctr. Flr. Pan Rr. Susp. Frt. Hgr. Brkt., Right
- SUPPORT, w/Gusset Ctr. Flr. Pan Rr. Susp. Frt. Hgr. Brkt., Left

21
4296684
BRACKET, Rear Side Rail Park Brake Cable
DOUBLER, Frt. S/Rail Front Susp. C/Member Reinf., Outer, Right, H.D. (Not Illustrated), Right
21
4296685
BRACKET, Rear Side Rail Park Brake Cable
- DOUBLER, Frt. S/Rail Front Susp. C/Member Reinf., Outer, Right, H.D. (Not Illustrated), Left
21
4296686
BRACKET, Rear Side Rail Park Brake Cable
- PLATE, Front S/Rail C/Member Reinf. Rear, H.D.(No t Illustrated), Right
21
4296687
BRACKET, Rear Side Rail Park Brake Cable
- PLATE, Front S/Rail C/Member Reinf. Rear, H.D.(No t Illustrated), Left
21
4314662
BRACKET, Rear Side Rail Park Brake Cable
- BRACKET, Rear Side Rail Park Brake Cable
- Require Quantity: 2

22
4296618
REINFORCEMENT, Front Side Rail, Rear Crossmember, Outer
- Require Quantity: 4

23
4296619
SPACER, Front Side Rail Rear Crossmember
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Fifth Avenue parts. Parts like Frame are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
