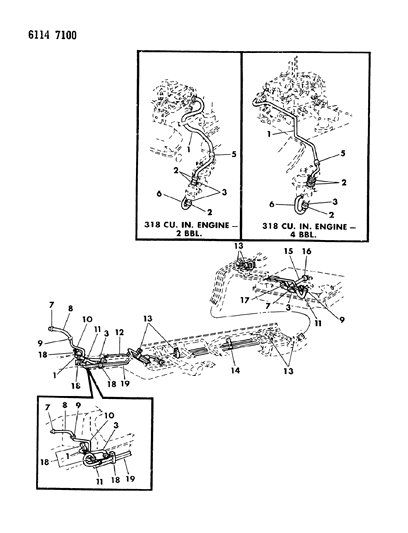

Diagram (1 of 1): FUEL FUEL LINES M BODY

1986 Chrysler Fifth Avenue Fuel Lines Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
1843253
TUBE, (25 ft. roll) 5/16 O.D.

2
2463937
CLAMP

3
4203316
HOSE, (50 ft. roll) 5/16

4
4179975
CLIP, Fuel Filter Hose to Carb. Tube

5
4179759
CLIP, Fuel Tube Locating

6
4027122
TUBE, Fuel Pump to Fuel Filter Hose

7
2448761
CLAMP
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

10

1843251
TUBE, (25 ft. roll) 3/16 O.D.
$72.68 $57.12
1
Add To Cart

11
4203211
HOSE, (50 ft. roll) 1/4 I.D.

12
4185424
PLATE, Fuel Tube Cover

13
3583483
CLIP

15
4203106
HOSE, (50 ft. roll) 3/16 I.D.

17
6032282
CLAMP

19
1843252
TUBE, (25 ft. roll) 1/4 O.D.
TUBE, (25 ft. roll) 1/4 O.D.
19
3879285
TUBE, (25 ft. roll) 1/4 O.D.
- Fuel Supply Tube Convoluted (Fuel Return Rear)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Fifth Avenue parts. Parts like Fuel Lines are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
