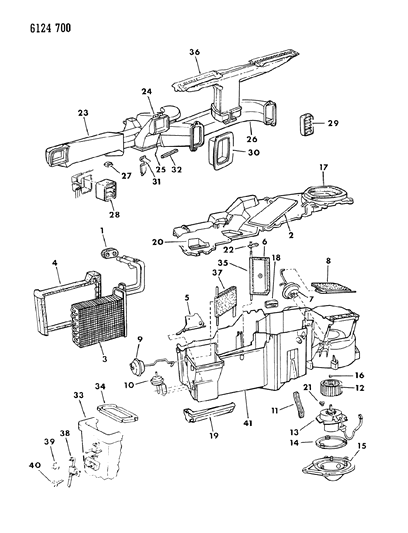

Diagram (1 of 1): HEATER AND AIR CONDITIONING HEATER UNIT M BODY

1986 Chrysler Fifth Avenue Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3846740
SEAL, Heater To Dash At Heater Core Tubes

2
3849097
COVER, Heater Housing

3
4240440
CORE, Heater Complete
TANK, Heater Core
3
4339438
CORE, Heater Complete
- CORE, Heater Complete

4
3849100
SEAL, Heater Core To Housing

5
1279332
DOOR, Heater Defroster Door Complete
BUMPER, Heater Defroster Door
5
3847478
DOOR, Heater Defroster Door Complete
- DOOR, Heater Defroster Door Complete

6
3847223
DOOR, Heater Temperature Complete Blend Air

7
3847216
ACTUATOR, Heater Shut off Door

8
3847217
DOOR, Heater Shut off Complete

9
3847230
ACTUATOR, Heater Mode Door, Upper

10
3847211
ACTUATOR, Heater, Defroster

11
3847202
BRACE, Heater Mounting Left (to Plenum)

12
3503037
WHEEL, Heater Blower Motor Mounting

13
4240425
MOTOR, Heater Blower

14
3847476
SEAL, Heater Blower Motor (to Scroll)

15
3773192
COVER, Heater Blower Scroll
Heater Blower Scroll Cover To Housing (SEAL)
15
3847205
COVER, Heater Blower Scroll
- Heater Cover To Scroll (SEAL)
15
3847207
COVER, Heater Blower Scroll
- COVER, Heater Blower Scroll

16

2837680
CLAMP, Heater Blower Motor Wheel
$2.35 $1.31
1
Add To Cart

17
3847243
SEAL, Heater Unit To Plenum

18
3848996
RESISTOR, Heater Blower Motor

19
3847297
DUCT, Heater Distribution

20
3503999
SEAL, Heater Cover to Defroster Duct

21
6031694
SCREW and WASHER, Heater Blower Motor Mounting
$3.20 $2.19
1
Add To Cart

22
219462
LEVER, w/PIN, Heater Temperatuare Control
NUT and WASHER, Htr. Blend Door Mtg.
22
3847301
LEVER, w/PIN, Heater Temperatuare Control
- LEVER, w/PIN, Heater Temperatuare Control

23
3846421
DUCT, Heater Air Outlet Left Spot Cooler Mounting

24
3847401
DUCT, Heater Bi-Level Air Outlet Left Center

25
3847404
DUCT, Heater Air Outlet Right Center

26
3846418
DUCT, Heater Air Outlet Right Spot Cooler

27
152490
U-NUT
- Require Quantity: 2
- Package Quantity: 1

28
3502905
LOUVER, Heater Air Outlet
- Require Quantity: 2

29
3502934
LOUVER, Heater Air Outlet
- Require Quantity: 2

30
3846422
BEZEL, Heater Air Outlet
- Require Quantity: 2

32
3593396
SEAL
- Require Quantity: 2

33
3846462
HOUSING, Vent Left Complete

34
3846465
SEAL, Vent Housing Mounting Left

35
3847225
DEFLECTOR, Heater Temperature Door

36
3503863
DUCT, Heater Defroster

37
3847420
DOOR, Heater Mode Complete

38
3846071
CABLE, Left Vent Control to Heater

39
2076405
RETAINER, Vent Housing Door

41
3849095
HOUSING and STUD, Heater
HOUSING and STUD, Heater
41
6015778
HOUSING and STUD, Heater
- CLIP, Heater Vacuum Harness Mounting
