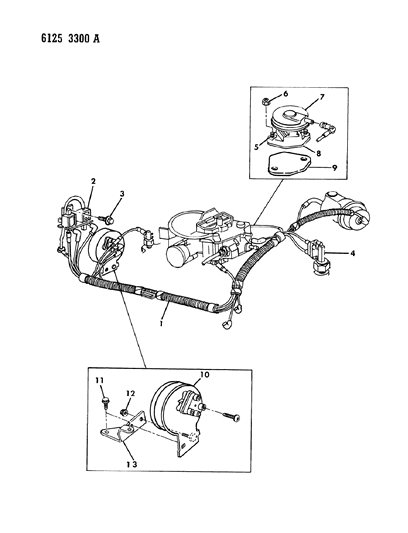

7 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.EMISSION SYSTEMS EGR SYSTEM 1.6L ENGINE
- 2.EMISSION SYSTEMS EGR SYSTEM 2.2L ENGINE EFI AND 2.5L ENGINE
- 3.EMISSION SYSTEMS EGR SYSTEM 2.2L ENGINE TURBO
- 4.EMISSION SYSTEMS EGR SYSTEM 2.6L ENGINE - CALIF.
- 5.EMISSION SYSTEMS EGR SYSTEM 2.6L ENGINE - EXC. CALIF.
- 6.EMISSION SYSTEMS EGR SYSTEM 318 ENGINE 2BBL.
- 7.EMISSION SYSTEMS EGR SYSTEM 318 ENGINE 4BBL.
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1MD025274
VALVE ASSEMBLY, Solenoid
- 1MD025274
VALVE, Solenoid
- 2
- 2MD084379
HOSE, Vacuum
- 26500192
SCREW and WASHER
- 2MD025273
SENSOR, Engine Speed
- 24289087
SOLENOID, Dual Vacuum
- 24049208
SWITCH, CVSCO - Orange
- 3
- 3MS470362
CLIP, Snap (20)
- 34275529
CLIP, Transducer Valve
- 36032473
SCREW and WASHER
- 33879736
SWITCH, CVSCC - Yellow
- 3
- 4MD088084
HOSE ASSEMBLY, Vacuum
- 4MD025273
SENSOR, Engine Speed
- 43879736
SWITCH, CVSCC- SWITCH, CVSCC
- 44049277
SWITCH, CVSCC- exc. Canada
- 44095231
SWITCH, CVSCC- Canada
- 44213597
TUBE, EGR Valve to Intake Manifold Cover
- 44287756
VALVE, EGR w/Transducer
- 5MS470362
CLIP, Snap
- 54179094
GASKET, EGR Valve
- 56031943
STUD, EGR Valve Attach- STUD, EGR Valve Attach
- Require Quantity: 2
- 5
- 5MD001681
VALVE, Delay
- 66101235
BOLT- Require Quantity: 2
- 6MS470359
CLIP, Snap (16)
- 6
- 6
- 6MD062375
VALVE, Thermo
- 7MF241236
BOLT and WASHER (6x45)
- 74201313
GASKET, EGR Valve - 7
- 74201313
GASKET, EGR Valve to Exhaust Manifold
- 74306355
TUBE, EGR
- 74287659
VALVE, EGR- stamped 4287659
- 74287672
VALVE, EGR- stamped 4287672
- 74287677
VALVE, EGR- stamped 4287677
- 74287678
VALVE, EGR- stamped 4287678
- 86501264
ADAPTER, Exhaust Manifold (see note)
- 84287938
GASKET, EGR Valve
- 8
- 86500579
STUD, EGR Tube to Intake Manifold- Require Quantity: 2
- 8MD001542
VALVE, EGR- High Alt.
- 8MD067665
VALVE, EGR- VALVE, EGR
- 8MD075940
VALVE, EGR- Federal
- 8MD100736
VALVE, EGR- Canada
- 9MF241236
BOLT and WASHER (6x14)- Require Quantity: 2
- 93671448
COVER, EGR Valve Flange
- 94201384
GASKET, EGR Valve to Tube Flange
- 94213599
GASKET, Tube to Intake Manifold
- 9MS632812
HOSE, Vacuum - Green (120)
- 104041737
AMPLIFIER, Vacuum
- 10
- 10MD088102
HOSE ASSEMBLY, Vacuum
- 10
- 104287807
VALVE, EGR w/Transducer- stamped 4287807
- 104287808
VALVE, EGR w/Transducer- stamped 4287808
- 11
- 11
- 116026726
SCREW and WASHER- Require Quantity: 2
- 11
- 124201384
GASKET, EGR to Tube Flange
- 12MD100731
HOSE ASSEMBLY, Vacuum- exc. Canada
- 12MD100732
HOSE ASSEMBLY, Vacuum- Canada
- 12$35.85 $26.711
- 126025004
NUT
- 134241191
BRACKET, Amplifier Mounting
- 13
- 13
- 134287402
VALVE, EGR- stamped 4287402, 4300402
- 134287424
VALVE, EGR- stamped 4287424
- 134300424
VALVE, EGR- stamped 4300424
- 144105167
HOSE, Rubber 3/16" (serv. in 50 ft. roll)
- 14MD097338
VALVE, Vacuum Switching
- 15MD100733
BRACKET ASSEMBLY, VSV
- 154306339
TUBE, Throttle Body to Transducer
- 16MD097330
VALVE ASSEMBLY, Thermo
- 174306126
DELAY, Vacuum- after 3-14-86
- 174306281
DELAY, Vacuum- up to 3-14-86
- 184306279
CONNECTOR
- 194167046
VALVE, Vacuum Delay- Federal
- 194173448
VALVE, Vacuum Delay- Canada
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Laser parts. Parts like EGR System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
