2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.BODY - SHEET METAL EXCEPT DOORS CONVERTIBLE FOLDING TOP K BODY 27

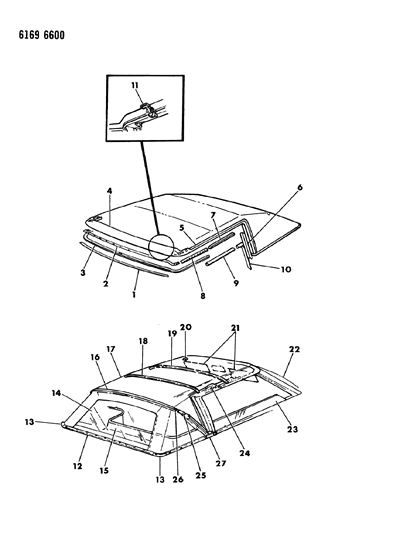

    1986 Chrysler LeBaron Convertible Folding Top Diagram 1
  • 2.BODY - SHEET METAL EXCEPT DOORS CONVERTIBLE FOLDING TOP LOWER K BODY 27

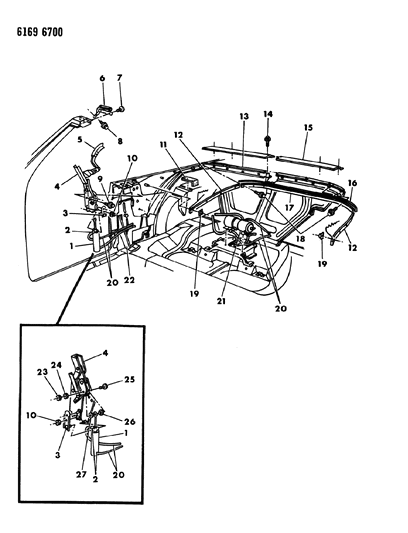

    1986 Chrysler LeBaron Convertible Folding Top Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4097640
    CYLINDER, Folding Top Hydraulic Lift
    • Require Quantity: 2
  • 1
    4305122
    WELT, Header
    • PINCHWELD, Header (54" Length)
  • 1
    T945EK1
    WELT, Header
    • Almond
  • 1
    T945EW3
    WELT, Header
    • White
  • 1
    T945EX9
    WELT, Header
    • Black
  • 2
    4097652
    RETAINER, Front Header Weatherstrip
  • 2
    4186470
    RETAINER, Front Header Weatherstrip
  • 2
    4097663
    SEAL, Folding Top Hydraulic Cylinder Tube Connector
    • Require Quantity: 4
  • 3
    4097613
    BRACKET, Hydraulic Cylinder to Linkage
    • Require Quantity: 2
  • 4
    4341243
    HEADER and LATCH, Folding Top Front Includes Item 11
  • 4
    4341320
    RAIL and LINKAGE, Folding Top Side, Right
    • RAIL and LINKAGE, Folding Top Side, Right
  • 4
    4341321
    RAIL and LINKAGE, Folding Top Side, Right
    • RAIL and LINKAGE, Folding Top Side, Left
  • 5
    4341248
    BOW, Folding Top #3
    • BOW, Folding Top #3
  • 5
    6032862
    BOW, Folding Top #3
    • SCREW
    • Require Quantity: 2
  • 5
    4305011
    CABLE, Folding Top Tension
    • SPRING, Folding Top Tension Cable
    • Require Quantity: 2
  • 5
    4305067
    CABLE, Folding Top Tension
    • GROMMET, Folding Top Side Rail Tension Cable
    • Require Quantity: 2
  • 5
    4319704
    CABLE, Folding Top Tension
    • CABLE, Folding Top Tension
    • Require Quantity: 2
  • 6
    4186470
    RETAINER, w/Seal Side Rail Rear Weatherstrip
    • SEAL, Retainer To Rear Side Rail (70" Length)
  • 6
    4336254
    RETAINER, w/Seal Side Rail Rear Weatherstrip
    • RETAINER, w/Seal Side Rail Rear Weatherstrip
    • Require Quantity: 2
  • 6
    4336254
    RETAINER, w/Seal Side Rail Rear Weatherstrip
    • RETAINER, w/Seal Side Rail Rear Weatherstrip, Right
  • 6
    4336255
    RETAINER, w/Seal Side Rail Rear Weatherstrip
    • RETAINER, w/Seal Side Rail Rear Weatherstrip, Left
  • 6
    6032177
    RETAINER, w/Seal Side Rail Rear Weatherstrip
  • 6
    4337240
    STRIKER, Windshield Header Folding Top Latch, Right
    • STRIKER, Windshield Header Folding Top Latch, Right
  • 6
    4337241
    STRIKER, Windshield Header Folding Top Latch, Right
    • STRIKER, Windshield Header Folding Top Latch, Left
  • 7
    4186470
    RETAINER, Side Rail Center Weatherstrip, Right
    • SEAL, Retainer to Center Side Rail (70" Length)
  • 7
    4310248
    RETAINER, Side Rail Center Weatherstrip, Right
    • RETAINER, Side Rail Center Weatherstrip, Right
  • 7
    4310249
    RETAINER, Side Rail Center Weatherstrip, Right
    • RETAINER, Side Rail Center Weatherstrip, Left
  • 8
    153687
    RETAINER, Side Rail Front Weatherstrip, Right
    • CAP, Folding Top Retainer Screw Protector (SCREW, #10-16 x .500" (Not Serviced))
    • Require Quantity: 16
  • 8
    4336882
    RETAINER, Side Rail Front Weatherstrip, Right
    • RETAINER, Side Rail Front Weatherstrip, Right
  • 8
    4336883
    RETAINER, Side Rail Front Weatherstrip, Right
    • RETAINER, Side Rail Front Weatherstrip, Left
  • 8
    6032177
    SCREW
    • Require Quantity: 2
  • 9
    4310238
    WEATHERSTRIP, Side Rail Center, Right
    • WEATHERSTRIP, Side Rail Center, Right
  • 9
    4310239
    WEATHERSTRIP, Side Rail Center, Right
    • WEATHERSTRIP, Side Rail Center, Left
  • 10
    4336436
    WEATHERSTRIP, Side Rail Rear, Right
    • WEATHERSTRIP, Side Rail Rear, Right
  • 10
    4336437
    WEATHERSTRIP, Side Rail Rear, Right
    • WEATHERSTRIP, Side Rail Rear, Left
  • 11
    4341318
    LATCH and BASE, Folding Top Header, Right
    • LATCH and BASE, Folding Top Header, Right
  • 11
    4341319
    LATCH and BASE, Folding Top Header, Right
    • LATCH and BASE, Folding Top Header, Left
  • 11
    4341706
    LATCH and BASE, Folding Top Header, Right
    • HOOK, Folding Top Header Latch
    • Require Quantity: 2
  • 11
    4341707
    LATCH and BASE, Folding Top Header, Right
    • PIN, Folding Top Header Alignment Dowel
    • Require Quantity: 2
  • 12
    4328054
    STRIP, Belt Rear Corner Tacking, Right
    • STRIP, Belt Rear Corner Tacking, Right
  • 12
    4328055
    STRIP, Belt Rear Corner Tacking, Right
    • STRIP, Belt Rear Corner Tacking, Left
  • 13
    4296788
    TROUGH, w/Nut Deck Opening Upper Closure Panel Drain
  • 14
    T911EK1
    BACKLITE and SURROUND, Top w/o Electric Heated
    • Almond
  • 14
    T911EW3
    BACKLITE and SURROUND, Top w/o Electric Heated
    • White
  • 14
    T911EX9
    BACKLITE and SURROUND, Top w/o Electric Heated
    • Black
  • 15
    4296463
    PANEL, Deck Opening Upper
  • 15
    4366170
    SLING, Folding Top Well, Black
    • SLING, Folding Top Well, Black
  • 15
    4366284
    SLING, Folding Top Well, Black
    • RETAINER, Folding Top Slingwell Outer
    • Require Quantity: 2
  • 15
    4398146
    SLING, Folding Top Well, Black
    • RETAINER, Folding Top Slingwell To Rear Seat Back
  • 16
    T899CW3
    MOULDING, #3 Bow Feature Strip
    • White
  • 16
    T899CX9
    MOULDING, #3 Bow Feature Strip
    • Black
  • 16
    T899DK1
    MOULDING, #3 Bow Feature Strip
    • Almond
  • 16
    4319701
    SPACER, Belt Rear Tacking Strip to Trough
    • Require Quantity: 2
  • 17
    4319706
    COVER, Folding Top
    • PAD, Side Stay, Right
  • 17
    4319707
    COVER, Folding Top
    • PAD, Side Stay, Left
  • 17
    4319718
    COVER, Folding Top
    • WEB, Quarter Stay
    • Require Quantity: 2
  • 17
    T926EK1
    COVER, Folding Top
    • Almond
  • 17
    T926EW3
    COVER, Folding Top
    • White
  • 17
    T926EX9
    COVER, Folding Top
    • Black
  • 17
    4319709
    STRIP, Belt Rear Tacking
  • 18
    6100577
    BOLT and WASHER
    • Require Quantity: 11
  • 18
    4097794
    BOW, Folding Top #2
    • RETAINER, Folding Top Listing
  • 18
    4341247
    BOW, Folding Top #2
    • BOW, Folding Top #2
  • 19
    4097794
    BOW, Folding Top #1
    • RETAINER, Folding Top Listing
  • 19
    4341246
    BOW, Folding Top #1
    • BOW, Folding Top #1
  • 20
    4097743
    TUBE, Folding Top Hydraulic Cylinder
    • Require Quantity: 2
  • 21
    4097653
    MOTOR and PUMP, Folding Top Hydraulic Lift
    • MOTOR and PUMP, Folding Top Hydraulic Lift
  • 21
    4097654
    MOTOR and PUMP, Folding Top Hydraulic Lift
    • SEAL, Folding Top Hydraulic Lift Motor & Pump
  • 21
    4221691
    MOTOR and PUMP, Folding Top Hydraulic Lift
    • RELAY, Folding Top Hydraulic Lift Motor & Pump
  • 21
    6032114
    MOTOR and PUMP, Folding Top Hydraulic Lift
    • SCREW, Folding Top Motor Ground Strap
  • 22
    4317822
    BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Right
    • BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Right
  • 22
    4317823
    BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Right
    • BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Left
  • 22
    6031218
    BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Right
    • BOLT, Brace to Floor Reinforcement
    • Require Quantity: 4
  • 22 Chrysler 6100276
    6100276
    BRACE, Quarter Inner Extension to Floor Rear Outer Reinforcement, Right
    • SCREW, w/Washer Brace to Quarter Inner
    • Require Quantity: 4
    • Package Quantity: 1
    • Replaced By: 6102001
    $8.30 $5.62
    1
    Add To Cart
  • 24
    4341320
    RAIL and LINKAGE, Folding Top Side, Right
    • RAIL and LINKAGE, Folding Top Side, Right
  • 24
    4341321
    RAIL and LINKAGE, Folding Top Side, Right
    • RAIL and LINKAGE, Folding Top Side, Left
  • 25
    4341248
    BOW, Folding Top #3
    • BOW, Folding Top #3
  • 25
    6032862
    BOW, Folding Top #3
    • SCREW
    • Require Quantity: 2
  • 26
    4097591
    CAP, #3 Bow Feature Strip Moulding End
    • Require Quantity: 2
  • 27
    4328880
    MOULDING, Quarter Belt (See Group 23-Exterior Illustrations)
    • FASTENER, Folding Top Boot to Belt Moulding (BOOT, Folding Top Cover)
    • Fitting Vehicle Options: 27
    • Require Quantity: 6
  • 27
    T940EA2
    MOULDING, Quarter Belt (See Group 23-Exterior Illustrations)
    • Silver (BOOT, Folding Top Cover)
  • 27
    T940EE8
    MOULDING, Quarter Belt (See Group 23-Exterior Illustrations)
    • Cordovan (BOOT, Folding Top Cover)
    • Fitting Vehicle Options: 27
  • 27
    T940EK1
    MOULDING, Quarter Belt (See Group 23-Exterior Illustrations)
    • Almond (BOOT, Folding Top Cover)
    • Fitting Vehicle Options: 27
  • 27
    T940EW1
    MOULDING, Quarter Belt (See Group 23-Exterior Illustrations)
    • White (BOOT, Folding Top Cover)
    • Fitting Vehicle Options: 27
