3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.ELECTRICAL STARTER 1.6 ENGINE

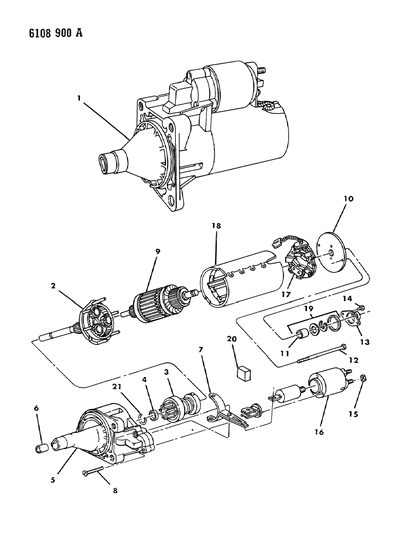

    1986 Dodge Caravan Starter Diagram 1
  • 2.ELECTRICAL STARTER 2.5 ENG. & 2.2 ENG. S BODY 5226444
    1986 Dodge Caravan Starter Diagram 2
  • 3.ELECTRICAL STARTER 318 ENGINE CHRYSLER NO. 4145360
    1986 Dodge Caravan Starter Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4145360
    STARTER
    • STARTER
  • 1
    5213301
    STARTER
    • STARTER
  • 1
    5226444
    STARTER
    • STARTER
  • 1
    R0171375
    STARTER
    • REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  • 2
    5213770
    BRACKET, Starter
  • 2
    5227114
    EPICYCLOIDAL GEAR TRAIN
  • 3
    5227115
    OVERRUNNING CLUTCH DRIVE
  • 3
    4145360
    STARTER
  • 3
    R0171375
    STARTER
  • 3
    5213773
    STOPPER SET, Starter
  • 4
    5213774
    CLUTCH and BRACKET, Starter
  • 4
    0272235
    NUT
  • 4
    5227116
    SINTERED METAL BUSHING
    • Require Quantity: 2
  • 5
    5227269
    DRIVE END SHIELD
  • 5
    5213776
    LEVER
  • 6
    6023899
    SCREW, w/Washer
  • 6
    5213388
    SINTERED METAL BUSHING
  • 6
    5213779
    SPRING SET
  • 7
    5213780
    ARMATURE
  • 7
    5227119
    FORK LEVER
  • 8
    5227120
    SCREW, Flat Head
    • Require Quantity: 2
  • 8
    2095875
    STUD, Mtg. 7/16 x 2.00
  • 8
    5213781
    WASHER SET
  • 9
    5227125
    ARMATURE
  • 9
    5213782
    YOKE SET,w/Pos.Brush Holder
  • 10
    5213785
    BRUSH HOLDER and BRUSHES
  • 10
    5227126
    COMMUTATOR END SHIELD
  • 10
    Dodge 6025001
    6025001
    NUT and WASHER
  • 11
    5213788
    BRACKET, Rear
  • 11
    4140724
    SHIELD STARTER
  • 11
    5227127
    SINTERED METAL BUSHING
  • 12
    5213792
    HOLDER, Brush Screw (M5)
    • Require Quantity: 2
  • 12
    2095133
    PIN, Shifting Fork Pivot
  • 12
    5227128
    THRU BOLT
    • Require Quantity: 2
  • 13
    5213793
    BOLT, Thru (M6)
    • Require Quantity: 2
  • 13
    5227356
    CLOSURE CAP
  • 13
    3755261
    HOUSING and BEARING, Gear
  • 14
    4057940
    CORE and SHIFTING FORK PKG.
  • 14
    5227130
    SCREW, Oval Head
    • Require Quantity: 2
  • 14
    5213794
    SWITCH, Magnetic
  • 15
    3874817
    BEARING, Pinion Housing
    • BEARING, Pinion Housing
    • Require Quantity: 2
  • 15
    3874818
    BEARING, Pinion Housing
    • Gear Housing
  • 15
    5227357
    NUT, Hexagon
  • 15
    5213795
    PACKING SET
  • 16
    2932814
    CONTACT and SPRING PACKAGE
    • Require Quantity: 2
  • 16
    5213796
    SCREW, Magnetic Switch (M6)
    • Require Quantity: 2
  • 16
    5226607
    SOLENOID SWITCH
  • 17
    5227131
    BRUSH HOLDER
  • 17
    3837337
    SOLENOID PACKAGE
  • 17
    5213797
    SUPPORT
  • 18
    5227132
    STATOR FRAME
  • 18
    3579193
    STUD PACKAGE
  • 19
    5227134
    PARTS SET
  • 19
    6022006
    RING, Pinion Shaft Ret.
  • 20
    2275558
    THRUST WASHER and RING PKG.
  • 21
    4145978
    CLUTCH ASSEMBLY
    • CLUTCH ASSEMBLY
  • 21
    R0231020
    CLUTCH ASSEMBLY
    • REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  • 22
    2095116
    COVER, Gear Housing
  • 24
    2095130
    RING, Clutch Actuator Ret.
  • 25
    2095117
    SNAP RING, Pinion Shaft Gear Ret.
  • 26
    4106092
    GEAR and SNAP RING PACKAGE, 4145360 Starter
  • 27
    3755256
    WASHER, Pinion Shaft Gear w/4145360 Starter
  • 28
    4091914
    SHAFT, Pinion
  • 29
    0153468
    SCREW, w/Washer
    • Require Quantity: 2
  • 30
    2084666
    SPRING PACKAGE
  • 31
    3874345
    BRUSH HOLDER
  • 32
    6030160
    SCREW, 3/8-16.66
    • Require Quantity: 4
  • 33
    4111959
    FRAME and FIELD, w/4145360 Starter
  • 34
    3837334
    ARMATURE, w/4145360 Starter
  • 35
    3837340
    THRUST WASHER PACKAGE
  • 36
    3755231
    SCREW, 1/4-20x5.42 w/4145360 Starter
    • Require Quantity: 2
  • 37
    2095076
    HEAD, End
  • 38
    6022006
    RING, Armature Gear Ret. w/4145360
  • 4240449
    CLUTCH and SHIFTING FORK PKG.
    • CLUTCH and SHIFTING FORK PKG.
  • R0231020
    CLUTCH and SHIFTING FORK PKG.
    • REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  • 2875558
    SEAL, Solenoid
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Caravan parts. Parts like Starter are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
