8 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

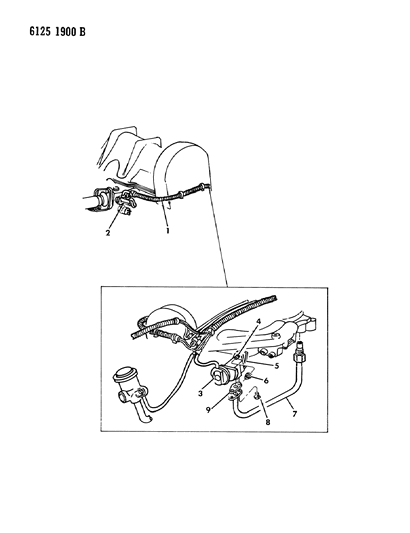

- 1.EMISSION SYSTEMS EGR SYSTEM 1.6L ENGINE
- 2.EMISSION SYSTEMS EGR SYSTEM 2.2L ENGINE - CALIF. AND HIGH ALT. S BODY
- 3.EMISSION SYSTEMS EGR SYSTEM 2.2L ENGINE - FEDERAL AND CANADA S BODY
- 4.EMISSION SYSTEMS EGR SYSTEM 2.2L ENGINE EFI AND 2.5L ENGINE
- 5.EMISSION SYSTEMS EGR SYSTEM 2.6L ENGINE - CALIF.
- 6.EMISSION SYSTEMS EGR SYSTEM 2.6L ENGINE - EXC. CALIF.
- 7.EMISSION SYSTEMS EGR SYSTEM 318 ENGINE 2BBL.
- 8.EMISSION SYSTEMS EGR SYSTEM 318 ENGINE 4BBL.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
1
MD025274
VALVE ASSEMBLY, Solenoid
2
MD025273
SENSOR, Engine Speed
2
4289087
SOLENOID, Dual Vacuum
2
3879736
SWITCH, CVSCC (Hole #1)
2
4049208
SWITCH, CVSCO - Orange
3
4275529
CLIP, Transducer Valve
3
3879736
SWITCH, CVSCC - Yellow
3
4049208
SWITCH, CVSCO (Hole #2)
4
MD088084
HOSE ASSEMBLY, Vacuum
4
MD025273
SENSOR, Engine Speed
4
4213597
TUBE, EGR Valve to Intake Manifold Cover
5
6031943STUD, EGR Valve Attach 5
115729NUT- Require Quantity:
2
- Package Quantity:
1
6
7
MF241236
BOLT and WASHER (6x45)
7
4201313
GASKET, EGR Valve to Exhaust Manifold
8
6500579STUD, EGR Tube to Intake Manifold
9
MF241236BOLT and WASHER (6x14)
9
3671448
COVER, EGR Valve Flange
9
4201384
GASKET, EGR Valve to Tube Flange
9
4213599
GASKET, Tube to Intake Manifold
9
MS632812
HOSE, Vacuum - Green (120)
10
4201384
GASKET, EGR Valve to Tube Flange
10
MD088102
HOSE ASSEMBLY, Vacuum
10 ![Dodge 6500363](/resources/encry/part-picture/mpg/large/41d4de0ee18ff6ebc84e24ad03497f71/2f90aabee8c6f70694f1cb848d85c4df.png)
6500363NUT- Require Quantity:
2
- Package Quantity:
1
- Replaced By:
6504152
10
4287807VALVE, EGR w/Transducer 10
4287808VALVE, EGR w/Transducer
12
4201384
GASKET, EGR to Tube Flange
12
MD100731HOSE ASSEMBLY, Vacuum 12
MD100732HOSE ASSEMBLY, Vacuum
13
4241191
BRACKET, Amplifier Mounting
14
4105167
HOSE, Rubber 3/16" (serv. in 50 ft. roll)
14
MD097338
VALVE, Vacuum Switching
15
MD100733
BRACKET ASSEMBLY, VSV
15
4306339
TUBE, Throttle Body to Transducer
16
MD097330
VALVE ASSEMBLY, Thermo
19
4167046VALVE, Vacuum Delay 19
4173448VALVE, Vacuum Delay
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986
Dodge Caravan parts. Parts like EGR System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
