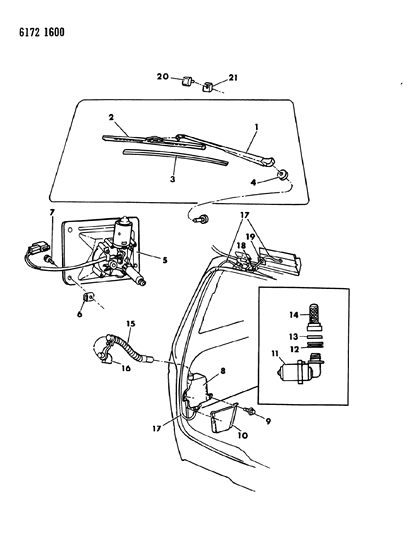

Diagram (1 of 1): WIPER - WASHER AND CYLINDER & KEYS LIFTGATE WIPER AND WASHER SYSTEM S BODY

1986 Dodge Caravan Liftgate Wiper & Washer System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4270441
ARM, Wiper

2
WBF00016AA
BLADE and REFILL, Wiper
Mopar Alternative Flat Wiper Blade
Replaced By: WBF00016AB
$31.70 $21.47
1
Add To Cart
2
WB000016AE
BLADE and REFILL, Wiper
- Mopar V-Line Alternative Part
- Replaced By: 1BP00671AA
$7.70 $5.22
1
Add To Cart
2
4334773
BLADE and REFILL, Wiper
- BLADE and REFILL, Wiper

3
4270471
REFILL, Wiper Blade

4
4270459
GROMMET, Wiper Drive

5
4270437
MOTOR and BRACKET, Wiper
MOTOR and BRACKET, Wiper
5
R4270437
MOTOR and BRACKET, Wiper
- MOTOR, Wiper

8
4270448
RESERVOIR, Washer

9
6031951
SCREW
- Require Quantity: 2

10
4270799
COVER, Reservoir Pump

11
4762319
PUMP, Washer

14
3799324
FILTER and NUT, Pump

15
3799679
TUBE, Filler

16
3799726
CAP, Reservoir

17
3780798
HOSE, Washer

18
3799520
GROMMET, Hose to Body
$5.50 $4.32
1
Add To Cart

19
5211041
GROMMET, Hose to Liftgate

20
3799682
NOZZLE, Washer

21
4270428
GROMMET, Nozzle

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Caravan parts. Parts like Liftgate Wiper & Washer System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
