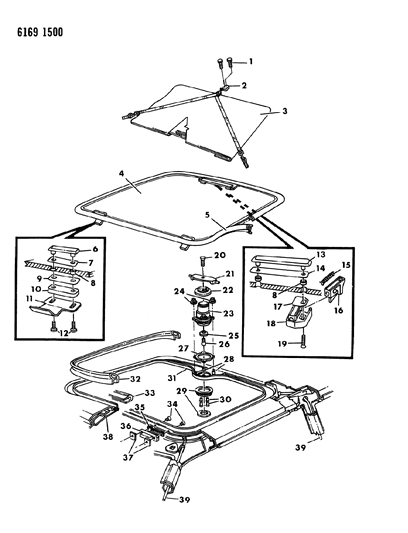

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS SUN ROOF L BODY 24
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
5216587BRACKET, Stowage Bag D-Ring Retainer
3
E858BX7
BAG, Stowage (Black)
4
5207474PANEL, Glass w/Frame (Bonded)- PIN, Glass Frame Connecting
- Require Quantity: 2
4
5232068PANEL, Glass w/Frame (Bonded)- PANEL, Glass w/Frame (Bonded)
5
5232046
SEAL, Sun Roof (Secondary)
6-12
4106874HINGE and T-PLATE, Includes Items 6-12
14
5207368
GASKET, Latch T/Plate
15
4106872HOUSING and LATCH, Includes Items 15-19, Right- HOUSING and LATCH, Includes Items 15-19, Right
15
4106873HOUSING and LATCH, Includes Items 15-19, Right- HOUSING and LATCH, Includes Items 15-19, Left
22
4341037
GASKET and RETAINER, Adjuster
23
4341035
ADJUSTER, Latch (Includes Items #20-23 & 25,26)
24
6501140NUT- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 6100515
25
5232094
WASHER, Latch Striker Stop
27
5232052
GASKET, Latch Adjuster To Trough
29
H808BX9
HANDLE, Latch Adjuster (Complete)
31
4341325
PANEL and TROUGH, Roof Includes Item 28
32
5207319
SEAL, Sun Roof (Primary)
33
H611BA2WELT, Headliner Opening, Silver- WELT, Headliner Opening, Silver
33
H611BB5WELT, Headliner Opening, Silver 33
H611BM6WELT, Headliner Opening, Silver 33
H611CS8WELT, Headliner Opening, Silver 33
H611DT3WELT, Headliner Opening, Silver
35
5232050GASKET, Hinge Receiver, Right- GASKET, Hinge Receiver, Right
35
5232051GASKET, Hinge Receiver, Right- GASKET, Hinge Receiver, Left
36
5207374RECEIVER, Hinge (Includes Items #35 & 37), Right- RECEIVER, Hinge (Includes Items #35 & 37), Right
36
5207375RECEIVER, Hinge (Includes Items #35 & 37), Right- RECEIVER, Hinge (Includes Items #35 & 37), Left
37
5207378PLATE, Hinge Receiver
