2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

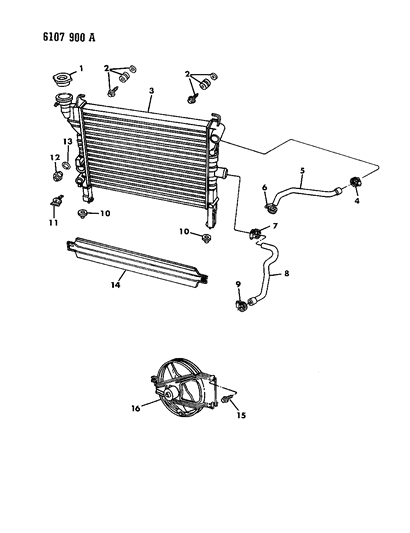

- 1.COOLING RADIATOR AND RELATED PARTS 1.6L ENGINE AND 2.2L ENGINE W/O AIR CONDITIONING L BODY

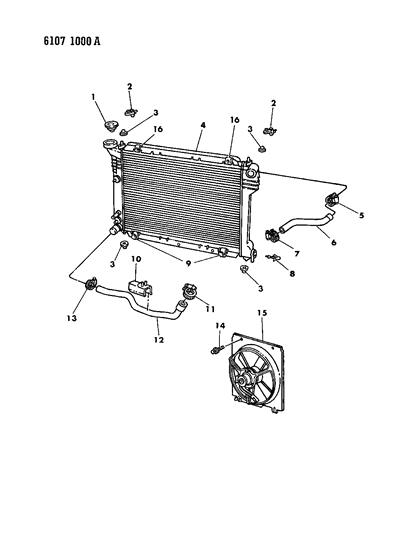

- 2.COOLING RADIATOR AND RELATED PARTS 2.2L ENGINE W/AIR COND. OR HI/PERF. OR TURBO L BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4140566BRACKET, Radiator Upper Mounting 2
4140567BRACKET, Radiator Upper Mounting
2
4266418
ISOLATOR, Radiator Mounting - Upper
3
4140427ISOLATOR, Radiator Mounting
3
4266534RADIATOR (Includes #'s 1,2,10,11,12,13,14)- stamped 4266534 - 1.6L Eng.
3
4266537RADIATOR (Includes #'s 1,2,10,11,12,13,14)- stamped 4266536, 4266537 - 2.2L Eng. w/(S/C - EDE)
4
3683824
CLAMP, Inlet Hose (Rad. End)
4
4266577
RADIATOR (Includes #'s 1,3,8,9,16)
5
3683824
CLAMP, Inlet Hose (Rad. End)
5
5
5
H0061309HOSE, Inlet- Mopar V-Line Alternative Part
6
6032229
CLAMP, Inlet Hose (Eng. End)
6
4266346
HOSE, Inlet (H0061284)
6
7
6032229
CLAMP, Inlet Hose (Eng. End)
8
8
H0061283HOSE, Outlet- Mopar V-Line Alternative Part
8
H0061310HOSE, Outlet- Mopar V-Line Alternative Part
9
9
4266212CLIP, Spring - Bottom Shroud Mounting
10
4266419ISOLATOR, Radiator Mounting - Lower
11
12
4266262HOSE, Outlet (H0061154) 12
H0061154HOSE, Outlet (H0061154)- Mopar V-Line Alternative Part
12
4221445
SWITCH, Radiator Temperature Fan 1.6L Eng.
13
4221446
GASKET, Radiator Temperature Fan Switch 1.6L Eng.
14
4266173
SHIELD, Radiator Lower Air - Man. Trans.
15
3747999FAN-MOTOR-SHROUD ASSEMBLY 15
4240494FAN-MOTOR-SHROUD ASSEMBLY 15
4266282FAN-MOTOR-SHROUD ASSEMBLY 15
4266456FAN-MOTOR-SHROUD ASSEMBLY 15
4339437FAN-MOTOR-SHROUD ASSEMBLY 4339499FAN-MOTOR-SHROUD ASSEMBLY 15
4419167FAN-MOTOR-SHROUD ASSEMBLY 6500377FAN-MOTOR-SHROUD ASSEMBLY
16
4266462FAN-MOTOR-BRACKET ASSEMBLY- FAN (stamped 4266655 consists of:)
16
16
4318110FAN-MOTOR-BRACKET ASSEMBLY- BRACKET (stamped 4266655 consists of:)
6500377
FAN-MOTOR-BRACKET ASSEMBLY
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986
Dodge Charger parts. Parts like Radiator & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
