2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

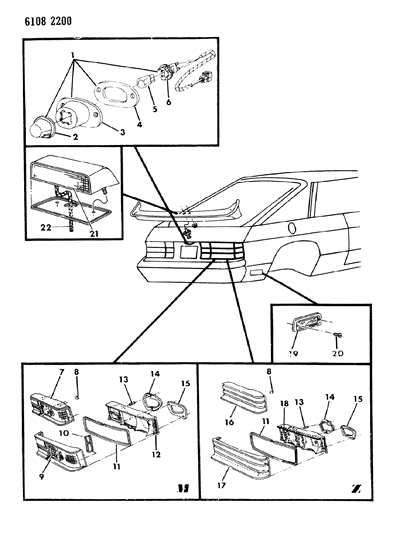

  • 1.ELECTRICAL LAMPS & WIRING--REAR L BODY--24
    1986 Dodge Charger Lamps & Wiring - Rear Diagram 1

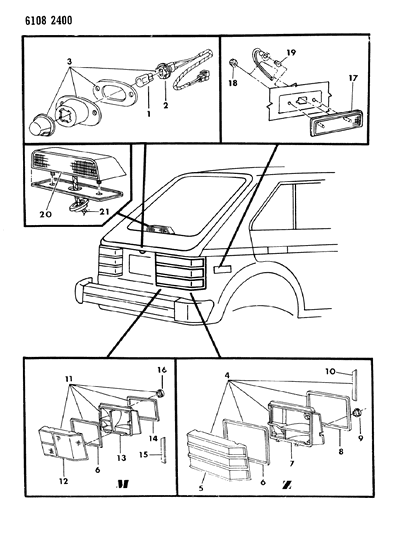

  • 2.ELECTRICAL LAMPS & WIRING--REAR L BODY--44
    1986 Dodge Charger Lamps & Wiring - Rear Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 4
    5207656
    LAMP ASSEMBLY, Right
    • LAMP ASSEMBLY, Right
  • 4
    5207657
    LAMP ASSEMBLY, Right
    • LAMP ASSEMBLY, Left
  • 5
    5207662
    LENS, Right
    • LENS, Right
  • 5
  • 5
    5207740
    LENS, Right
    • EXPORT, Right
  • 5
    5207741
    LENS, Right
    • EXPORT, Left
  • 6
    3798253
    SEAL
    • Require Quantity: 2
  • 7
    5207526
    HOUSING ASSEMBLY, (Serv. in #4)
    • EXPORT, Right
    • Require Quantity: 2
  • 7
    5207527
    HOUSING ASSEMBLY, (Serv. in #4)
    • EXPORT, Left
    • Require Quantity: 2
  • 7
    5207564
    LAMP|EXPORT, Right
    • LAMP|EXPORT, Right
  • 7
    5207565
    LAMP|EXPORT, Right
    • LAMP|EXPORT, Left
  • 7
    5207788
    LAMP|EXPORT, Right
    • LAMP ASSY., Right
  • 7
    5207789
    LAMP|EXPORT, Right
    • LAMP ASSY., Left
  • 8
    6023205
    NUT
    • Require Quantity: 8
  • 8
    3798253
    SEAL, (Also Serv. in Housing Assy.)
  • 9
    5207778
    LENS, Right
    • LENS ASSY.|EXPORT, Right
  • 9
    5207779
    LENS, Right
    • LENS ASSY.|EXPORT, Left
  • 9
    5207790
    LENS, Right
    • LENS, Right
  • 9
    5207791
    LENS, Right
    • LENS, Left
  • 10
    5207620
    WELT
  • 11
    5207648
    LAMP ASSEMBLY, Right
    • LAMP ASSEMBLY, Right
  • 11
    5207649
    LAMP ASSEMBLY, Right
    • LAMP ASSEMBLY, Left
  • 11
    3798253
    SEAL, Adhesive Type 33" Long (Also Serviced in Lamp Assy.)
    • Require Quantity: 2
  • 12
    5207540
    LENS, Right
    • EXPORT, Right
  • 12
    5207541
    LENS, Right
    • EXPORT, Left
  • 12
    5207654
    LENS, Right
    • LENS, Right
  • 12
    5207655
    LENS, Right
    • LENS, Left
  • 13
    5207526
    HOUSING ASSEMBLY, (Serv. in #11)
    • EXPORT, Right
  • 13
    5207527
    HOUSING ASSEMBLY, (Serv. in #11)
    • EXPORT, Left
  • 14
    5207626
    GASKET, Inboard (Also Serviced in Lamp Assy.)
    • Require Quantity: 2
  • 14
    3798253
    SEAL
  • 15
    5207628
    GASKET, Outboard (Also Serviced in Lamp Assy.), Right
    • GASKET, Outboard (Also Serviced in Lamp Assy.), Right
  • 15
    5207629
    GASKET, Outboard (Also Serviced in Lamp Assy.), Right
    • GASKET, Outboard (Also Serviced in Lamp Assy.), Left
  • 15
    5207666
    WELT, Right
    • WELT, Right
    • Require Quantity: 2
  • 15
    5207667
    WELT, Right
    • WELT, Left
    • Require Quantity: 2
  • 16
    5207564
    LAMP|EXPORT, Right
    • LAMP|EXPORT, Right
  • 16
    5207565
    LAMP|EXPORT, Right
    • LAMP|EXPORT, Left
  • 16
    5207786
    LAMP|EXPORT, Right
    • LAMP, Right
  • 16
    5207787
    LAMP|EXPORT, Right
    • LAMP, Left
  • 17
    5207780
    LAMP, Qtr. Pnl. Side Marker
  • 17
    5207588
    LENS, Right
    • LENS ASSY.|EXPORT, Right
  • 17
    5207589
    LENS, Right
    • LENS ASSY.|EXPORT, Left
  • 17
    5207784
    LENS, Right
    • LENS, Right
  • 17
    5207785
    LENS, Right
    • LENS, Left
  • 18
    6029471
    NUT
    • Require Quantity: 4
    • Package Quantity: 1
  • 19
    Dodge 9425542
    Dodge 9425542
    Dodge 9425542
    9425542
    BULB, #168
    • Require Quantity: 2
    • Package Quantity: 1
    • Replaced By: L0000168
    $9.25 $6.35
    1
    Add To Cart
  • 19
    4174820
    REFLECTOR, Qtr. Pnl. Side Marker
  • 20
    X136EX8
    LAMP, Lift Gate High Mounted Stop Lamp (Black)
  • 21
    X135EX8
    LAMP, Center Hi-Mounted Stop (Black)
  • 21
    4368534
    WIRING, Lift Gate Hi Mtd. Stop Lamp
  • 22
    4368542
    WIRING, Socket & Cable Ctr. Hi-Mtd. Stop Lamp
  • 4368539
    CLIP
  • 6023205
    NUT, Hi-Mtd. Stop Lamp
  • 5207533
    TAPE, Lift Gate Opening
  • 4368540
    WIRING, Liftgate Hi-Mtd. Stop Lamp
  • 4368538
    WIRING, Rear Body Liftgate Hi-Mtd. Stop Lamp
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Lamps & Wiring - Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
