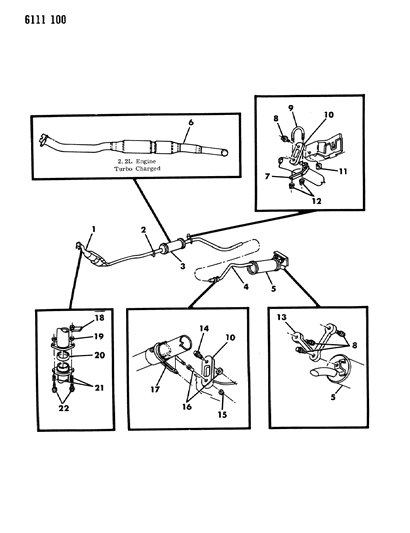

Diagram (1 of 1): EXHAUST EXHAUST SYSTEM L BODY

1986 Dodge Charger Exhaust System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4150965
CONVERTER, Catalytic w/Pipes - Front
1.6L Eng. w/(S/C - NAA) - Canada
1
4301324
CONVERTER, Catalytic w/Pipes - Front
- 1.6L Eng.
1
4301425
CONVERTER, Catalytic w/Pipes - Front
- 2.2L Eng. w/(S/C - EDE) w/(S/C - NAA) - Canada
1
4301470
CONVERTER, Catalytic w/Pipes - Front
- 2.2L Eng. w/(S/C - EDE, EDJ) w/(S/C - NAA, NAE, NAF)
1
E0015544
CONVERTER, Catalytic w/Pipes - Front
- Mopar V-Line Alternative Part Direct Fit Converter
1
E0015648
CONVERTER, Catalytic w/Pipes - Front
- Mopar V-Line Alternative Part Direct Fit Converter

2
4301378
CLAMP exc. w/(S/C - EDG)

3
4301220
PIPE, Exhaust Extension
1.6L Eng.
2.2L Eng. w/(S/C - EDE) w/(S/C - NAA) - Canada
2.2L Eng. w/(S/C - EDE) w/(S/C - NAU) w/o (S/C - NEB)
Fitting Vehicle Options: 24
3
4301221
PIPE, Exhaust Extension
- 1.6L Eng.
  2.2L Eng. w/(S/C - EDE) w/(S/C - NAU)
- Fitting Vehicle Options: 44
3
4301223
PIPE, Exhaust Extension
- 2.2L Eng. w/(S/C - EDE) w/(S/C - NAA) - Canada (w/Resonator)
  2.2L Eng. w/(S/C - EDE) w/(S/C - NEB, NAU) (w/Resonator)
  2.2L Eng. w/(S/C - EDJ) w/(S/C - NAU) (w/Resonator)
- Fitting Vehicle Options: 24
3
4301224
PIPE, Exhaust Extension
- 2.2L Eng. w/(S/C - EDE) w/(S/C - NAA) - Canada (w/Resonator)
  2.2L Eng. w/(S/C - EDJ) w/(S/C - NEB) (w/Resonator)
- Fitting Vehicle Options: 44
3
E0044798
PIPE, Exhaust Extension
- Mopar V-Line Alternative Part
  Mopar V-Line Alternative Part (w/Resonator)
- Fitting Vehicle Options: 24
3
E0044799
PIPE, Exhaust Extension
- Mopar V-Line Alternative Part
- Fitting Vehicle Options: 44

4
4150438
PIPE, Tail
PIPE, Tail
Fitting Vehicle Options: 24
4
4150439
PIPE, Tail
- Fitting Vehicle Options: 44
4
E0042591
PIPE, Tail
- Mopar V-Line Alternative Part
- Fitting Vehicle Options: 44
4
E0043808
PIPE, Tail
- Mopar V-Line Alternative Part
- Fitting Vehicle Options: 24

5
4301312
MUFFLER
1.6L Eng.
2.2L Eng. w/(S/C - EDE)
2.2L Eng. w/(S/C - EDE) w/o (S/C - NEB)
Fitting Vehicle Options: 24, 44
5
4301397
MUFFLER
- PIPE, Tail w/Muffler 2.2L Eng. w/(S/C - EDG)
- Fitting Vehicle Options: 24
5
4301474
MUFFLER
- Fitting Vehicle Options: 44
5
4301563
MUFFLER
- 2.2L Eng. w/(S/C - EDJ)
5
4301566
MUFFLER
- 2.2L Eng. w/(S/C - EDE) w/(S/C - NEB)
- Fitting Vehicle Options: 24
5
E0022400
MUFFLER
- Mopar V-Line Alternative Part Muffler
- Fitting Vehicle Options: 24, 44

6
4301395
CONVERTER, Catalytic w/Pipes - Rear 2.2L Eng. w/(S/C - EDG)
CONVERTER, Catalytic w/Pipes - Rear 2.2L Eng. w/(S/C - EDG)
Fitting Vehicle Options: 24
6
4301396
CONVERTER, Catalytic w/Pipes - Rear 2.2L Eng. w/(S/C - EDG)
- Fitting Vehicle Options: 44
6
E0015732
CONVERTER, Catalytic w/Pipes - Rear 2.2L Eng. w/(S/C - EDG)
- Mopar V-Line Alternative Part Direct Fit Converter
- Fitting Vehicle Options: 24

7
4301595
SUPPORT, Extension Pipe
exc. w/(S/C - EDG)
7
4301596
SUPPORT, Extension Pipe
- w/(S/C - EDG)

8
6500202
SCREW

9
4301556
U-BOLT
exc. w/(S/C - EDG)
9
4301557
U-BOLT
- w/(S/C - EDG)

10
5217108
INSULATOR
INSULATOR
10
E0035114
INSULATOR
- Mopar V-Line Alternative Part

11
6101283
U-NUT
- Require Quantity: 3
- Package Quantity: 1

12
6500274
NUT
- Require Quantity: 2
- Package Quantity: 1

13
4150798
INSULATOR, Tail Pipe Rear Support
w/(S/C - EDG)
Fitting Vehicle Options: 24
13
5217133
INSULATOR, Tail Pipe Rear Support
- exc. w/(S/C - EDG)
  w/(S/C - EDG)
- Fitting Vehicle Options: 44
13
E0035706
INSULATOR, Tail Pipe Rear Support
- Mopar V-Line Alternative Part
- Fitting Vehicle Options: 24

14
6500306
SCREW

15
6500305
NUT

16
4131336
SPACER, Tail Pipe Front Support Insulator

17
4150335
SUPPORT, Tail Pipe Front
exc. w/(S/C - EDG)
17
4301401
SUPPORT, Tail Pipe Front
- w/(S/C - EDG)

18
4301250
NUT w/(S/C - EDG) - Lt.

19
6100499
NUT
exc. w/(S/C - EDG)
Require Quantity: 2
Package Quantity: 1
$25.01 $19.35
1
Add To Cart
19
6100499
NUT
- w/(S/C - EDG) - Rt.
$25.01 $19.35
1
Add To Cart

20
4301350
RING, Seal
exc. w/(S/C - EDG)
20
4301436
RING, Seal
- w/(S/C - EDG)
20
E0031361
RING, Seal
- Mopar V-Line Alternative Part
20
E0031379
RING, Seal
- Mopar V-Line Alternative Part

21
4301631
SPRING
SPRING
Require Quantity: 2
Package Quantity: 1
$11.25 $8.84
1
Add To Cart
21
E0035281
SPRING
- Mopar V-Line Alternative Part

22
5217003
BOLT
BOLT
Require Quantity: 2
Package Quantity: 1
22
E0035280
BOLT
- Mopar V-Line Alternative Part

4301394
PIPE, Exhaust 2.2L Eng. w/(S/C - EDG)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Exhaust System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
