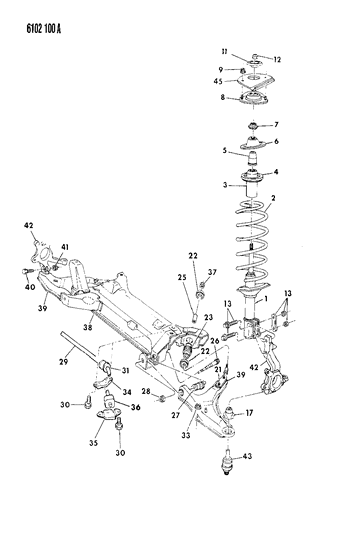

Diagram (1 of 1): FRONT SUSPENSION & DRIVE SUSPENSION, FRONT L BODY

1986 Dodge Charger Suspension - Front Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4052647
SHOCK ABSORBER , Std. Susp.
SHOCK ABSORBER , Std. Susp.
Require Quantity: 2
1
4322271
SHOCK ABSORBER , Std. Susp.
- w/Extra Heavy Duty Susp.
- Require Quantity: 2
1
4419958
SHOCK ABSORBER , Std. Susp.
- w/GLHS (Koni)
- Fitting Vehicle Options: 44
- Require Quantity: 2
1
5204734
SHOCK ABSORBER , Std. Susp.
- w/Heavy Duty Susp.
- Require Quantity: 2
1
G0067507
SHOCK ABSORBER , Std. Susp.
- Mopar V-Line Alternative Part

2
4014451
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
Std., Lt.
2
4014452
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- Std., Rt.
  w/o Air, Std., Rt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/o Air, Std., Rt. (See Note 1) (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
2
4014454
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- w/Air, Std., Lt. (See Note 1)
  w/Air, Std., Rt.
  w/Air, Std., Rt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/Air, Std., Rt. (See Note 1) (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/o Air, Std., Lt. (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/o Air, Std., Lt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/o Air, Std., Rt. (SPRING, 2.2L Eng.(Auto.Trans.))
2
4014456
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- w/Air, Std., Lt. (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/Air, Std., Lt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/Air, Std., Lt. (See Note 1) (SPRING, 2.2L Eng.(Auto.Trans.))
  w/Air, Std., Rt. (SPRING, 2.2L Eng.(Auto.Trans.))
  w/o Air, Std., Lt. (SPRING, 2.2L Eng.(Auto.Trans.))
2
4052742
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- H.D., Rt. (See Note 1)
  w/o Air, H.D. or Firm Feel, Rt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/o Air, H.D. or Firm Feel, Rt. (See Note 1) (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
2
4052744
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- H.D., Lt.
  w/Air, H.D. or Firm Feel, Lt. (See Note 1)
  w/Air, H.D. or Firm Feel, Rt.
  w/Air, H.D. or Firm Feel, Rt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/Air, H.D. or Firm Feel, Rt. (See Note 1) (SPRING, 2.2L Eng.(Auto.Trans.))
  w/Air, H.D. or Firm Feel, Rt. (See Note 1) (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/o Air, H.D. or Firm Feel, Lt. (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/o Air, H.D. or Firm Feel, Lt. (See Note 1) (SPRING, 1.6L Eng. (Auto Trans.))
  w/o Air, H.D. or Firm Feel, Rt. (SPRING, 2.2L Eng.(Auto.Trans.))
2
4052746
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- w/Air, H.D. or Firm Feel, Lt. (SPRING, 1.6L Eng. (Auto Trans.))
  w/Air, H.D. or Firm Feel, Lt. (SPRING, 2.2L or 2.2L H.P. Eng. (Man. Trans.))
  w/Air, H.D. or Firm Feel, Lt. (See Note 1) (SPRING, 2.2L Eng.(Auto.Trans.))
  w/o Air, H.D. or Firm Feel, Lt. (SPRING, 2.2L Eng.(Auto.Trans.))
2
4322036
SPRING, 1.6 Eng. (Man.Trans.Only) w/o Air
- w/Air, Lt. (SPRING, 2.2 H.P. Eng. (Man. Trans.) Shelby)
  w/Air, Lt. (SPRING, 2.2L H.P. Eng. (Auto Trans.) Shelby)
  w/Air, Lt. (SPRING, 2.2L H.P. Eng. (Man. Trans.) Perf. Pkg.)
  w/Air, Rt. (SPRING, 2.2 H.P. Eng. (Man. Trans.) Shelby)
  w/Air, Rt. (SPRING, 2.2L H.P. Eng. (Auto Trans.) Shelby)
  w/Air, Rt. (SPRING, 2.2L H.P. Eng. (Man. Trans.) Perf. Pkg.)
  w/o Air, Lt. (SPRING, 2.2 H.P. Eng. (Man. Trans.) Shelby)
  w/o Air, Lt. (SPRING, 2.2L H.P. Eng. (Auto Trans.) Shelby)
  w/o Air, Lt. (SPRING, 2.2L H.P. Eng. (Man. Trans.) Perf. Pkg.)
  w/o Air, Rt. (SPRING, 2.2 H.P. Eng. (Man. Trans.) Shelby)
  w/o Air, Rt. (SPRING, 2.2L H.P. Eng. (Man. Trans.) Perf. Pkg.)
  w/o Air, Rt. (See Note 1) (SPRING, 2.2L H.P. Eng. (Auto Trans.) Shelby)
- Fitting Vehicle Options: Z-E44, Z-S24

3
4052997
SHIELD, Std. & H.D. Susp.
w/Extra Heavy Duty Susp.
Require Quantity: 2
3
5204610
SHIELD, Std. & H.D. Susp.
- SHIELD, Std. & H.D. Susp.
- Require Quantity: 2

4
4014441
SPACER, Sprg. Shock Upr. (Used Only on Replacement Springs in Note 1)
$31.76 $24.57
1
Add To Cart

5
4052996
BUMPER, Jounce w/Std. & H.D. Susp.
w/Extra Heavy Duty Susp.
Require Quantity: 2
5
5204608
BUMPER, Jounce w/Std. & H.D. Susp.
- BUMPER, Jounce w/Std. & H.D. Susp.
- Require Quantity: 2

6
4052931
RETAINER, Frt. Susp. Strut Damper Upper
- Require Quantity: 2

7
5204595
BEARING
- Require Quantity: 2

8
4318717
MOUNT, Front Shock Upper
- Require Quantity: 2

9
6100051
NUT, w/WASHER
- Require Quantity: 4
- Package Quantity: 1
$9.70 $6.70
1
Add To Cart

11
4052680
RETAINER, Shock Rebound Stop
- Require Quantity: 2

12
6501094
NUT, Shock Rod
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6505116AA
$14.40 $9.93
1
Add To Cart

13
4267335
ATTACHING PACKAGE, Frt. Shock
- Require Quantity: 2

17
4052509
SEAL, Ball Joint
- Require Quantity: 2

22
5204534
RETAINER, Arm Strut Bushing
- Require Quantity: 4

23
4322285
BUSHING, Arm Strut Frt.
- Require Quantity: 2

25
5204535
SLEEVE, Strut Bushing
- Require Quantity: 2

26
4014239
BOLT, Pivot Shaft
- Require Quantity: 2

27
5204622
BUSHING, Cont.Arm Pivot Shaft
- Require Quantity: 2

28
6500231
NUT, Pivot Bolt
- Require Quantity: 2

29
4322011
SHAFT, Frt. Susp. Sway Elim. w/All Susp.

30
6100579
BOLT, Clamp
- Require Quantity: 8

31
4322015
CUSHION, Shaft - Std. Susp.
CUSHION, Shaft - Std. Susp.
Require Quantity: 2
31
4322017
CUSHION, Shaft - Std. Susp.
- w/H.D., Extra H.D. & Firm Feel Susp.
- Require Quantity: 2

33
6500363
NUT, Bolt
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 6504152

34
4052522
CLAMP, Shaft Bushing, Lower
- Require Quantity: 2

35
4014418
RETAINER, Shaft Arm
- Require Quantity: 2

36
4322151
BUSHING, Sway Elim. To Control Arm

37
6100502
NUT, Strut
- Require Quantity: 2

39
4322154
ARM, Lower Control, Right
ARM, Lower Control, Right
39
4322155
ARM, Lower Control, Right
- ARM, Lower Control, Left

40
6501248
BOLT, Knuckle To Ball Joint
- Require Quantity: 2
- Package Quantity: 1
$13.20 $10.19
1
Add To Cart

41
6501247
NUT, Knuckle To Ball Joint Bolt
- Require Quantity: 2
- Package Quantity: 1
$8.55 $5.89
1
Add To Cart

42
4052844
KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Right
KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Right
42
4052845
KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Right
- KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Left
42
4322756
KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Right
- w/2.2 Turbo & 2.2 H/P w/Perf. Pkg., Right
42
4322757
KNUCKLE, Strg. w/1.6, 2.2, & 2.2 H/P w/o Perf. Pkg., Right
- w/2.2 Turbo & 2.2 H/P w/Perf. Pkg., Left

43
4364782
BALL JOINT
- Require Quantity: 2

4106180
END PACKAGE, (Not Shown)
- Require Quantity: 2
- Package Quantity: 1

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Charger parts. Parts like Suspension - Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L, 4 Cyl 2.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
