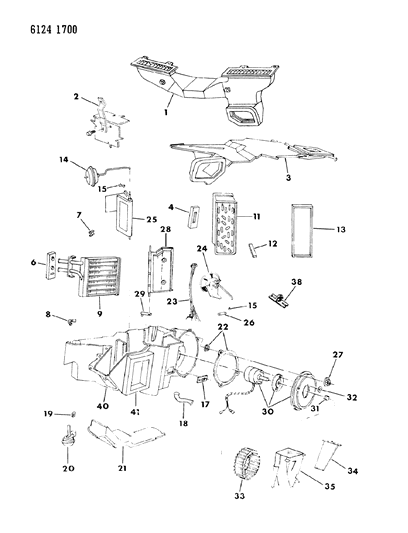

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONING AND HEATER UNIT L BODY
1986 Dodge Charger Air Conditioning & Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    5210046
    ADAPTER, A/C., Defroster Duct
  • 1
    3848832
    DUCT, w/Adapter, A/C., Defroster
  • 2
    5210051
    A/C
    BRACE, A/C. Unit Mounting To Plenum
  • 3
    5210428
    A/C
    COVER, A/C. Evaporator Recirc. Housing
  • 4
    3849066
    A/C
    SEAL, A/C. Unit To Dash at Coil Header
  • 6
    Dodge 5210109
    5210109
    A/C
    SEAL, A/C. Unit To Dash at Core Tubes
  • 7
    2521336
    A/C
    CLIP, A/C. Evaporator Housing Cover Mounting
    • Require Quantity: 2
  • 8
    3848827
    A/C
    TUBE, A/C. Unit Drain
  • 9 Dodge 3847943
    3847943
    CORE, A/C., Heater
    • CORE, A/C., Heater
      SEAL, A/C. Heater Core End
    $245.68 $193.07
    1
    Add To Cart
  • 9
    Dodge 3848093
    3848093
    CORE, A/C., Heater
    • SEAL, A/C. Heater Core To Housing
  • 11
    4339422
    A/C
    COIL, A/C. Evaporator Complete
  • 12
    5210073
    A/C
    SEAL, A/C. Evaporator Coil To Housing Bottom
    • Require Quantity: 2
  • 13
    3847116
    A/C
    SEAL, A/C. Evaporator Coil Header End
  • 14 Dodge 5210111
    5210111
    A/C
    ACTUATOR, A/C. Recirc. & Fresh Air Door
  • 15
    6008145
    A/C
    CLIP, A/C. Act. Shaft Return Fresh Air Door
  • 17
    3848995
    A/C
    RESISTOR, A/C. Blower Motor
  • 19
    Dodge 6031147
    Dodge 6031147
    6031147
    A/C
    RETAINER, A/C. Defroster Door Vacuum Actuator
    $1.55 $1.02
    1
    Add To Cart
  • 21
    5210055
    A/C
    DUCT, A/C., Heater Distribution
  • 24
    5210110
    A/C
    ACTUATOR, A/C. Mode Door
  • 25
    5210099
    A/C
    DOOR, w/Seal, A/C. Mode
  • 26
    5210112
    A/C
    LEVER, A/C. Mode Door
  • 27
    6006065
    A/C
    WASHER, A/C. Motor Mounting
    • Require Quantity: 6
  • 28 Dodge 5210395
    5210395
    A/C
    DOOR, A/C. Blend Air
    $66.60 $52.33
    1
    Add To Cart
  • 30
    4222912
    MOTOR, A/C. Blower
    • CAPACITOR, A/C. Blower Motor
  • 30
    4240426
    MOTOR, A/C. Blower
    • MOTOR, A/C. Blower
  • 30 Dodge 6031694
    6031694
    MOTOR, A/C. Blower
    • SCREW and WASHER, A/C. Blower Motor Mounting
    $3.20 $2.19
    1
    Add To Cart
  • 31
    Dodge 2837680
    Dodge 2837680
    2837680
    A/C
    CLAMP, A/C. Blower Wheel Motor Mounting
    $2.35 $1.31
    1
    Add To Cart
  • 32
    6500376
    A/C
    NUT, A/C. Blower Motor U-Type
  • 33
    5210234
    A/C
    WHEEL, A/C. Blower Motor
  • 34
    5210056
    A/C
    DOOR, w/Seal, A/C. Recirc., Fresh Air
  • 35
    5210070
    A/C
    HOUSING, A/C. Recirc.
  • 38
    6015778
    A/C
    CLIP, A/C. Vacuum Hose Retaining
    • Require Quantity: 2
  • 40
    3848418
    A/C
    HOUSING and STUD, A/C. Evaporator w/Scroll
  • 3847721
    SEAL, A/C Evaporator Housing
    • SEAL, A/C Evaporator Housing
  • 3848933
    SEAL, A/C Evaporator Housing
    • SEAL, A/C. Unit To Plenum F/Air Inlet
