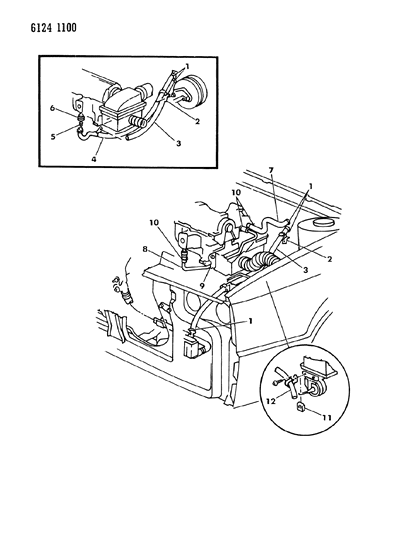

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, HEATER H BODY

1986 Dodge Lancer Plumbing - Heater Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
2448770
CLAMP, Heater Hose 15/16" I.D.
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

2
3849242
CLIP, Heater Hose Mounting (Tandem Booster)

3
3849063
HOSE, Sleeve Heater Core To Tee
HOSE, w/Tube Heater Core To Hose
3
3849303
HOSE, Sleeve Heater Core To Tee
- HOSE, Sleeve Heater Core To Tee
3
4397809
HOSE, Sleeve Heater Core To Tee
- SLEEVE, Heater Hose

4
3849048
HOSE, w/Tube Heater Engine To Core, w/T.c.

5
3848948
WASHER, Heater Tube Flare

6
6032290
CONNECTOR, Inverted Flare Tube

7
3849334
HOSE, Heater Engine To Core

8

4273488
HOSE, Water By-Pass to Tube
$9.50 $7.47
1
Add To Cart

9
4273487
BRACKET, Water By-Pass Attach

10
153640
CLAMP, Thermo Hose By-Pass

11
6500681
NUT, J, Heater Hose Clip Mounting

12

6100288
SCREW and WASHER, Heater Hose Clip Mounting

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Lancer parts. Parts like Plumbing - Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
