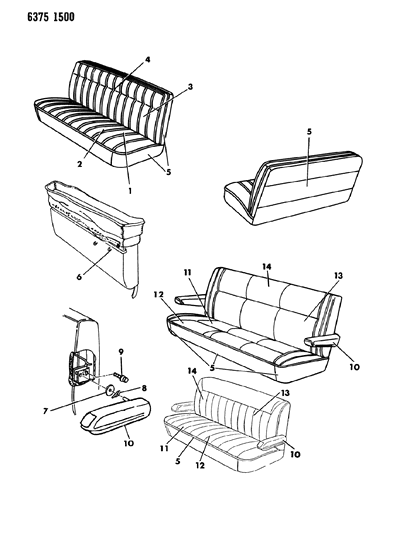

Diagram (1 of 1): B, T VAN & WAGON SEAT--REAR B-T 1,2,3 TRIM CODES C6,G5,R5
1986 Dodge Ram Van Rear Seat Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    L061B6B
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1986 (C6B) (3 Passenger)
  • 1
    L061B6M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (C6M) (3 Passenger)
  • 1
    L061E6K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (C6K) (3 Passenger)
  • 1
    L061F6C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1987 (C6C) (3 Passenger)
  • 1
    L062B6B
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1986 (C6B) (4 Passenger)
  • 1
    L062B6M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (C6M) (4 Passenger)
  • 1
    L062E6K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (C6K) (4 Passenger)
  • 1
    L062F6C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1987 (C6C) (4 Passenger)
  • 1
    L165D5B
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1986 (G5B) (3 Passenger)
  • 1
    L165D5M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (G5M) (3 Passenger)
  • 1
    L165E5K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (G5K) (3 Passenger)
  • 1
    L165F5C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1987 (G5C) (3 Passenger)
  • 1
    L166D5B
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1986 (G5B) (4 Passenger)
  • 1
    L166D5M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (G5M) (4 Passenger)
  • 1
    L166E5K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (G5K) (4 Passenger)
  • 1
    L166F5C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, 1987 (G5C) (4 Passenger)
  • 2
    L091B6B
    COVER, Cushion
    • Blue, 1986 (C6B) (3 Passenger)
  • 2
    L091B6M
    COVER, Cushion
    • Red, (C6M) (3 Passenger)
  • 2
    L091E6K
    COVER, Cushion
    • Almond, (C6K) (3 Passenger)
  • 2
    L091F6C
    COVER, Cushion
    • Blue, 1987 (C6C) (3 Passenger)
  • 2
    L093B6B
    COVER, Cushion
    • Blue, 1986 (C6B) (4 Passenger)
  • 2
    L093B6M
    COVER, Cushion
    • Red, (C6M) (4 Passenger)
  • 2
    L093E6K
    COVER, Cushion
    • Almond, (C6K) (4 Passenger)
  • 2
    L093F6C
    COVER, Cushion
    • Blue, 1987 (C6C) (4 Passenger)
  • 2
    L156D5B
    COVER, Cushion
    • Blue, 1986 (G5B) (3 Passenger)
  • 2
    L156D5M
    COVER, Cushion
    • Red, (G5M) (3 Passenger)
  • 2
    L156E5K
    COVER, Cushion
    • Almond, (G5K) (3 Passenger)
  • 2
    L156F5C
    COVER, Cushion
    • Blue, 1987 (G5C) (3 Passenger)
  • 2
    L158D5B
    COVER, Cushion
    • Blue, 1986 (G5B) (4 Passenger)
  • 2
    L158D5M
    COVER, Cushion
    • Red, (G5M) (4 Passenger)
  • 2
    L158E5K
    COVER, Cushion
    • Almond, (G5K) (4 Passenger)
  • 2
    L158F5C
    COVER, Cushion
    • Blue, 1987 (G5C) (4 Passenger)
  • 3
    L060B6B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, 1986 (C6B) (4 Passenger)
  • 3
    L060B6M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (C6M) (4 Passenger)
  • 3
    L060E6K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (C6K) (4 Passenger)
  • 3
    L060F6C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, 1987 (C6C) (4 Passenger)
  • 3
    L128E6K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (C6K) (1987)
  • 3
    L128E6M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (C6M) (1987)
  • 3
    L128F6C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (C6C) (1987)
  • 3
    L130E5K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (G5K) (1987)
  • 3
    L130E5M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (G5M) (1987)
  • 3
    L130F5C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (G5C) (1987)
  • 3
    L133C6B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (C6B) (1986)
  • 3
    L133C6M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (C6M) (1986)
  • 3
    L133E6K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (C6K) (1986)
  • 3
    L168D5B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (G5B) (1986)
  • 3
    L168D5M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (G5M) (1986)
  • 3
    L168E5K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (G5K) (1986)
  • 3
    L169D5B
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, 1986 (G5B) (4 Passenger)
  • 3
    L169D5M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (G5M) (4 Passenger)
  • 3
    L169E5K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (G5K) (4 Passenger)
  • 3
    L169F5C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, 1987 (G5C) (4 Passenger)
  • 4
    L092B6B
    COVER, Back
    • Blue, 1986 (C6B) (4 Passenger)
  • 4
    L092B6M
    COVER, Back
    • Red, (C6M) (4 Passenger)
  • 4
    L092E6K
    COVER, Back
    • Almond, (C6K) (4 Passenger)
  • 4
    L092F6C
    COVER, Back
    • Blue, 1987 (C6C) (4 Passenger)
  • 4
    L123E6K
    COVER, Back
    • Almond, (C6K) (1987)
  • 4
    L123E6M
    COVER, Back
    • Red, (C6M) (1987)
  • 4
    L123F6C
    COVER, Back
    • Blue, (C6C) (1987)
  • 4
    L126E5K
    COVER, Back
    • Almond, (G5K) (1987)
  • 4
    L126E5M
    COVER, Back
    • Red, (G5M) (1987)
  • 4
    L126F5C
    COVER, Back
    • Blue, (G5C) (1987)
  • 4
    L134C6B
    COVER, Back
    • Blue, (C6B) (1986)
  • 4
    L134C6M
    COVER, Back
    • Red, (C6M) (1986)
  • 4
    L134E6K
    COVER, Back
    • Almond, (C6K) (1986)
  • 4
    L155D5B
    COVER, Back
    • Blue, (G5B) (1986)
  • 4
    L155D5M
    COVER, Back
    • Red, (G5M) (1986)
  • 4
    L155E5K
    COVER, Back
    • Almond, (G5K) (1986)
  • 4
    L157D5B
    COVER, Back
    • Blue, 1986 (G5B) (4 Passenger)
  • 4
    L157D5M
    COVER, Back
    • Red, (G5M) (4 Passenger)
  • 4
    L157E5K
    COVER, Back
    • Almond, (G5K) (4 Passenger)
  • 4
    L157F5C
    COVER, Back
    • Blue, 1987 (G5C) (4 Passenger)
  • 5
    R629CB5
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
    • Blue, 1986 (C6B,G5B,R5B)
  • 5
    R629CM6
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
    • Red, (C6M,G5M,R5M)
  • 5
    R629EC5
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
    • Blue, 1987 (C6C,G5C,R5C)
  • 5
    R629EK1
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
    • Almond, (C6K,G5K,R5K)
  • 7
    Dodge 4211675
    4211675
    SPACER, Pivot Bolt
    • Require Quantity: 2
  • 9
    Dodge 6031853
    6031853
    BOLT
    • Require Quantity: 2
  • 10
    L110BB5
    ARMREST, 3 Passenger Seat
    • Blue, 1986, Right
  • 10
    L110BM6
    ARMREST, 3 Passenger Seat
    • Red, Right
  • 10
    L110EK1
    ARMREST, 3 Passenger Seat
    • Almond, Right
  • 10
    L110FC5
    ARMREST, 3 Passenger Seat
    • Blue, 1987, Right
  • 10
    L111BB5
    ARMREST, 3 Passenger Seat
    • Blue, 1986, Left
  • 10
    L111BM6
    ARMREST, 3 Passenger Seat
    • Red, Left
  • 10
    L111EK1
    ARMREST, 3 Passenger Seat
    • Almond, Left
  • 10
    L111FC5
    ARMREST, 3 Passenger Seat
    • Blue, 1987, Left
  • 11
    L185D5B
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, 1986 (R5B) (3 Passenger)
  • 11
    L185D5M
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (R5M) (3 Passenger)
  • 11
    L185E5K
    CUSHION, w/Spring/Frame, Pad and Cover
    • Almond, (R5K) (3 Passenger)
  • 11
    L185F5C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, 1987 (R5C) (3 Passenger)
  • 11
    L186D5B
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, 1986 (R5B) (4 Passenger)
  • 11
    L186D5M
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (R5M) (4 Passenger)
  • 11
    L186E5K
    CUSHION, w/Spring/Frame, Pad and Cover
    • Almond, (R5K) (4 Passenger)
  • 11
    L186F5C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, 1987 (R5C) (4 Passenger)
  • 12
    L175D5B
    COVER, Cushion
    • Blue, 1986 (R5B) (3 Passenger)
  • 12
    L175D5M
    COVER, Cushion
    • Red, (R5M) (3 Passenger)
  • 12
    L175E5K
    COVER, Cushion
    • Almond, (R5K) (3 Passenger)
  • 12
    L175F5C
    COVER, Cushion
    • Blue, 1987 (R5C) (3 Passenger)
  • 12
    L177D5B
    COVER, Cushion
    • Blue, 1986 (R5B) (4 Passenger)
  • 12
    L177D5M
    COVER, Cushion
    • Red, (R5M) (4 Passenger)
  • 12
    L177E5K
    COVER, Cushion
    • Almond, (R5K) (4 Passenger)
  • 12
    L177F5C
    COVER, Cushion
    • Blue, 1987 (R5C) (4 Passenger)
  • 13
    L132E5K
    BACK, w/Spring/frame, Pad and Cover
    • Almond, (R5K) (1987)
  • 13
    L132E5M
    BACK, w/Spring/frame, Pad and Cover
    • Red, (R5M) (1987)
  • 13
    L132F5C
    BACK, w/Spring/frame, Pad and Cover
    • Blue, R5C) (1987)
  • 13
    L187D5B
    BACK, w/Spring/frame, Pad and Cover
    • Blue, (R5B) (1986)
  • 13
    L187D5M
    BACK, w/Spring/frame, Pad and Cover
    • Red, (R5M) (1986)
  • 13
    L187E5K
    BACK, w/Spring/frame, Pad and Cover
    • Almond, (R5K) (1986)
  • 13
    L188D5B
    BACK, w/Spring/frame, Pad and Cover
    • Blue, 1986 (R5B) (4 Passenger)
  • 13
    L188D5M
    BACK, w/Spring/frame, Pad and Cover
    • Red, (R5M) (4 Passenger)
  • 13
    L188E5K
    BACK, w/Spring/frame, Pad and Cover
    • Almond, (R5K) (4 Passenger)
  • 13
    L188F5C
    BACK, w/Spring/frame, Pad and Cover
    • Blue, 1987 (R5C) (4 Passenger)
  • 14
    L127E5K
    COVER, Back
    • Almond, (R5K) (1987)
  • 14
    L127E5M
    COVER, Back
    • Red, (R5M) (1987)
  • 14
    L127F5C
    COVER, Back
    • Blue, (R5C) (1987)
  • 14
    L176D5B
    COVER, Back
    • Blue, (R5B) (1986)
  • 14
    L176D5M
    COVER, Back
    • Red, (R5M) (1986)
  • 14
    L176E5K
    COVER, Back
    • Almond, (R5K) (1986)
  • 14
    L178D5B
    COVER, Back
    • Blue, 1986 (R5B) (4 Passenger)
  • 14
    L178D5M
    COVER, Back
    • Red, (R5M) (4 Passenger)
  • 14
    L178E5K
    COVER, Back
    • Almond, (R5K) (4 Passenger)
  • 14
    L178F5C
    COVER, Back
    • Blue, 1987 (R5C) (4 Passenger)
