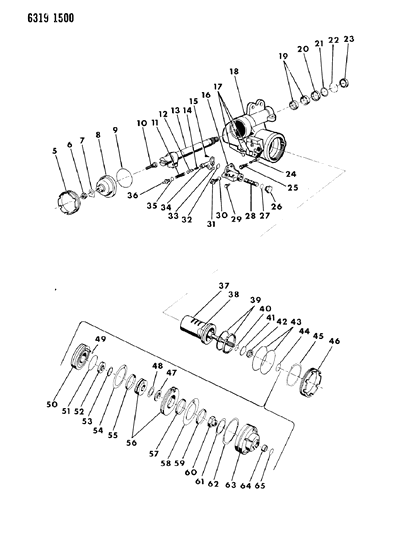

Diagram (1 of 1): STEERING GEAR-CHRYSLER POWER STEERING B-BODY
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 51733627
NUT, Steering Gear Shaft Cover
- 66028983
NUT, Shaft Adj. Screw
- 83643301
COVER, Strg. Gear Shaft
- 102948857
SCREW, Strg. Gear Shaft Adjusting
- 133643302
SHAFT
- 184333095
HOUSING, Strg. Gear (See Note 19-1800)
- 192948971
BEARING- Require Quantity: 2
- 211670356
RETAINER, Strg. Gear Shaft Oil Seal
- 222127049
SNAP RING, Strg. Gear Shaft Oil Seal
- 241822380
LEVER, Strg. Gear Control Valve
- 251823151
SPRING, Strg. Gear Control Valve Lever
- 271733724
GASKET, Valve Plug
- 301618611
GASKET
- 326030655
O-RING, S/Gear Valve Housing-In 3879919 Repair Kit
- 351618611
GASKET
- 374342711
WORM and PISTON, Steering Gear
- 39
- 411822321
SNAP RING, Cylinder Head
- 421822320
SLEEVE, Steering Gear Worm
- 431733562
O-RING, Piston Ring Sealing
- 451733588
WASHER
- 461733625
NUT
- 471856292
RACE, Thrust Bearing Inner
- 481822158
BEARING, Worm Thrust
- 491486205
O-RING, Cylinder Head Ferrule
- 503643173
HEAD, Steering Gear Cylinder
- 511822151
SEAL, Strg. Gear Reaction, Upper
- 521822156
RACE, Thrust Bearing Outer
- 532537796
BEARING, Strg.Gear Worm
- 542537247
SPRING, Reaction
- 561822390
SPACER and CENTER RACE, Steering Gear
- 571822150
RING, Steering Gear Reaction
- 583643129
SPRING, Steering Gear Reaction
- 591733790
WASHER, Steering Gear Reaction
- 601822157
NUT, Thrust Bearing
- 63$35.21 $27.251
- 642537796
BEARING, Steering Gear Worm
- 653643321
SEAL, Steering Gear Worm Cover- SEAL, Steering Gear Worm Cover
- 653879919
SEAL, Steering Gear Worm Cover- STEERING GEAR VALVE BODY SEAL
- 65
- 653879921
SEAL, Steering Gear Worm Cover- STEERING GEAR LOWER SECTOR SEAL,1 1/4" GEARS
- 653879924
SEAL, Steering Gear Worm Cover- STEERING GEAR POWER TRAIN
- 65
- 654057087
SEAL, Steering Gear Worm Cover- STEERING GEAR FLUID RETURN & SEAL
- 654057088
SEAL, Steering Gear Worm Cover- STEERING GEAR VALVE HOUSING & SEAL
- 1618611
GASKET, P/Strg. Gear Pressure Hose Adapter
- 4026481
GEAR, Power Steering - R3643333
GEAR, Power Steering
- 2267529
NUT, Power Strg. Gear Pressure Hose Adapter
- 1733625
NUT, Strg. Gear Housing
- 2267530
O-RING, Power Strg. Gear Pressure Hose Adapter
- 1733602
O-RING, Steering Gear Housing Head
- 6032526
SCREW, Strg. Gear Mounting- Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Ram Van parts. Parts like Gear - Chrysler Power Steering are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
