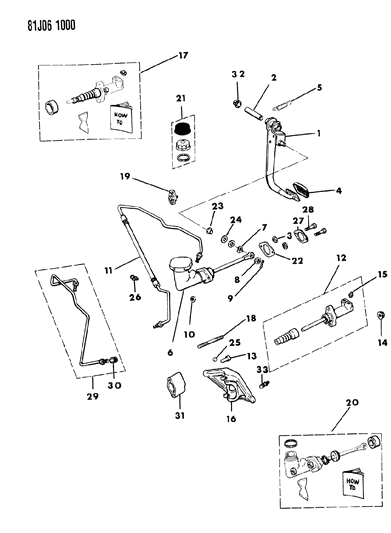

Diagram (1 of 1): CLUTCH PEDAL, CLUTCH LINKAGE XJ CHEROKEE, XJ WAGONEER, COMANCHE

1986 Jeep Cherokee Pedal - Clutch Linkage Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
52000080
PEDAL, Clutch
1984
1
53002146
PEDAL, Clutch
- 1985
1
53003531
PEDAL, Clutch
- EXPORT (1986)
1
53004363
PEDAL, Clutch
- (1986)

2
53000636
SLEEVE

3
11502812
NUT
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6502135
$10.55 $7.28
1
Add To Cart

4
J3229581
PAD, Clutch Pedal

5
52000402
SPRING

6
52000068
CYLINDER ASSEMBLY, Clutch Master
1984
2.5L Four Cylinder (1985)
$156.35 $122.86
1
Add To Cart
6
53001163
CYLINDER ASSEMBLY, Clutch Master
- 1986 (1985)
  2.8L Six Cylinder (1985)
  Diesel (1985)

7
J4004616
WASHER, Wave

8
J0120396
WASHER, Flat

9
J0121224
PIN

10
J9413534
NUT
- Require Quantity: 2
- Package Quantity: 1

11
52000069
TUBE ASSEMBLY
1984-85 (2.5L Four Cylinder)
1984-85 (2.8L Six Cylinder)
11
53001323
TUBE ASSEMBLY
- 1984-85 (Diesel)
11
53004161
TUBE ASSEMBLY
- 1986 (Diesel)
11
53004247
TUBE ASSEMBLY
- 1986 (2.5L Four Cylinder)
  1986 (2.8L Six Cylinder)

12
52000070
CYLINDER ASSEMBLY, Clutch Slave
2.5L Four Cylinder
2.8L Six Cylinder
$149.00 $129.35
1
Add To Cart
12
53001324
CYLINDER ASSEMBLY, Clutch Slave
- Diesel

13
J3217479
PIVOT

14
11502729
NUT
- Require Quantity: 2

15
J8133629
SCREW, Bleed

16
53000484
LEVER, Clutch Throwout

17
83500670
REPAIR PACKAGE, Slave Cylinder

18
34201654
STUD
2.5L Four Cylinder
2.8L Six Cylinder
Require Quantity: 2
18
34202043
STUD
- Diesel
- Require Quantity: 2

19
53000585
CLIP

20
83500669
REPAIR PACKAGE, Master Cylinder
1984 (2.8L Six Cylinder)
1984-85 (2.5L Four Cylinder)
20
83501531
REPAIR PACKAGE, Master Cylinder
- 1985-86 (2.8L Six Cylinder)
  1986 (2.5L Four Cylinder)
  Diesel (2.8L Six Cylinder)

21
J8133630
CAP PACKAGE

22
53001860
SEAL

23
J4007472
BUSHING

24
J4007070
WASHER
- Require Quantity: 2

25
J0169162
BALL

26
34201961
CLIP
1985-86
26
J0126166
CLIP
- 1984

27
J3237235
PLATE

28
34201869
BOLT
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6502137
$13.75 $9.53
1
Add To Cart

29
33001560
TUBE ASSEMBLY
1984
29
53001630
TUBE ASSEMBLY
- 1985-86

30
S0442394
UNION

31
53000252
SPACER
1984
31
53001619
SPACER
- 1985-86

32
J3225981
BUSHING
- Require Quantity: 2
- Package Quantity: 1

33
53002386
PIVOT

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Cherokee parts. Parts like Pedal - Clutch Linkage are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 2.8L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission.
