2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

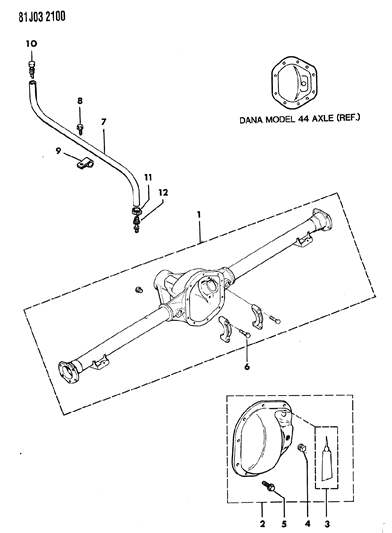

1.REAR AXLE AXLE HOUSING, REAR AMC OR DANA MODEL 35 XJ CHEROKEE, XJ WAGONEER, COMANCHE
2.REAR AXLE AXLE HOUSING, REAR DANA MODEL 44 COMANCHE

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83500139
HOUSING, Axle
1984-85
1
83503008
HOUSING, Axle
- 1986: Tagged 8953003692, 8953004043 or 8953003693
1
83503023
HOUSING, Axle
- 1986: Stamped T,E,K,KK or Tagged 8953004215, 8953004216, 8953004217, 8953004218, 8953004512, 8953004513, 8953004514, 8353003695 or 8953004515
1
83503055
HOUSING, Axle
- HOUSING, Axle

2
83503058
COVER
- Replaced By: 83505549

2
83502507
HOUSING, Axle
Stamped T,E,K,KK or Tagged 8953004516, 8953004517, 8953004518 or 8953004519
2
83503014
HOUSING, Axle
- Tagged 8953004045, 8953003697, 8953003698, 8953003699, 8953004697 or 8953004768

3
J8993317
SEALER
- Replaced By: 5010884AD
$13.65 $9.36
1
Add To Cart

4
83505125
COVER PACKAGE

4
83501571
PLUG

5
J0991546
BOLT
- Require Quantity: 10

5
J4005725
PLUG

6
83501515
BOLT
BOLT
Require Quantity: 4
6
J4004514
BOLT
- BOLT
- Require Quantity: 10

7
J3187627
HOSE, Vent

7
53000476
SEAL
1984-85
1986: Stamped T,E,K,KK or Tagged 8953004215, 8953004216, 8953004217, 8953004218, 8953004512, 8953004513, 8353003695 or 8953004515
Stamped T,E,K,KK or Tagged 8953004219, 8953004220, 8953004221, 8953004222, 8953004516, 8953004517, 8953004518 or 8953004519
Fitting Vehicle Options: MJ, XJ
Require Quantity: 2
7
83503010
SEAL
- 1986: Tagged 8953003692, 8953004043 or 8953003693
- Fitting Vehicle Options: XJ
- Require Quantity: 2
- Package Quantity: 1
7
83503010
SEAL
- Tagged 8953004045, 8953003697, 8953003698, 8953003699, 8953004697 or 8953004768
- Fitting Vehicle Options: MJ

8
J9426241
SCREW

8
J3187999
VENT

9
J3227851
CLAMP

9
J0120526
CLIP

10

J5352955
BREATHER
$8.80 $5.90
1
Add To Cart

10
J3187627
HOSE, Vent

11

J5352955
BREATHER
$8.80 $5.90
1
Add To Cart

11
J3227851
CLAMP

12
J9426241
SCREW

12
J3187999
VENT

13
J0120526
CLIP

14
J4006553
BOLT
- Require Quantity: 4
- Package Quantity: 1

15
J3229429
GASKET

16
53000376
SENSOR, System Sentry

17
33000322
GASKET

18
83500271
PLUG PACKAGE, Without System Sentry

19
53001425
SHIELD, System Sentry Sensor

20
53001440
BRACKET

21
34201871
SCREW

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Comanche parts. Parts like Axle Housing, Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 2.8L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
