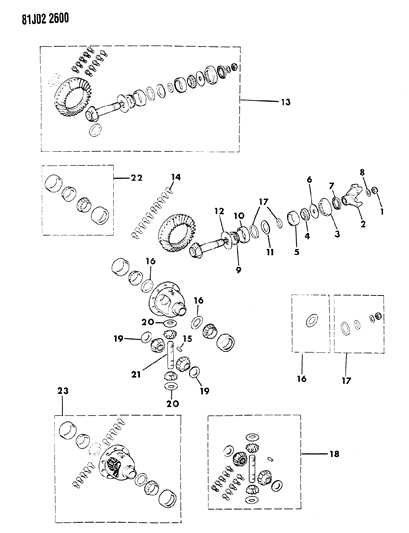

Diagram (1 of 1): FRONT SUSPENSION & DRIVE DIFFERENTIAL, FRONT AXLE SJ CHEROKEE, SJ WAGONEER J10, J20

1986 Jeep Grand Wagoneer Differential - Front Axle Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J0801367
NUT, Pinion

2
83503388
YOKE, Pinion
1986: Without Dust Slinger on Yoke
$156.00 $103.01
1
Add To Cart
2
J8133241
YOKE, Pinion
- 1981-86: With Dust Slinger on Yoke

3
83503390
SEAL, Pinion
1986: Without Dust Slinger on Yoke
Replaced By: 4746772
$48.10 $32.14
1
Add To Cart
3
J0998092
SEAL, Pinion
- 1981-86: With Dust Slinger on Yoke
$14.50 $11.40
1
Add To Cart

4
J0052878
BEARING

5
J0052879
CUP, Bearing
$47.50 $32.96
1
Add To Cart

6
J0636566
SLINGER, Dust

7
J0636568
SHIELD, Dust

8
J0636570
WASHER

9
J0807266
CONE, Bearing
$51.20 $44.47
1
Add To Cart

10
J0052877
CUP, Bearing

11
J0916373
BAFFLE

12
J0916372
SLINGER, Oil

13
J8124386
GEAR SET, Front Axle Ring and Pinion
4.88 Ratio
13
J8124777
GEAR SET, Front Axle Ring and Pinion
- 3.73 Ratio
13
J8132704
GEAR SET, Front Axle Ring and Pinion
- 1981-84: 2.73 Ratio, without Disconnect
13
J8134219
GEAR SET, Front Axle Ring and Pinion
- 3.31 Ratio
13
J8134222
GEAR SET, Front Axle Ring and Pinion
- 1982-84: 2.73 Ratio, with Disconnect
  1985-86: 2.73 Ratio

14
J0649454
BOLT
- Require Quantity: 10
- Package Quantity: 1

15
J0636360
PIN

16
J8129222
SHIM PACKAGE (8), Case
$132.00 $103.35
1
Add To Cart

17
J8129221
SHIM PACKAGE (13), Pinion

18
J8129228
GEAR SET, Front Axle Differential
1981-84: Without Disconnect
1985-86
18
J8134225
GEAR SET, Front Axle Differential
- 1982-84: With Disconnect

19
J0645789
WASHER, Side Gear
- Require Quantity: 2

20
J0645790
WASHER, Pinion Gear
- Require Quantity: 2

21
J0805327
SHAFT, Differential

22
J8124071
BEARING PACKAGE

23
J8124038
CASE, Front Axle Differential
1981-84: 2.73 or 3.31 Ratio, without Disconnect
1985-86: 2.73 or 3.31 Ratio
3.73 Ratio
23
J8129244
CASE, Front Axle Differential
- 4.88 Ratio
23
J8134224
CASE, Front Axle Differential
- 1982-84: 2.73 or 3.31 Ratio, with Disconnect

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Grand Wagoneer parts. Parts like Differential - Front Axle are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
