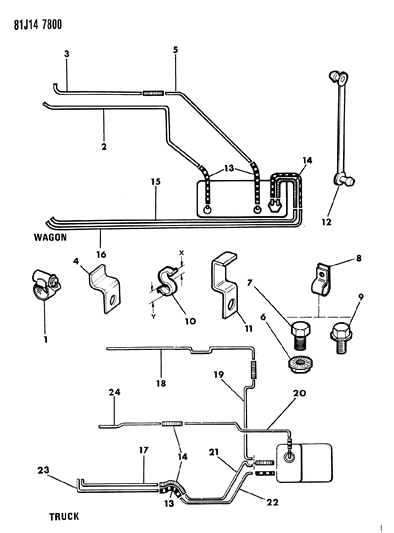

Diagram (1 of 1): FUEL FUEL LINES SIX, EIGHT CYLINDER SJ CHEROKEE, SJ WAGONEER, J10, J20

1986 Jeep Grand Wagoneer Fuel Lines Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
33000785
CLAMP, Hose
.47" Thru .78"
Replaced By: 6502081
$4.70 $3.18
1
Add To Cart
1
33000786
CLAMP, Hose
- .28" Thru .59"

2
J5361733
TUBE, Vent

3
J5361554
TUBE, Vent
1981-86: Eight Cylinder, with Five Speed Transmission
1981: Automatic Transmission, with Part Time Unit
1982-86: Eight Cylinder, with Automatic Transmission, without Selec-Trac
3
J5361555
TUBE, Vent
- 1981-82: Automatic Transmission, with Full Time Unit
  1983-86: Eight Cylinder, with Automatic Transmission, with Selec-Trac
3
J5361556
TUBE, Vent
- 1981: Six Cylinder, with Manual Transmission
3
J5363384
TUBE, Vent
- 1982-86: Six Cylinder, with Automatic Transmission, with Part Time Unit
3
J5363385
TUBE, Vent
- 1982-86: Six Cylinder, with Four Speed Transmission
3
J5363386
TUBE, Vent
- 1983-86: Six Cylinder, with Automatic Transmission, with Selec-Trac

4
J5364175
CLIP

5
J5361582
TUBE, Vent
1981
5
J5363405
TUBE, Vent
- 1982-86: Six Cylinder, with Five Speed Transmission
5
J5364188
TUBE, Vent
- 1982-86: Without Six Cylinder, Five Speed Transmission

6
J4003587
NUT
- Replaced By: 152472
$8.55 $7.01
1
Add To Cart

7
J0180075
BOLT

8
J0120522
CLIP
.28" Dia. Hole
8
J0179148
CLIP
- .38" Dia. Hole
8
J0192107
CLIP
- .34" Dia. Hole

9
J4004626
SCREW
.38"
9
J4005063
SCREW
- .31"
9
J9426241
SCREW
- .25"

10
J0800743
CLIP, S-Type
X=.24", Y=.24", Six, Eight Cylinder
10
J4000021
CLIP, S-Type
- X=.30", Y=.30"
10
J4004928
CLIP, S-Type
- X=.24", Y=.30"

11
J4004901
CLIP

12
J4001712
FASTENER

13
J8125843
HOSE, Bulk

14
J8125823
HOSE, Bulk

15
53002555
TUBE, Fuel Supply
1986 (Six Cylinder)
15
53002559
TUBE, Fuel Supply
- 1986 (Eight Cylinder)
15
J5361192
TUBE, Fuel Supply
- 1981-85 (Six Cylinder)
15
J5361195
TUBE, Fuel Supply
- 1981-85 (Eight Cylinder)

16
53002557
TUBE, Fuel Return
1986: Front
16
J5361194
TUBE, Fuel Return
- 1981-85: Front
16
J5361199
TUBE, Fuel Return
- 1981-86: Rear

17
53002560
TUBE, Fuel Supply
1986 (Eight Cylinder)
17
J5357793
TUBE, Fuel Supply
- 1981-85 (Eight Cylinder)

18
53002556
TUBE, Fuel Supply
1986 (Six Cylinder)
18
J5357965
TUBE, Fuel Supply
- 1981-85 (Six Cylinder)

19
53002561
TUBE, Fuel Supply
1986 (Six Cylinder)
19
J5361196
TUBE, Fuel Supply
- 1981-85 (Six Cylinder)

20
J5361738
TUBE, Fuel Vent
Eight Cylinder
20
J5363387
TUBE, Fuel Vent
- Six Cylinder

21
53002562
TUBE, Fuel Supply
1986 (Eight Cylinder)
21
J5361198
TUBE, Fuel Supply
- 1981-85 (Eight Cylinder)

22
53002563
TUBE, Fuel Return
1986
22
J5361215
TUBE, Fuel Return
- 1981-85

23
53002558
1981-85
1986
23
J5358535
1981-85
- 1981-85

24
J5361733
TUBE, Fuel Vent
Eight Cylinder
24
J5363388
TUBE, Fuel Vent
- Six Cylinder
