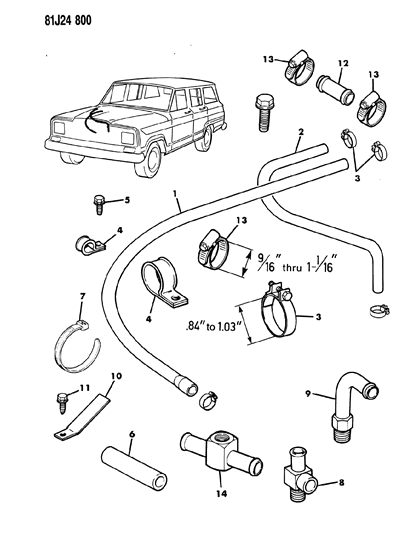

Diagram (1 of 1): HEATER AND AIR CONDITIONING HOSES, HEATER SJ CHEROKEE, SJ WAGONEER, J10, J20

1986 Jeep Grand Wagoneer Heater Hoses Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J5755252
HOSE, Core to Pump
1981-83
1
J5765301
HOSE, Core to Pump
- 1984-86
1
J8051780
HOSE, Core to Pump
- EXPORT, Right Hand Drive

2
J3203739
HOSE, Manifold To Heater Core
1981-83: Bulk (Eight Cylinder)
1983-86: Bulk (Six Cylinder)
2
J5758482
HOSE, Manifold To Heater Core
- 1981-82 (Six Cylinder)
2
J5764195
HOSE, Manifold To Heater Core
- 1984-86 (Eight Cylinder)
2
J8051779
HOSE, Manifold To Heater Core
- EXPORT, Right Hand Drive (Six Cylinder)
2
J8051781
HOSE, Manifold To Heater Core
- EXPORT, Right Hand Drive (Eight Cylinder)

3
S0443632
CLAMP

4
J4003838
CLIP

5
J4001814
SCREW

6
J5354540
PROTECTOR, Hose

7
J3223227
STRAP
- Replaced By: 4641780
$0.45 $0.29
1
Add To Cart

8
53000680
FITTING, 90 Degree

9
J3219631
NIPPLE, Manifold

10
J5460142
BRACKET, Hose Mounting
EXPORT, Right Hand Drive
10
J5764086
BRACKET, Hose Mounting
- Six Cylinder

11
J4001701
SCREW

12
J8053245
COUPLING

13
J3203076
CLAMP
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

14
J3728089
TUBE ASSEMBLY, CTO Switch

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Grand Wagoneer parts. Parts like Heater Hoses are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
