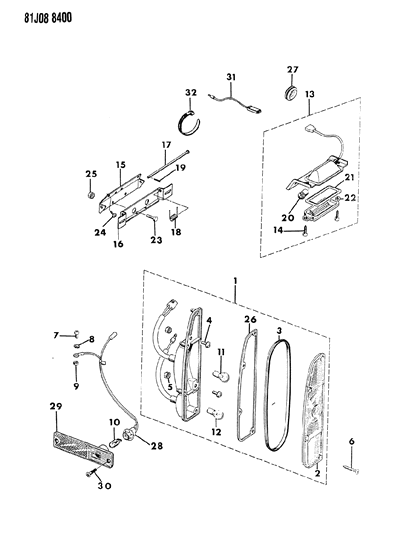

Diagram (1 of 1): ELECTRICAL LAMP--REAR TOWNSIDE-J10, J20
1986 Jeep J10 Lamp - Rear Townside Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    J0987831
    TAIL LAMP, Assembly
    • Left
  • 1
    J0987832
    TAIL LAMP, Assembly
    • Right
  • 2
    J8122678
    LENS, Tail Lamp, Right
    • LENS, Tail Lamp, Right
  • 2
    J8122679
    LENS, Tail Lamp, Right
    • LENS, Tail Lamp, Left
  • 3
    J5450274
    GASKET
    • Require Quantity: 2
  • 4
    J0191985
    SCREW
    • Require Quantity: 4
    • Package Quantity: 1
    $2.20 $1.50
    1
    Add To Cart
  • 5
    J0271172
    NUT
    • Require Quantity: 4
  • 6
    J9425250
    SCREW
    • Require Quantity: 8
  • 7
    J0454783
    SCREW
    • Require Quantity: 2
  • 8
    J0178378
    WASHER
    • Require Quantity: 2
  • 9
    J0120361
    NUT
    • Require Quantity: 2
  • 10
    J9421330
    BULB, "194"
    • Require Quantity: 2
  • 11
    J3209544
    BULB, "1157"
    • Require Quantity: 2
  • 12
    J3209543
    BULB, "1156"
    • Require Quantity: 2
  • 13
    J0930887
    LAMP, License
  • 14
    J0187303
    SCREW
    • Require Quantity: 2
  • 15
    J0931389
    BRACKET
  • 16
    J0931390
    HINGE
  • 17
    J0931391
    PIN
  • 18
    J0931392
    SPRING
  • 19
    J0112726
    PIN
  • 20
    J0938900
    BULB, "1155"
  • 21
    J0930889
    GASKET
  • 22
    J0930890
    LENS
  • 23
    J4004081
    SCREW
    • Require Quantity: 2
  • 24
    J0187303
    SCREW
    • Require Quantity: 2
  • 26
    J8122676
    GASKET
    • Require Quantity: 2
  • 27
    J0120408
    GROMMET
  • 30
    J4005821
    SCREW
    • Require Quantity: 4
  • 31
    J5450045
    WIRE
  • 32 Jeep J3223227
    J3223227
    STRAP
    • Require Quantity: 5
    • Package Quantity: 1
    • Replaced By: 4641780
    $0.45 $0.29
    1
    Add To Cart
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep J10 parts. Parts like Lamp - Rear Townside are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
