Diagram (1 of 1): FUEL FUEL PUMP AND FILTER FOUR CYLINDER GAS, CARBURETED XJ CHEROKEE, XJ WAGONEER, COMANCHE

1986 Jeep Wagoneer Fuel Pump & Filter Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
33002652
PUMP, Fuel

2
J3174685
GASKET, Fuel Pump

3
J0180079
BOLT
- Require Quantity: 2

4
33002036
TUBE
1984-85
4
53002566
TUBE
- 1986

5
33001522
TUBE
1984-85
5
53002567
TUBE
- 1986

6
83500998

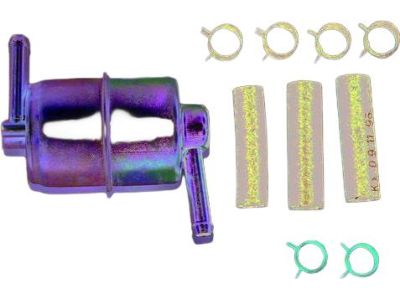

FILTER PACKAGE, Fuel
- Replaced By: 4638127
$12.85 $11.43
1
Add To Cart

7
J3227851
CLAMP, Hose
0.60"
7
J3227852
CLAMP, Hose
- 0.66"

8
J8125823
HOSE, Bulk

9
J8125843
HOSE, Bulk

10
J3235908
HOSE

11
J9416918
NUT

12
33000785
CLAMP, Hose
- Replaced By: 6502081
$4.70 $3.18
1
Add To Cart

13
53002569
TUBE, Fuel Return

14
J3232144
VALVE
