6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

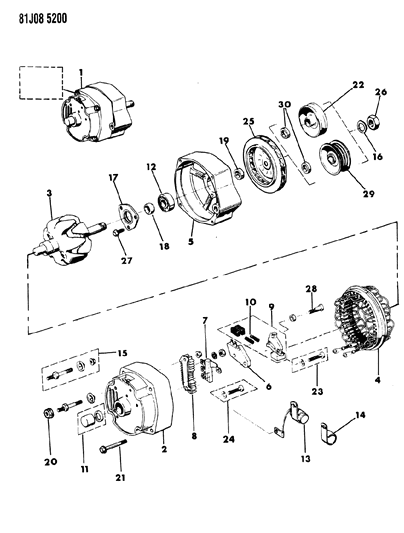

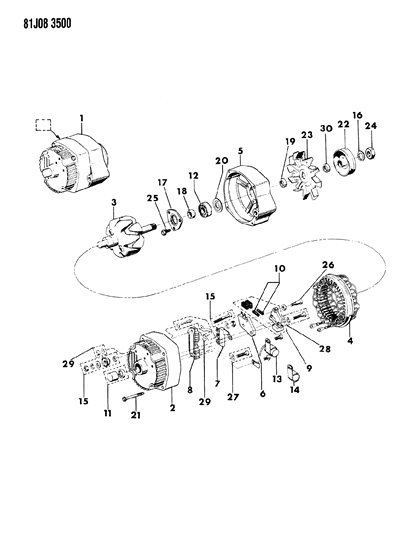

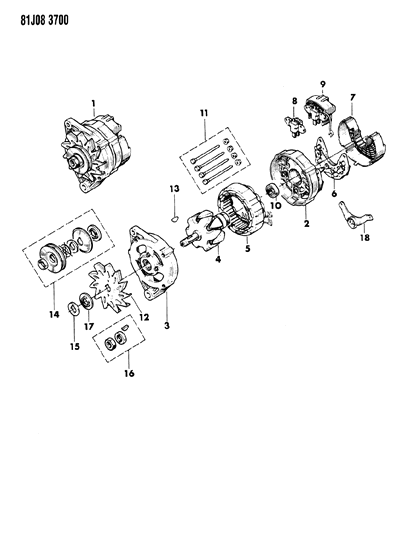

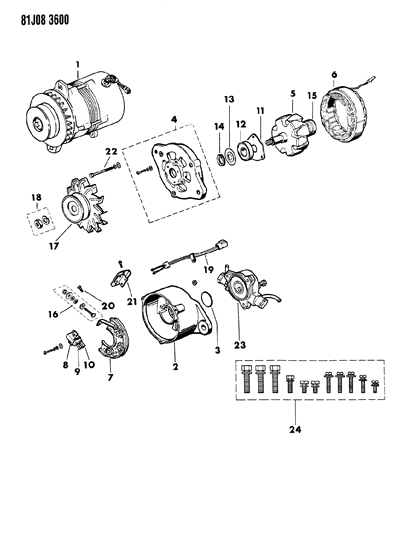

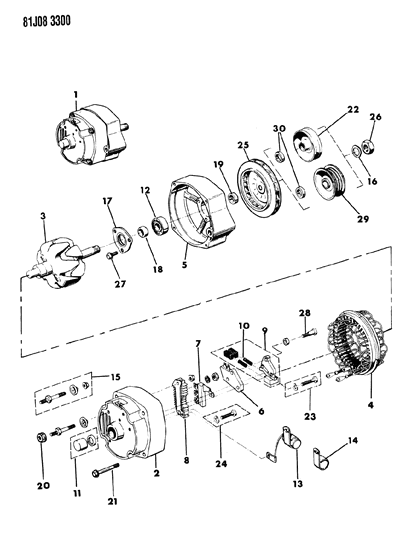

1.ELECTRICAL ALTERNATOR 1986 RENAULT DIESEL CJ-5,6,7,8, SCRAMBLER
2.ELECTRICAL ALTERNATOR 2.5L FOUR AND 2.8L SIX CYLINDER XJ CHEROKEE, XJ WAGONEER, COMANCHE
3.ELECTRICAL ALTERNATOR 42-56-63-78 AMP. CJ-5,6,7,8, SCRAMBLER
4.ELECTRICAL ALTERNATOR 42-56-63-78 AMP. SJ CHEROKEE, SJ WAGONEER, J10, J20
5.ELECTRICAL ALTERNATOR 70 AMP. CJ-5,6,7,8, SCRAMBLER
6.ELECTRICAL ALTERNATOR 81-85 ISUZU DIESEL CJ-5,6,7,8, SCRAMBLER

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83502191
ALTERNATOR
w/o Vacuum Pump
1
J8060446
ALTERNATOR
- w/Vacuum Pump
1
J8133346
ALTERNATOR
1
JR775007
ALTERNATOR
- REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
  Remanufactured
1
T0709420
ALTERNATOR
- ALTERNATOR

1
J8131881
ALTERNATOR ASSEMBLY
1
J8134663
ALTERNATOR ASSEMBLY
- 42 Amp (EXPORT)
1
J8134664
ALTERNATOR ASSEMBLY
- 56 or 78 Amp (EXPORT)
  56,63, or 73 Amp (EXPORT)
1
JR775004
ALTERNATOR ASSEMBLY
- 42 Amp (Remanufactured)
  ALTERNATOR, LESS PULLEY (EXPORT)
1
JR775005
ALTERNATOR ASSEMBLY
- 56 or 78 Amp (Remanufactured)
  56,63, or 78 Amp (Remanufactured)
  REMAN, Door (EXPORT)
1
JR775006
ALTERNATOR ASSEMBLY

1
J8134664
ALTERNATOR ASSEMBLY, 56,66 or 78 Amp
1
JR775005
ALTERNATOR ASSEMBLY, 56,66 or 78 Amp

2
J8060449
HOUSING, Alternator Rear
2
J8133266
HOUSING, Alternator Rear
2
T1026591
HOUSING, Alternator Rear

2
J8132555
HOUSING, Rear
2
J8134651
HOUSING, Rear

3
J8060450
COVER

3
T1026590
HOUSING, Alternator Front

3
J8134645
ROTOR
3
J8134646
ROTOR

3
J8133264
ROTOR, Alternator
ROTOR, Alternator
3
J8134645
ROTOR, Alternator
- Tagged 110 5044, 110 5045, 110 5047 or 110 5048
  Tagged 1105044,1105045,1105047,1105048,1105058 or 1105059
3
J8134646
ROTOR, Alternator

4
J8060448
HOUSING, Alternator Front

4
T1026588
ROTOR, Alternator

4
J8125196
STATOR
4
J8134648
STATOR
4
J8134649
STATOR
4
J8135174
STATOR

4
J8133265
STATOR, Alternator
STATOR, Alternator
4
J8134648
STATOR, Alternator
- Tagged 1105044,1105047, or 1105058
  Tagged 1105081 or 1105082
4
J8134649
STATOR, Alternator
4
J8135174
STATOR, Alternator

5
J8132557
HOUSING, Front
Tagged 1100129,100159,1103155,1103196 or 1100158
5
J8133276
HOUSING, Front
- Tagged 1101087,1101094,1101093,1101436 or 1100223
5
J8134654
HOUSING, Front
- Tagged 1105079 or 1105080
5
J8134655
HOUSING, Front
- HOUSING, Front
  Tagged 1105081,1105082,1105083 or 1105084
  Tagged 1105081,1105082,1105083, or 1105084
5
J8134656
HOUSING, Front
- Tagged 1105347

5
J8060460
ROTOR, Alternator

5
T1026589
STATOR, Alternator

6
T1029999
RECTIFIER, Diode

6
J8125176
REGULATOR, Voltage

6
J8060447
STATOR, Alternator

7
T1026595
COVER

7
J8060459
DIODE

7
J8125177
DIODE TRIO
Tagged 1100129, 100159,1103155,1103196, or 110015 8
7
J8133268
DIODE TRIO
- DIODE TRIO
  Tagged 1102081,1105082,1105083,11050084,1105079, or 1105080

8
J8060452
BRUSH KIT, Alternator

8
83502001
HOLDER, Alternator Brush

8
J8125178
RECTIFIER
8
J8134650
RECTIFIER

8
J8133269
RECTIFIER, Diode
RECTIFIER, Diode
8
J8134650
RECTIFIER, Diode
- RECTIFIER, Diode

9
J8060453
BRUSH

9
J8133271
HOLDER, Alternator Brush

9
J8125179
HOLDER, Brush
9
J8134652
HOLDER, Brush

9
83502023
REGULATOR, Voltage

10
T5698900
BEARING

10
J8060454
BRUSH

10
J8125180
SPRING
Tagged 100129,1100159,1103155,1103196 or 1100158
Require Quantity: 2
10
J8133272
SPRING
- Tagged 11050080
10
J8133272
SPRING
- SPRING
  Tagged 1105080
- Require Quantity: 2
10
J8134653
SPRING
- Tagged 1105079,1105081,1105081,1105082,1105083, or 1105084
10
J8134653
SPRING
- SPRING
  Tagged 1105081,1105082,1105083,1105084 or 1105079
- Require Quantity: 2

11
J8125181
BEARING
Tagged 1100129,1100159,1103155,1103196 or 1100158
11
J8133267
BEARING
- BEARING
11
J8134644
BEARING
- BEARING
  Tagged 1105081,1105082,1105083,1105084,1105079 or 1105080

11
83502008
BOLT KIT

11
J8060473
RETAINER

12
J8060001
BEARING
BEARING
12
J8125182
BEARING
- Tagged 1100129,1100159,1103155,1103196 or 1100158
12
J8133277
BEARING
- Tagged 1101087,1101094,1101093,1101436, or 1100223
12
J8134657
BEARING
- BEARING
  Tagged 1105081,1105082,1105083,1105084,1105079 or 1105080
  Tagged 1105347

12
T1026594
FAN, ALternator

13
J8125183
CAPACITOR
CAPACITOR
Tagged 1105347
13
J8133275
CAPACITOR
- Tagged 1101087,1101094,1101093,1101436, or 1100223

13
J8125183
CAPACITOR, Alternator

13
T3515400
KEY

13
J8060474
RETAINER, Seal

14
J8125184
CLAMP

14
T1201416
PULLEY

14
J8060567
SEAL

15
J8060000
BEARING

15
J8132556
TERMINAL
Tagged 1100129,1100159,1103155,1103196 or 1100158
15
J8133274
TERMINAL
- TERMINAL
  Tagged 1105081,1105082,1105083,1105084,1105079 or 1105080

15
T1023644
WASHER

16
83502001
BEARING PACKAGE

16
J8060476
TERMINAL

16
J8133280
WASHER

17
J8060462
FAN, Alternator

17
J8124658
RETAINER
Tagged 1105347
17
J8125187
RETAINER
- Tagged 1100129,1100159,1103155,1103196 or 1100158
  Tagged 1101087,1101094,1101093,1101436, or 1100223
17
J8134658
RETAINER
- RETAINER
  Tagged 1105081,1105082,1105083,1105084,1105079 or 1105080

17
T1023642
WASHER

18
T1026596
BRACKET

18
J8125188
COLLAR
Tagged 1100129,1100159,1103155,1103196 or 1100158
18
J8133279
COLLAR
- COLLAR
  Tagged 1101087,1101094,1101093,1101436, or 1100223
  Tagged 1105081,1105082,1105083,1105084,1105079 or 1105080
18
J8134661
COLLAR
- Tagged 1105347

18
J8060585
NUT

19
J7134659
COLLAR
19
J8132696
COLLAR
- Tagged 1105079 or 1105080
  Tagged 1105079,1105080,1100129,1100159,1103155,11 03196 or 1100158
19
J8133278
COLLAR
- Tagged 1101087,1101094,1101093,1101436, or 1100223
19
J8134659
COLLAR
- COLLAR
  Tagged 1105081,1105082,1105083, or 1105084
19
J8134660
COLLAR
- Tagged 1105347

19
J8060455
LEAD

20
J8060475
BOLT

20
J8133299
COLLAR

20
J4200453
NUT
$4.25 $2.95
1
Add To Cart

20
J8125190
WASHER

21
J8125191
BOLT
- Require Quantity: 4

21
J8060451
COVER

22
J8060472
BOLT

22
J8123282
PULLEY
Tagged 1101087
22
J8128522
PULLEY
- Tagged 1101093,1101094
22
J8134194
PULLEY

22
J8132698
PULLEY, Alternator

22
J8132698
PULLEY, Alternator w/o Serpentine Belt Drive

22
J8132698
PULLEY, V-Belt

23
J8133281
FAN, Alternator

23
83500433
PULLEY, Alternator

23
83502082
PUMP, Vacuum

23
J8133273
SCREW

24
J8060477
BOLT KIT

24
J8125242
NUT

24
J8134194
PULLEY, Alternator

24
J8134669
SCREW

25
J8125193
FAN, Alternator
25
J8132695
FAN, Alternator
- Tagged 1105079
  Tagged 1105079,1100129 or 1100158
25
J8134662
FAN, Alternator
- FAN, Alternator
  Tagged 1105081,1105082,1105083 or1105084
  Tagged 1105081,1105084,1105083 or 1105084
25
J8135193
FAN, Alternator

25
J8125243
SCREW
Require Quantity: 3
25
J8134668
SCREW
- Require Quantity: 3

26
J8125242
NUT

26
J8125244
SCREW
- Require Quantity: 2

27
J8125245
SCREW
SCREW
27
J8134668
SCREW
- SCREW
- Require Quantity: 3
27
J8134668
SCREW
- SCREW

28
J8123273
SCREW
SCREW
28
J8125244
SCREW
- SCREW
- Require Quantity: 2
28
J8125244
SCREW
- SCREW

29
J8134194
PULLEY, Alternator w/Serpentine Belt Drive

29
J8128522
PULLEY, Serpentine Drive
29
J8134194
PULLEY, Serpentine Drive

29
J8134669
SCREW

29
J8123274
TERMINAL

30
J8133299
COLLAR
COLLAR
30
J8133433
COLLAR
- COLLAR

30
J8133273
SCREW

31
J4200453
NUT
$4.25 $2.95
1
Add To Cart

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Wrangler parts. Parts like Alternator are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
