2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

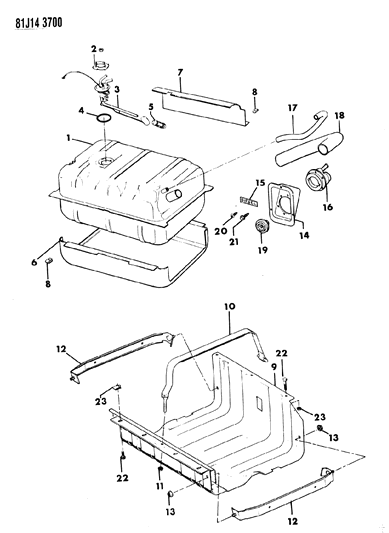

1.FUEL FUEL TANK 15.0 GALLON CJ-5,6,7,8, SCRAMBLER

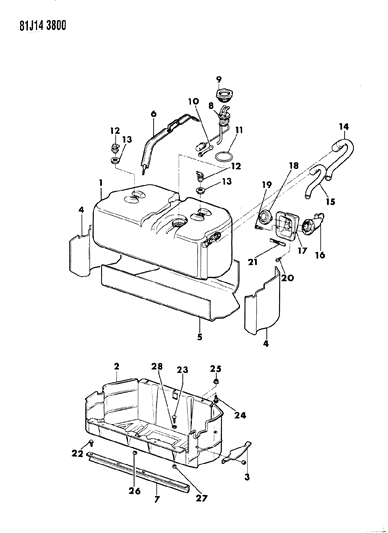

2.FUEL FUEL TANK 20.0 GALLON CJ-5,6,7,8, SCRAMBLER

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J5362498
TANK, Fuel
TANK, Fuel
1
J8128585
TANK, Fuel
- TANK, Fuel

2
J0929669
LOCK

2
J5363147
SHIELD, Fuel Tank

3
J5357373
GAUGE, Fuel

3
J5363015
SHIELD, Fuel Tank

4
J0941521
GASKET

4
J5363232
PAD, Fuel Tank
- Require Quantity: 2

5
J3230376
FILTER, Fuel

5
J5363225
PAD, Fuel Tank

6
J5359081
SHIELD, Fuel Tank

6
J5363078
STRAP

7
J5363513
SHIELD

7
J5356705
SHIELD, Fuel Tank

8
J4005486
CLIP
- Require Quantity: 8

8
J5362090
GAUGE, Fuel

9
J5370014
LOCK

9
J5357023
PLATE, Skid

10
J5361389
FILTER

10
J5356651
STRAP

11
J0941521
GASKET

11
J4003587
NUT, Lock
- Replaced By: 152472
$8.55 $7.01
1
Add To Cart

12
J5357879
STRAP
Left
12
J5357880
STRAP
- Right

12
J5362541
VALVE
- Require Quantity: 2

13
J4003956
NUT, Lock
- Require Quantity: 4

13
J5360059
SEAL
- Require Quantity: 2

14
J5362158
HOSE, Filler
Fitting Vehicle Options: 87
14
J5363050
HOSE, Filler
- Fitting Vehicle Options: 85
14
J5363317
HOSE, Filler
- 1982
- Fitting Vehicle Options: 88
14
J5364198
HOSE, Filler
- 1983-86
- Fitting Vehicle Options: 88

14
J5463803
PROTECTOR

15
J5362159
HOSE, Vent
Fitting Vehicle Options: 87
15
J5363049
HOSE, Vent
- Fitting Vehicle Options: 85
15
J5363316
HOSE, Vent
- 1982
- Fitting Vehicle Options: 88
15
J5364197
HOSE, Vent
- 1983-86
- Fitting Vehicle Options: 88

15
J5464900
LABEL, Diesel Fuel, EXPORT

16
J5363877
TUBE, Fuel Filler
1981: EXPORT, Diesel
16
J5363878
TUBE, Fuel Filler
- 1981: CANADA
  1981: EXPORT, Australian Design Rules, Economic Commission of Europe, Non-Regulated Markets
  1982-83: CANADA
  1982-85: EXPORT, Australian Design Rules, Economic Commission of Europe, Non-Regulated Markets
  1982-85: Japan
  1982: CANADA
  1986: EXPORT, Economic Commission of Europe, Non-Regulated Markets
- Fitting Vehicle Options: 85,87, 87
16
J5363879
TUBE, Fuel Filler
- 1981: US
  1982-83: US
- Fitting Vehicle Options: 85,87
16
J5364176
TUBE, Fuel Filler
- 1982-83: US
- Fitting Vehicle Options: 88
16
J5364185
TUBE, Fuel Filler
- 1982-83: CANADA
  1982-85: EXPORT, Australian Design Rules, Economic Commission of Europe, Non-Regulated Markets
  1986: EXPORT, Economic Commission of Europe, Non-Regulated Markets
- Fitting Vehicle Options: 88
16
J5364760
TUBE, Fuel Filler
- 1984-86: US, CANADA
- Fitting Vehicle Options: 87
$0.00
16
J5364761
TUBE, Fuel Filler
- 1984-86: US, CANADA
- Fitting Vehicle Options: 88

17
J5357922
HOSE, Vent
Fitting Vehicle Options: 85
17
J5357971
HOSE, Vent
- Fitting Vehicle Options: 87
17
J5362774
HOSE, Vent
- 1981-82
- Fitting Vehicle Options: 88
17
J5364195
HOSE, Vent
- 1983-86
- Fitting Vehicle Options: 88

17
J5463803
PROTECTOR

18
J0934197
CAP, Fuel Filler
1981-82: EXPORT (Locking)
18
J5350897
CAP, Fuel Filler
- EXPORT, Non-Vented (Locking)
18
J5356793
CAP, Fuel Filler
- EXPORT, Vented (Non-Locking)
18
J5358207
CAP, Fuel Filler

18
J5357927
HOSE, Filler
Fitting Vehicle Options: 85
18
J5357970
HOSE, Filler
- Fitting Vehicle Options: 87
18
J5362773
HOSE, Filler
- 1981-82
- Fitting Vehicle Options: 88
18
J5364196
HOSE, Filler
- 1983-86
- Fitting Vehicle Options: 88

19
J0934197
CAP, Fuel Filler
1981-82: EXPORT (Locking)
19
J5350897
CAP, Fuel Filler
- EXPORT, Non-Vented (Locking)
19
J5356793
CAP, Fuel Filler
- EXPORT, Vented (Non-Locking)
19
J5358207
CAP, Fuel Filler
- US, Non-Vented (Non-Locking)

19
J8120054
SCREW
- Require Quantity: 6

20
J4005817
SCREW
- Require Quantity: 3

21
J5464900
LABEL, Diesel Fuel, EXPORT

21
J8120054
SCREW
- Require Quantity: 6

22

J4005819
BOLT
22
J0180078
BOLT
- Hex, 5/16"-18x3/4"
22
J0273773
BOLT
- Flange, 3/8"-16x3/4"
- Require Quantity: 2

22
J4004077
SCREW

23
J0180078
BOLT

23
J4001457
NUT
Lock, 5/16"-18x.26"
23
J4001702
NUT
- Push, 5/16"x.156x.63"
23
J4005142
NUT
- Flange, 3/8"-18x.40"
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: J4007177
$7.15 $4.91
1
Add To Cart

24
J0273773
BOLT
- Require Quantity: 3

25
J4005142
NUT, Flange
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: J4007177
$7.15 $4.91
1
Add To Cart

26
J4003587
NUT
- Replaced By: 152472
$8.55 $7.01
1
Add To Cart

27
J4001457
NUT

28
J4001702
NUT, Push
- Require Quantity: 3

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Wrangler parts. Parts like Fuel Tank are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
