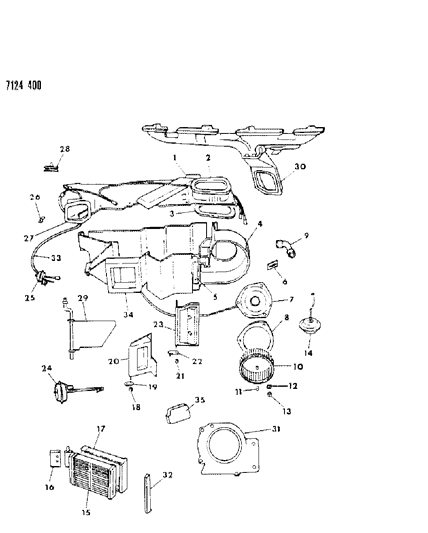

Diagram (1 of 1): HEATER AND AIR CONDITIONING HEATER UNIT P BODY P,D-22,44 H BODY D,C,-44

1987 Chrysler LeBaron Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3849369
COVER, Heater Evaporator Housing

2
3847605
SEAL, A/C. Heater Evaporator Cover To Plenum

3
3847720
SEAL, Heater Evaporator Housing Mounting Center

4
3848418
HOUSING, w/Stud Package Heater Evaporator Scroll

5
3848238
BRACE, Heater Unit Mounting to Plenum Support

6
3849235
RESISTOR, Heater Blower Motor

7
3849575
MOTOR, Heater Blower

8
3847476
SEAL, Heater Blower Motor Mounting To Scroll

9
5210066
TUBE, Heater Blower Motor

10
5210234
WHEEL, Heater Blower Motor

11

2837680
CLAMP, Heater Blower Wheel Motor Mounting
$2.35 $1.31
1
Add To Cart

12
6500376
NUT, Heater Blower Motor J Type

13
6031694
SCREW, w/Washer Heater Blower Motor Mounting
$3.20 $2.19
1
Add To Cart

14
5210111
ACTUATOR, Heater Recirculate & Fresh Air door

15
3847943
CORE, Heater
$245.68 $193.07
1
Add To Cart

16
5210109
SEAL, Heater Unit To Dash At Core Tubes

17
3848093
SEAL, Heater Core

18
219462
NUT, Door Shaft Lever

19
3847858
LEVER, Mode Door Shaft

20
3847848
DOOR, w/Seal Heater Mode

21
219462
NUT, Door Shaft Lever

22
5210113
LEVER, Heater Blend Air Door

23
5210395
DOOR, Heater Blend Door
$66.60 $52.33
1
Add To Cart

24
3847849
ACTUATOR, Heater Mode Door

25
6031147
ACTUATOR, Heater Defroster Door
NUT, Defroster Actuator Rod Retaining
$1.55 $1.02
1
Add To Cart
25
5210068
ACTUATOR, Heater Defroster Door
- ACTUATOR, Heater Defroster Door

26
2521336
CLIP, Heater Evaporator Housing Cover Mounting
- Require Quantity: 2

27
3847606
SEAL, Heater Unit to Defroster Duct

28
6015778
CLIP, Heater Vacuum Hose Retaining
- Require Quantity: 2

29
5210093
DOOR and SHAFT, Heater Defroster

30
3848486
DUCT, Heater Defroster
DUCT, Heater Defroster
Fitting Vehicle Options: H
30
3849174
DUCT, Heater Defroster
- Fitting Vehicle Options: P

31
3848991
HOUSING, Heater Inlet

32
3847681
SEAL, Heater Core End

33
3849127
HARNESS, Heater Vacuum

34
5210336
SEAL, Heater Center Air Distribution Duct

35
3848880
SEAL, Heater to Dash (Evap Hole)

3847721
SEAL, Heater Housing Cover, Left

3847720
SEAL, Heater Housing Cover, Right

3847853
SPRING, Heater Mode Door

3441609
VALVE, Heater Vacuum Hose Check

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Chrysler LeBaron GTS parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
