Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING S BODY

1987 Dodge Caravan Instrument Panel Wiring Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4304001
MODULE, Fuse Block
BRACKET, Module Mtg.
1
4304499
MODULE, Fuse Block
- MODULE, Fuse Block

2
4124258
TERMINAL, Buss Bar
1 Way
2
4124752
TERMINAL, Buss Bar
- 3 Way

3
4221730
BUZZER, Key, H/Lamp and Seat Belt Warning

4
4312664
CONTROL, Chimes

5
2932877

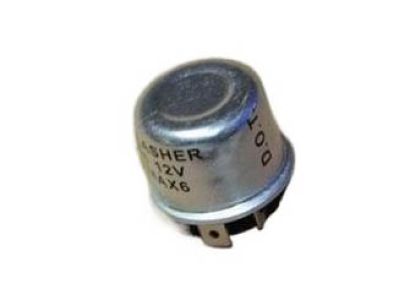

FLASHER, Hazard Warning
FLASHER, Hazard Warning
5
3837161
FLASHER, Hazard Warning
- Two Lamp (FLASHER, Turn Signal)
5
3837162
FLASHER, Hazard Warning
- Three Lamp (FLASHER, Turn Signal)

6
4186379
BREAKER, Circuit
30 Amp.
6
4331929
BREAKER, Circuit
- 6 Amp.

7
4304869
WIRING HARNESS, Instrument Panel
Spotlight, Lower (WIRING, Instrument Panel)
7
4304870
WIRING HARNESS, Instrument Panel
- Spotlight, Upper (WIRING, Instrument Panel)
7
4400151
WIRING HARNESS, Instrument Panel
- w/o E.F.I.
7
4400152
WIRING HARNESS, Instrument Panel
- w/E.F.I.
7
4400154
WIRING HARNESS, Instrument Panel
- Cluster (WIRING, Instrument Panel)
7
4400586
WIRING HARNESS, Instrument Panel
- Mono Speaker (WIRING, Instrument Panel)
7
4400587
WIRING HARNESS, Instrument Panel
- Stereo Speaker (WIRING, Instrument Panel)

8
4026093
CABLE, Fusible Link
No. 12 Black
8
4026094
CABLE, Fusible Link
- No. 14 Red
8
4026095
CABLE, Fusible Link
- No. 16 Blue
8
4026096
CABLE, Fusible Link
- No. 18 Grey
8
4364877
CABLE, Fusible Link
- No. 10 Green
8
4364878
CABLE, Fusible Link
- No. 20 Orange

9
6101131
FUSES
3 Amp.
9
6101132
FUSES
- 4 Amp.
9
6101133
FUSES
- 5 Amp.
9
6101135
FUSES
- 10 Amp.
9
6101137
FUSES
- 20 Amp.
9
6101138
FUSES
- 25 Amp.
9
6101139
FUSES
- 30 Amp.
