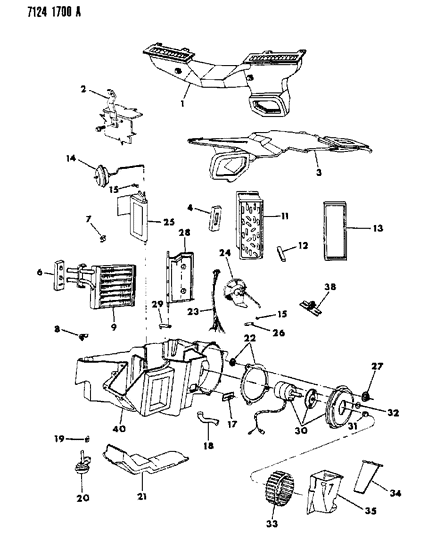

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONING AND HEATER UNIT L BODY
1987 Dodge Charger Air Conditioning & Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    3848832
    DUCT, w/Adapter, A/C., Defroster
  • 2
    5210051
    BRACE, A/C. Unit Mounting To Plenum
  • 3
    5210428
    COVER, A/C. Evaporator Recirc. Housing
  • 4
    3849066
    SEAL, A/C. Unit To Dash at Coil Header
  • 6
    Dodge 5210109
    5210109
    SEAL, A/C. Unit To Dash at Core Tubes
  • 7
    2521336
    CLIP, A/C. Evaporator Housing Cover Mounting
    • Require Quantity: 2
  • 8
    3848827
    TUBE, A/C. Unit Drain
  • 11
    4339422
    COIL, A/C. Evaporator Complete
  • 12
    5210073
    SEAL, A/C. Evaporator Coil To Housing Bottom
    • Require Quantity: 2
  • 13
    3847116
    SEAL, A/C. Evaporator Coil Header End
  • 15
    6008145
    CLIP, A/C. Act. Shaft Return Fresh Air Door
  • 17
    3848995
    RESISTOR, A/C. Blower Motor
  • 21
    5210055
    DUCT, A/C., Heater Distribution
  • 23
    3848311
    HOSE and CONNECTOR, A/C Vacuum
  • 24
    5210110
    ACTUATOR, A/C. Mode Door
  • 25
    5210099
    DOOR, w/Seal, A/C. Mode
  • 26
    5210112
    LEVER, A/C. Mode Door
  • 27
    6006065
    WASHER, A/C. Motor Mounting
    • Require Quantity: 6
  • 30
    4419317
    MOTOR, A/C. Blower
  • 32
    6500376
    NUT, A/C. Blower Motor U-Type
  • 33
    5210234
    WHEEL, A/C. Blower Motor
  • 34
    5210056
    DOOR, w/Seal, A/C. Recirc., Fresh Air
  • 35
    5210070
    HOUSING, A/C. Recirc.
  • 38
    6015778
    CLIP, A/C. Vacuum Hose Retaining
    • Require Quantity: 2
  • 40
    3848418
    HOUSING and STUD, A/C. Evaporator w/Scroll
  • 5210282
    ADAPTER, A/C., Defroster Duct
  • Dodge 219462
    219462
    NUT, w/Washer, A/C., Blend Door Lever Mtg.
  • 3847721
    SEAL, A/C. Evaporator Housing, Left
  • 3847720
    SEAL, A/C. Evaporator Housing, Right
  • Dodge 3848093
    3848093
    SEAL, A/C. Heater Core To Housing
  • 3848933
    SEAL, A/C. Unit To Plenum F/Air Inlet
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Charger parts. Parts like Air Conditioning & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
