9 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

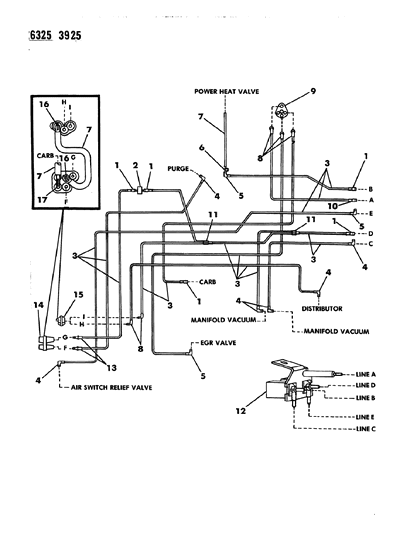

  • 1.EMISSION SYSTEMS EGR HOSE HARNESS 225 ENGINE - CALIF. D1,2,5
    1987 Dodge D150 EGR Hose Harness Diagram 1
  • 2.EMISSION SYSTEMS EGR HOSE HARNESS 225 ENGINE - FEDERAL AND HIGH ALT. D1,2,5
    1987 Dodge D150 EGR Hose Harness Diagram 2
  • 3.EMISSION SYSTEMS EGR HOSE HARNESS 318 ENGINE - CALIF. - AUTO. TRANS. D BODY
    1987 Dodge D150 EGR Hose Harness Diagram 3
  • 4.EMISSION SYSTEMS EGR HOSE HARNESS 318 ENGINE - CALIF. W/MAN. TRANS. AND HIGH ALT. D BODY - AFTER 10-24-85
    1987 Dodge D150 EGR Hose Harness Diagram 4
  • 5.EMISSION SYSTEMS EGR HOSE HARNESS 318 ENGINE - FEDERAL - AUTO. TRANS. D BODY
    1987 Dodge D150 EGR Hose Harness Diagram 5
  • 6.EMISSION SYSTEMS EGR HOSE HARNESS 318 ENGINE - FEDERAL AND CANADA - MAN. TRANS. D BODY
    1987 Dodge D150 EGR Hose Harness Diagram 6
  • 7.EMISSION SYSTEMS EGR HOSE HARNESS 360 ENGINE - CALIF. - 1987
    1987 Dodge D150 EGR Hose Harness Diagram 7
  • 8.EMISSION SYSTEMS EGR HOSE HARNESS 360 ENGINE - FEDERAL AND HIGH ALT. D BODY - 1987
    1987 Dodge D150 EGR Hose Harness Diagram 8
  • 9.EMISSION SYSTEMS EGR HOSE HARNESS 360 ENGINE OVER 8500 LBS. GVW B,D,T MODEL - 1987
    1987 Dodge D150 EGR Hose Harness Diagram 9
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 5
  • 1
    4275580
    CONNECTOR, Vacuum Amplifier
  • 1
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 5
  • 1
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 4
  • 1
    4213797
    ELBOW .15M - 3/16
  • 1
    4289087
    SOLENOID, Dual Vacuum
  • 2
    4179196
    CONNECTOR .15F - 1/8
    • Require Quantity: 2
  • 2
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 3
  • 2
    4213797
    ELBOW .15M - 3/16
    • Require Quantity: 2
  • 2
    4300273
    VALVE, Vacuum Delay
    • VALVE, Vacuum Delay
  • 2
    4306280
    VALVE, Vacuum Delay
    • VALVE, Vacuum Delay
    • Require Quantity: 2
  • 2
    4324334
    VALVE, Vacuum Delay
    • VALVE, Vacuum Delay
  • 3
    4179196
    CONNECTOR .15F - 1/8
    • Require Quantity: 2
  • 3
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 3
  • 3
    4213798
    ELBOW .15M - 3/16
  • 3
    4300958
    TEE .15F x 3/16M x .15F
  • 4
    4213766
    ELBOW .15F - 1/8
    • Require Quantity: 2
  • 4
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 4
  • 4
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 6
  • 4
    4289087
    SOLENOID, Dual Vacuum
  • 5
    4179193
    CONNECTOR
    • Require Quantity: 2
  • 5
    4179391
    CONNECTOR .15F - 3/16
    • CONNECTOR .15F - 3/16
    • Require Quantity: 4
  • 5
    4179391
    CONNECTOR .15F - 3/16
    • CONNECTOR .15F - 3/16
  • 5
    4213766
    ELBOW .15F - 1/8
    • ELBOW .15F - 1/8
    • Require Quantity: 2
  • 5
    4213766
    ELBOW .15F - 1/8
    • ELBOW .15F - 1/8
    • Require Quantity: 3
  • 5
    4213774
    ELBOW .15F - 3/16
    • Require Quantity: 3
  • 5
    4289087
    SOLENOID, Dual Vacuum
  • 6
    3870649
    BLEED, Filtered Air
  • 6
    4179196
    CONNECTOR .15F - 1/8
  • 6
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 2
  • 6
    4213774
    ELBOW .15F - 3/16
    • ELBOW .15F - 3/16
    • Require Quantity: 4
  • 6
    4213797
    ELBOW .15M - 3/16
    • Require Quantity: 5
  • 6
    4105167
    HOSE, Rubber 3/16" (serv. in 50 ft. roll)
  • 7
    4268687
    CONNECTOR .15M - 3/16
    • Require Quantity: 5
  • 7
    4275580
    CONNECTOR, Vacuum Amplifier
  • 7
    4213766
    ELBOW .15F - 1/8
    • ELBOW .15F - 1/8
    • Require Quantity: 3
  • 7
    4213766
    ELBOW .15F - 1/8
    • ELBOW .15F - 1/8
  • 7
    4105167
    HOSE, Rubber 3/16" (serv. in 50 ft. roll)
  • 8
    4179196
    CONNECTOR .15F - 1/8
  • 8
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 5
  • 8
    4275580
    CONNECTOR, Vacuum Amplifier
  • 8
    4213774
    ELBOW .15F - 3/16
    • Require Quantity: 2
  • 8
    4213797
    ELBOW .15M - 3/16
    • ELBOW .15M - 3/16
    • Require Quantity: 5
  • 8
    4213797
    ELBOW .15M - 3/16
    • ELBOW .15M - 3/16
    • Require Quantity: 2
  • 8
    4105167
    HOSE, Rubber 3/16" (serv. in 50 ft. roll)
  • 8
    4179191
    TEE
  • 9
    4179391
    CONNECTOR .15F - 3/16
    • Require Quantity: 3
  • 9
    4268681
    CONNECTOR .15M - 1/8
    • Require Quantity: 2
  • 9
    4268687
    CONNECTOR .15M - 3/16
    • Require Quantity: 2
  • 9
    4275580
    CONNECTOR, Vacuum Amplifier
  • 9
    4105167
    HOSE, Rubber 3/16" (serv. in 50 ft. roll)
  • 9
    4300958
    TEE
  • 9
    4167046
    VALVE, Vacuum Delay
  • 10
    4179193
    CONNECTOR
    • Require Quantity: 2
  • 10
    4324069
    CONNECTOR
  • 10
    4179196
    CONNECTOR .15F - 1/8
  • 10
    4268687
    CONNECTOR .15M - 3/16
  • 10
    4179093
    CONNECTOR, CVSCC Switch
  • 10
    4213766
    ELBOW .15F - 1/8
  • 10
    4213774
    ELBOW .15F - 3/16
    • Require Quantity: 2
  • 11
    4105196
    CONNECTOR
  • 11
    4179193
    CONNECTOR
    • Require Quantity: 2
  • 11
    4179193
    CONNECTOR .15F x .15F x .15F
    • Require Quantity: 2
  • 11
    4267681
    CONNECTOR .15M - 1/8
    • Require Quantity: 2
  • 11
    4268687
    CONNECTOR .15M - 3/16
    • CONNECTOR .15M - 3/16
    • Require Quantity: 2
  • 11
    4268687
    CONNECTOR .15M - 3/16
    • CONNECTOR .15M - 3/16
    • Require Quantity: 4
  • 11
    4213789
    ELBOW .15M - 1/8
  • 11
    4167046
    VALVE, Vacuum Delay
  • 12
    4324069
    CONNECTOR
  • 12
    4268681
    CONNECTOR .15M - 1/8
    • Require Quantity: 2
  • 12
    4268687
    CONNECTOR .15M - 3/16
    • Require Quantity: 2
  • 12
    4289817
    SOLENOID, Dual Vacuum
  • 13
    4105196
    CONNECTOR
  • 13
    4268681
    CONNECTOR .15M - 1/8
    • Require Quantity: 2
  • 13
    4268687
    CONNECTOR .15M - 3/16
    • Require Quantity: 2
  • 13
    4179093
    CONNECTOR, CCEV
  • 13
    4179093
    CONNECTOR, CVSCC Switch
  • 13
    4095987
    ELBOW
  • 14
    4324069
    CONNECTOR
  • 14
    4179093
    CONNECTOR, CVSCC Switch
  • 15
    4105196
    CONNECTOR
  • 17
    4095987
    ELBOW
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge D150 parts. Parts like EGR Hose Harness are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
